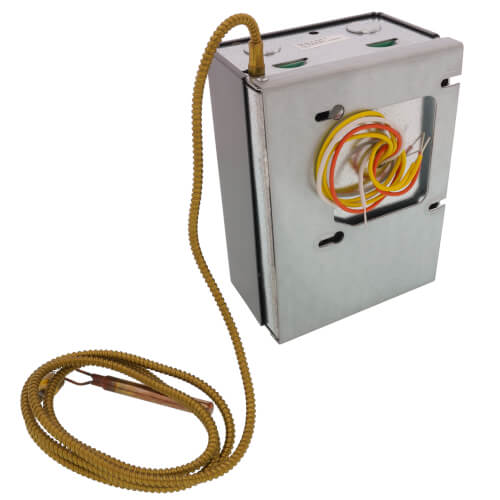

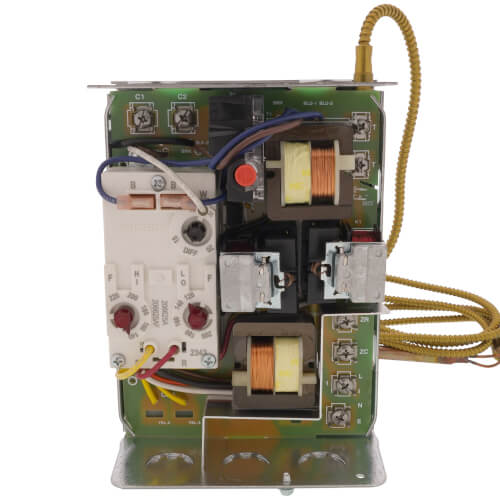

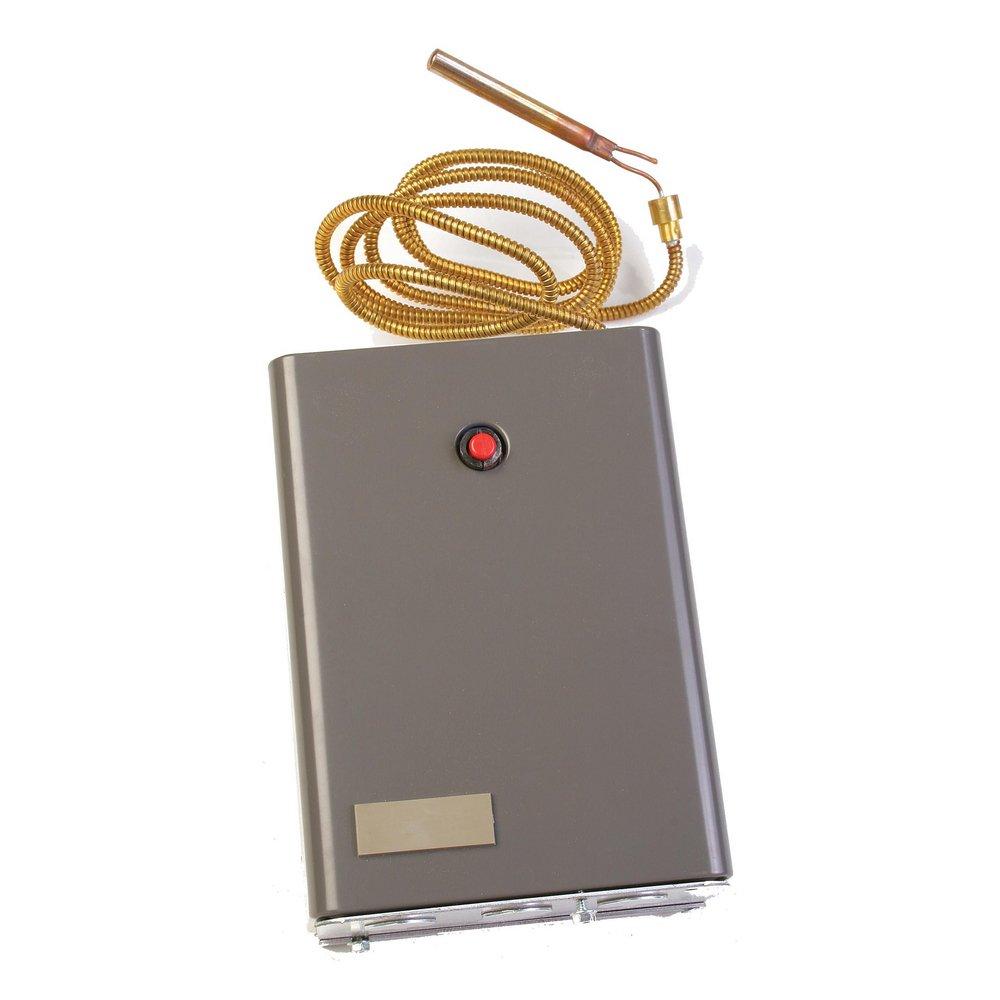

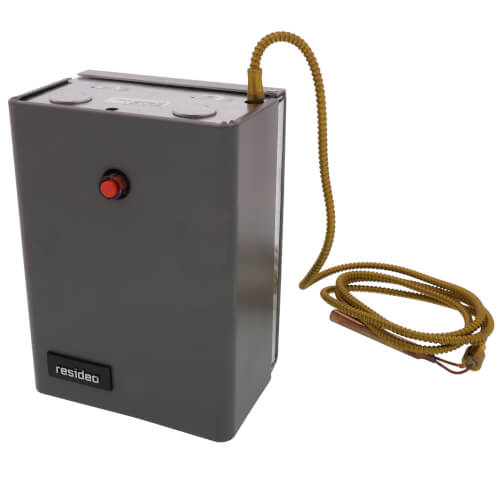

Resideo R8182H1070 Protective Relay 120 V

Product Description

The Resideo R8182H1070 Protective Relay is a critical component for oil-fired hydronic heating systems, providing both high and low limit control. Designed for use in intermittent ignition applications, this relay is equipped to handle various zone control scenarios with zone valves and features terminals for circulator zone control.

• High limit and low limit/circulator control
• 45-second attempt to restart after flame failure
• Mounts on a 4x4 inch junction box

Product Highlights

This protective relay is suitable for immersion types and oil burner primary control. It includes a 5-foot armored capillary with a remote sensor and requires a cadmium sulfide flame detector and a 24 Vac thermostat.

Product Information

Standard Information

• Capable of Zone Control: With zone valves
• Circulator Zone Control: With ZC and ZR terminals on R8182D, E, H, J

Technical Specifications

• Voltage: 120 Vac
• Frequency: 60 Hz
• Maximum Power Consumption: 9 W
• Timing Safety Switch: 45 sec
• Electrical Rating: Burner 4.4 A @ 120 Vac
• Maximum Safe Operating Pressure: 200 psi on immersion well; 100 psi direct immersion
• Operating Range, Low Limit: 110°F to 220°F
• Operating Range, High Limit: 130°F to 240°F
