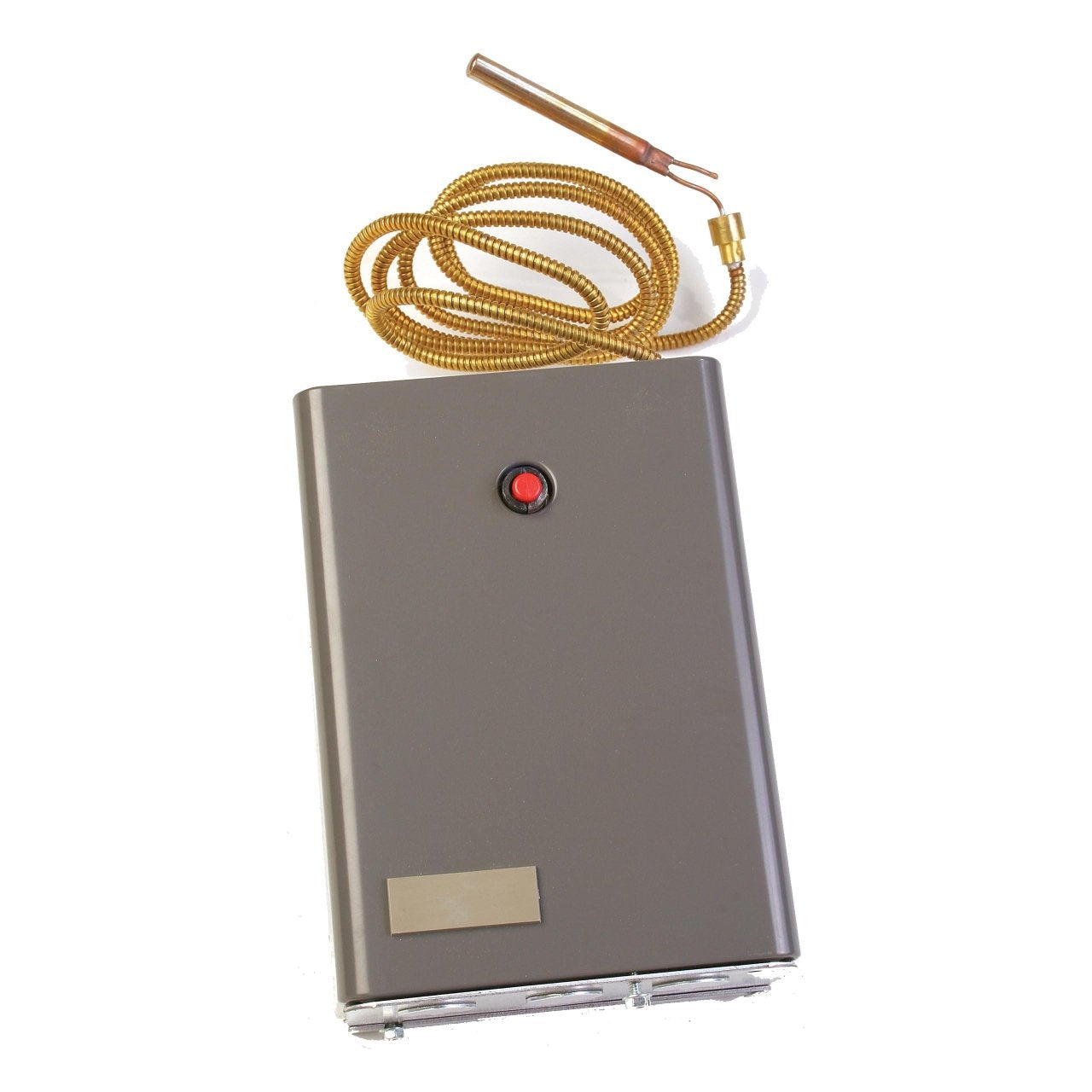

Resideo R8182D1079/U Aquastat Protector Triple High or Low Limit for Oil Fired Hydronic System 120 VAC Vertical

Product Description

The RESIDEO R8182D1079/U Aquastat Protector is an industrial automation supply for oil-fired hydronic systems. It offers triple high or low limit functionality for precise temperature control, operating within a 130-240 degrees Fahrenheit range. The device features a fixed high limit at 10F and an adjustable low limit/circulator from 10-25F. Its vertical design facilitates easy installation, making it suitable for manufacturing plants, commercial buildings, and HVAC systems.

• Adjustable low limit/circulator (10-25F) for temperature regulation.
• Vertical design for easy installation and integration.
• Fixed high limit (10F) for precise overheating protection.

Product Highlights

Triple high or low limit Aquastat Protector for oil-fired hydronic systems, ensuring precise temperature control from 130-240 degrees Fahrenheit.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: R8182D1079/U

Technical Specifications

• MPN: R8182D1079/U
• Brand: RESIDEO
• Type: Triple Aquastat Relay and Oil Burner Primary Control
• Color: Black
• Application: High or Low Limit Control
• Operating Relative Humidity (Max): 95% Non-condensing
• Operating Relative Humidity (Min): 0% Non-condensing
• Sensor Type: Remote Bulb
• Low Limit Set point Temperature (Min): 110 °F, 43 °C
• Low Limit Set point Temperature (Max): 220 °F, 104 °C
• High Limit Set point Temperature (Min): 130 °F, 54 °C
• High Limit Set point Temperature (Max): 240 °F, 116 °C
• Input Voltage: 120 VAC
• Operating Temperature Range: 130 to 240 deg F
• Differential: 10 deg F
• Mounting Type: Vertical Mount
• Insulation Depth: 1-1/2 in
