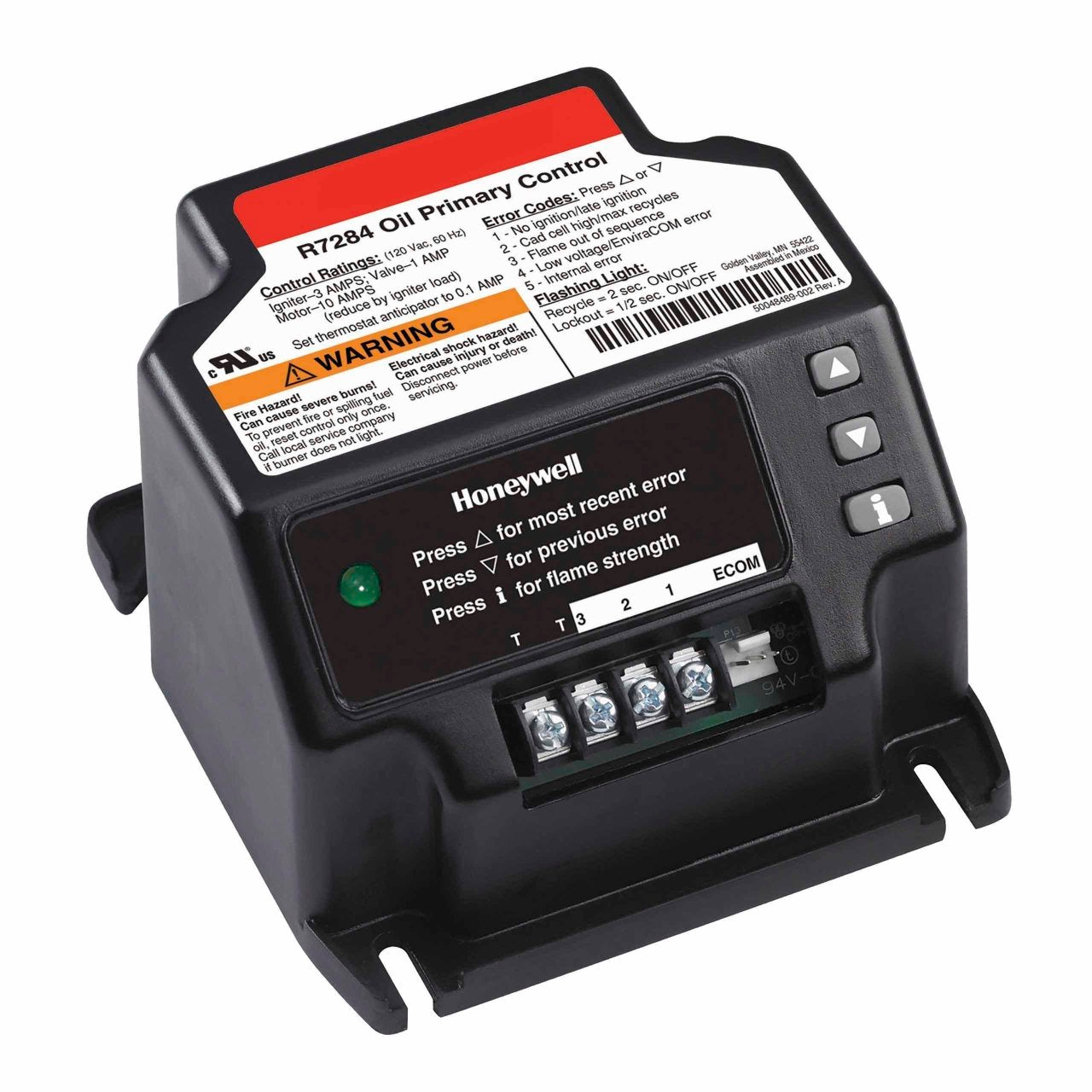

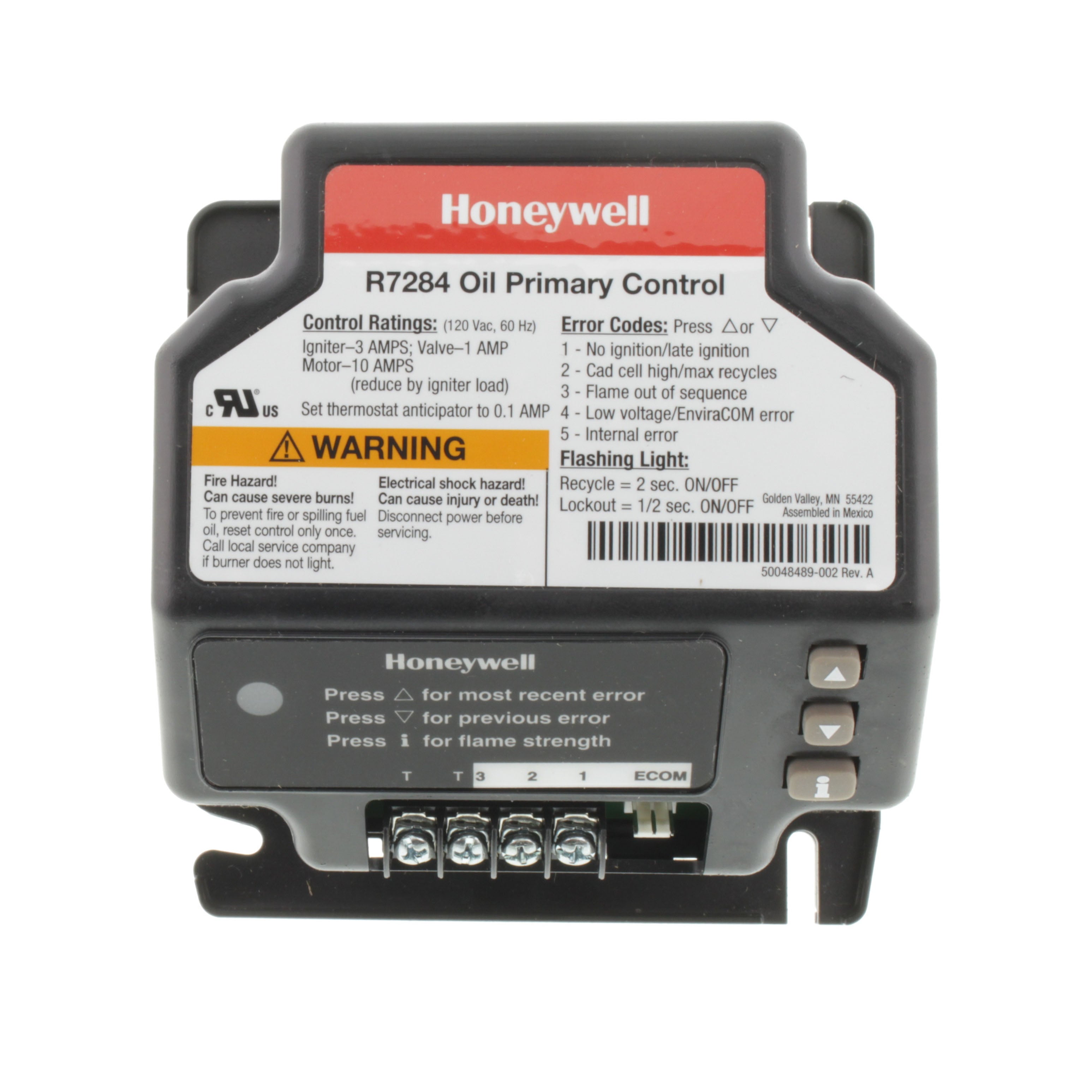

Resideo R7284B1024 Electronic Oil Primary W/Light 120 VAC Replaces R7184B1032

Product Description

The RESIDEO R7284B1024 is an electronic oil primary control designed for oil burner applications in boilers, forced air furnaces, and water heaters. This line voltage, safety-rated control features a 15-second lockout timing and interrupted ignition. It includes a status indicator light and integrates with EnviraCOM communications systems for remote monitoring. The unit offers system quality tracking, error history, and a baseline feature for diagnostics.

• System quality tracking via memory data and error history capability.
• Baseline feature for cycle-trend reading and troubleshooting.
• EnviraCOM communications system integration for remote monitoring.

Product Highlights

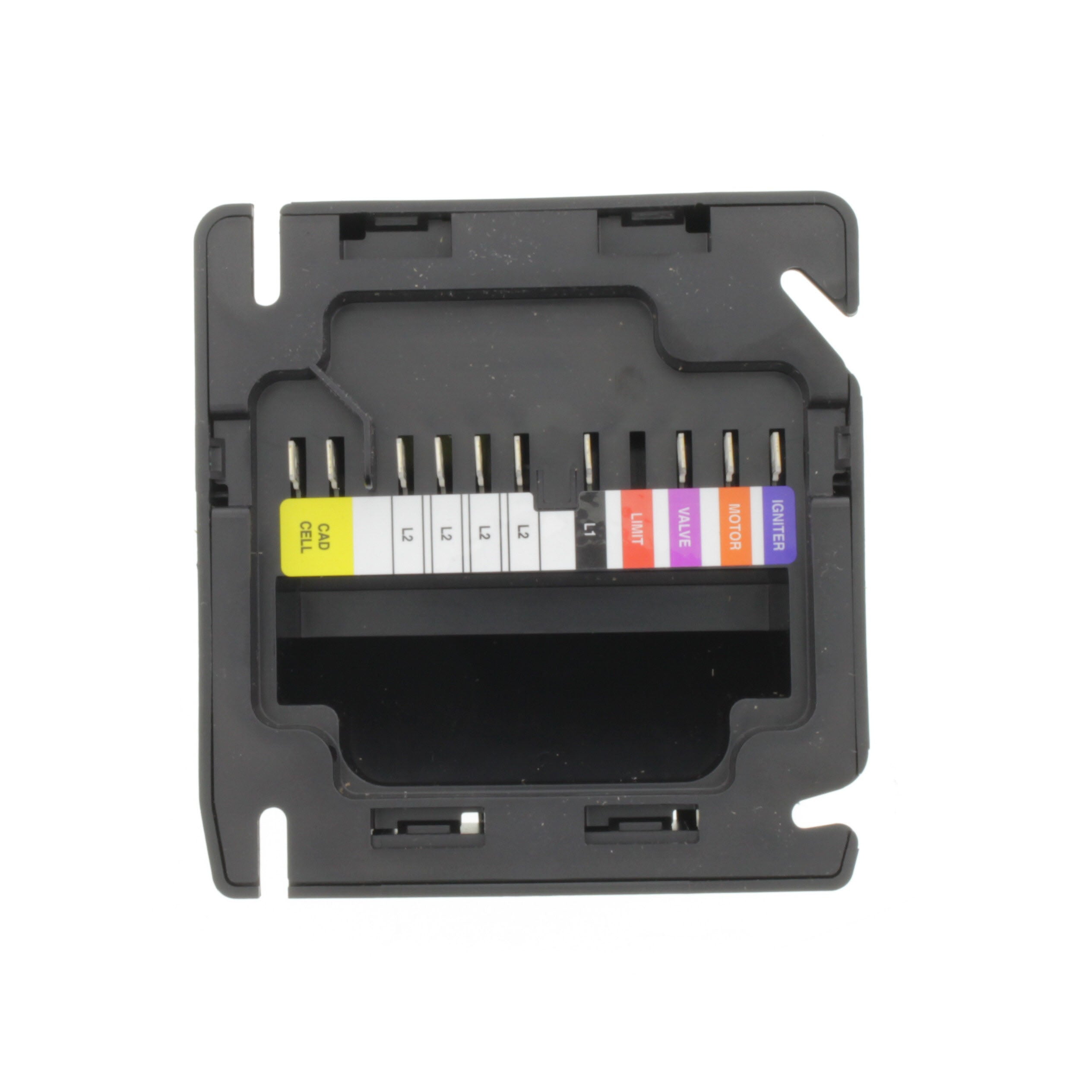

This electronic oil primary control offers advanced diagnostics, remote monitoring capabilities, and a recessed wiring pocket for versatile installation.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: R7284B1024

Technical Specifications

• Lockout Time: 15 Seconds
• Input Voltage: 120 VAC
• Ignition Type: Interrupted
• Display Type: Using LED only
• Operating Temperature: -40°F to 147°F
• Replaces Models: R7184B1032, R7184B1024
• Control Type: Universal Electronic
• Amperage: 3.7 to 7.4 A
• Mounting Type: Junction Box
