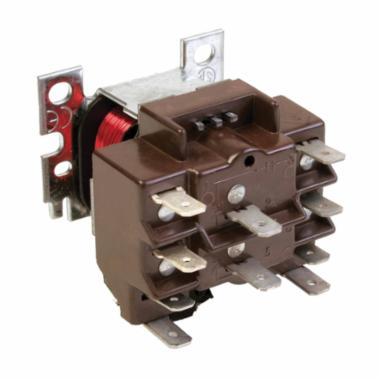

RESIDEO R4222B1082/U General Purpose Relay 120 V Coil 12 A SPDT

Product Description

The RESIDEO R4222B1082/U is a general-purpose relay featuring a twelve amp current rating and operates on a one hundred twenty volt coil. It utilizes a single pole double throw (SPDT) design which is suitable for various applications. This relay measures two and five thirty-seconds inches in overall width, two and three-eighths inches in overall depth, and one and seven-eighths inches in overall height.

• Molded terminal numbers and circuit diagram facilitate easy wiring identification.
• Designed to operate cooler with an untapped coil.
• Laminated magnet construction enhances efficiency.

Product Highlights

This relay is engineered for easy installation and replacement of competitive models, specifically compatible with Steveco 90-340 and Mars 90340.

Product Information

Standard Information

• Brand: RESIDEO
• MPN: R4222B1082/U

Technical Specifications

• Amperage Rating: 12 A
• Coil Voltage: 120 V
• Contact Form: SPDT
• Overall Depth: 2-3/8 in
• Overall Height: 1-7/8 in
• Overall Width: 2-5/32 in
