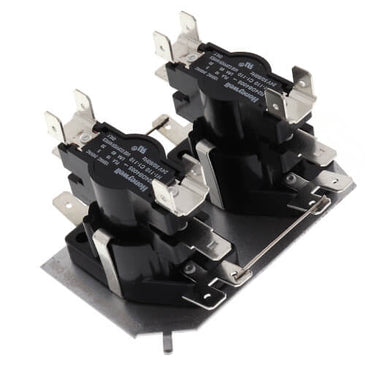

Resideo R24DB4005 heat sequencer 4 switch on & off 1-110 sec

Product Description

The Resideo R24DB4005 is an On/Off Delay Timer designed for precise control of electrical circuits, enabling process automation and improved operational efficiency. This solid-state PTC heater features adjustable delays from 1 to 110 seconds for both on and off timing, and is shock and vibration resistant. It mounts in any position and utilizes quick-connect terminals for easy installation in electric heat applications.

• Adjustable delay from 1 to 110 seconds for precise timing control.
• Supports both ON and OFF delay operation modes.
• Features solid-state PTC heater design, shock and vibration resistance.

Product Highlights

The Resideo R24DB4005 provides precise, flexible timing control for electrical circuits, enhancing automation and operational efficiency.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: R24DB4005

Technical Specifications

• Brand: Resideo
• MPN: R24DB4005
• Application: Electric Heat
• Certifications: UL Approved File: 237660
• Contact Rating: 25 A at 120 or 240 V, 12.5 Amps at 480 V
• Electrical Connection Size: 1/4 in
• Electrical Connection Type: Solder or screw type quick connect
• Timing Delay: 1 to 110 seconds (On-timing and Off-timing for four switches)
• Operating Temperature (Min): -40 °F (-40 °C)
• Operating Temperature (Max): 165 °F (73.8 °C)
