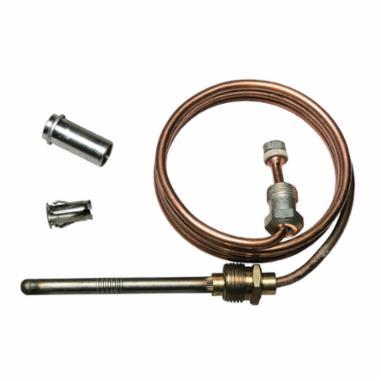

RESIDEO Q390A1046/U Thermocouple 1400 deg F

Brand: RESIDEO
SKU: Q390A1046/U
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$17.69
$17.69
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Resideo Q390A1046/U thermocouple is designed for use in standing pilot gas-fired heating systems. It senses the pilot flame, creating a voltage output that indicates the flame's presence. Its male nut connector ensures compatibility with Pilotstat safety control power units.

  • Temperature rating of 1400 degrees Fahrenheit
  • Produces 30 mV voltage for reliable performance
  • 24 inches lead length for flexible installation

Product Highlights

Durable thermocouple suitable for various heating systems, optimal for safe operation and easy monitoring.

Product Information

Standard Information

  • Brand: Resideo
  • Model: Q390A

Technical Specifications

  • Connection Size: 11/32-32
  • Connection Type: Male Nut
  • Lead Length: 24 inches
  • Open Circuit Output: 26 to 32 mV
  • Resistance: 0.02 Ohm
  • Temperature Rating: 1400 degrees Fahrenheit
  • Voltage Rating: 30 mV
