Resideo Q348U1009/U Universal Pilot Burner

Product Description

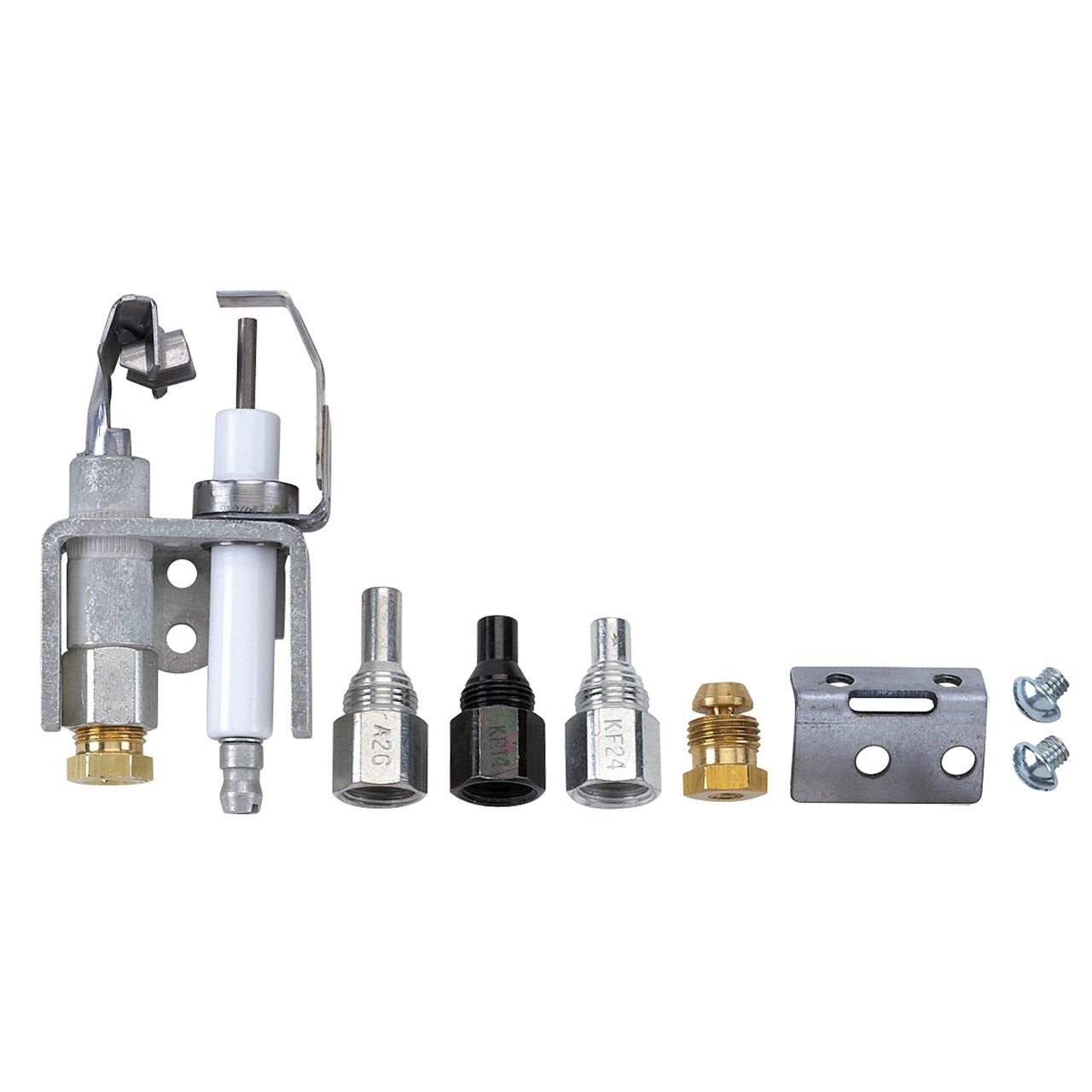

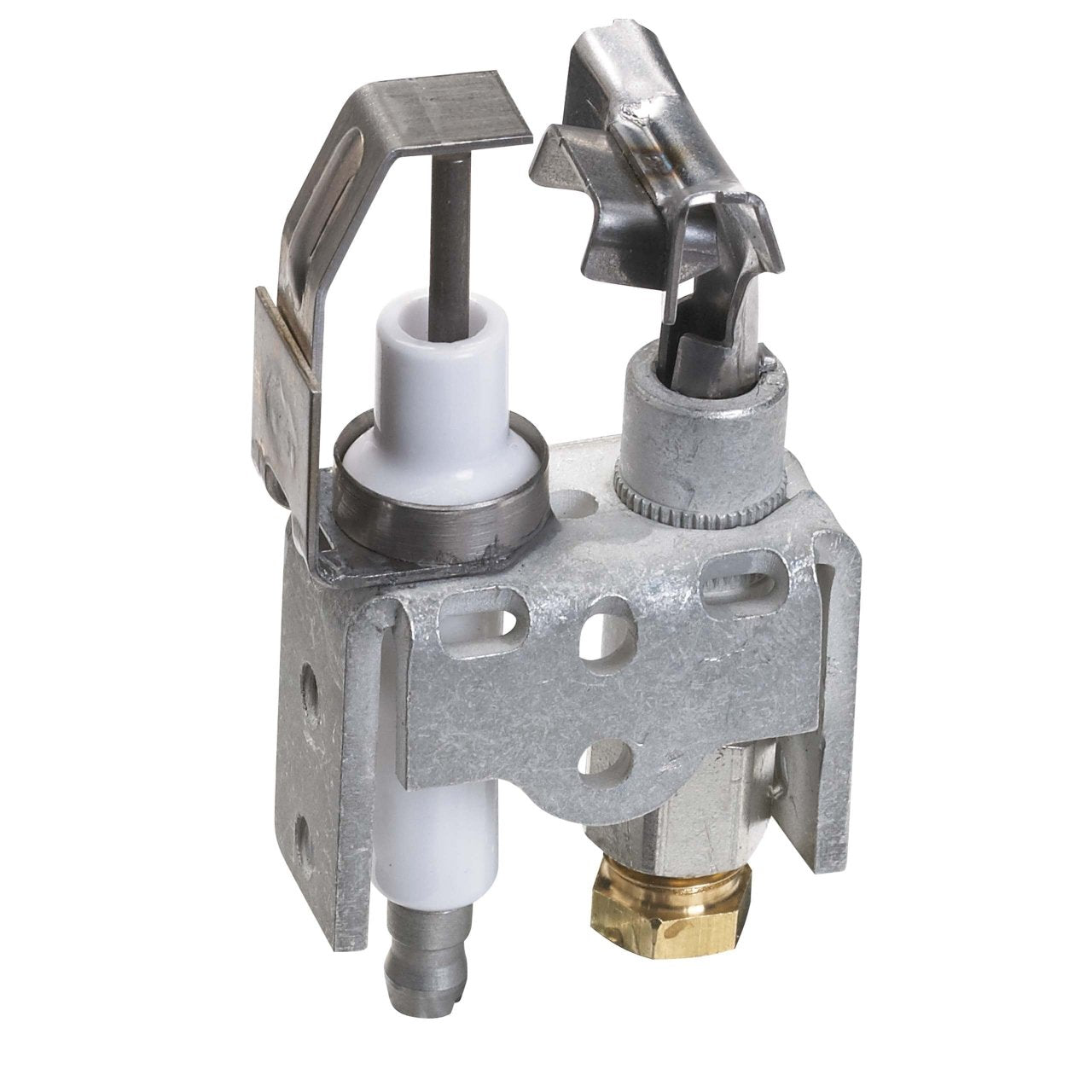

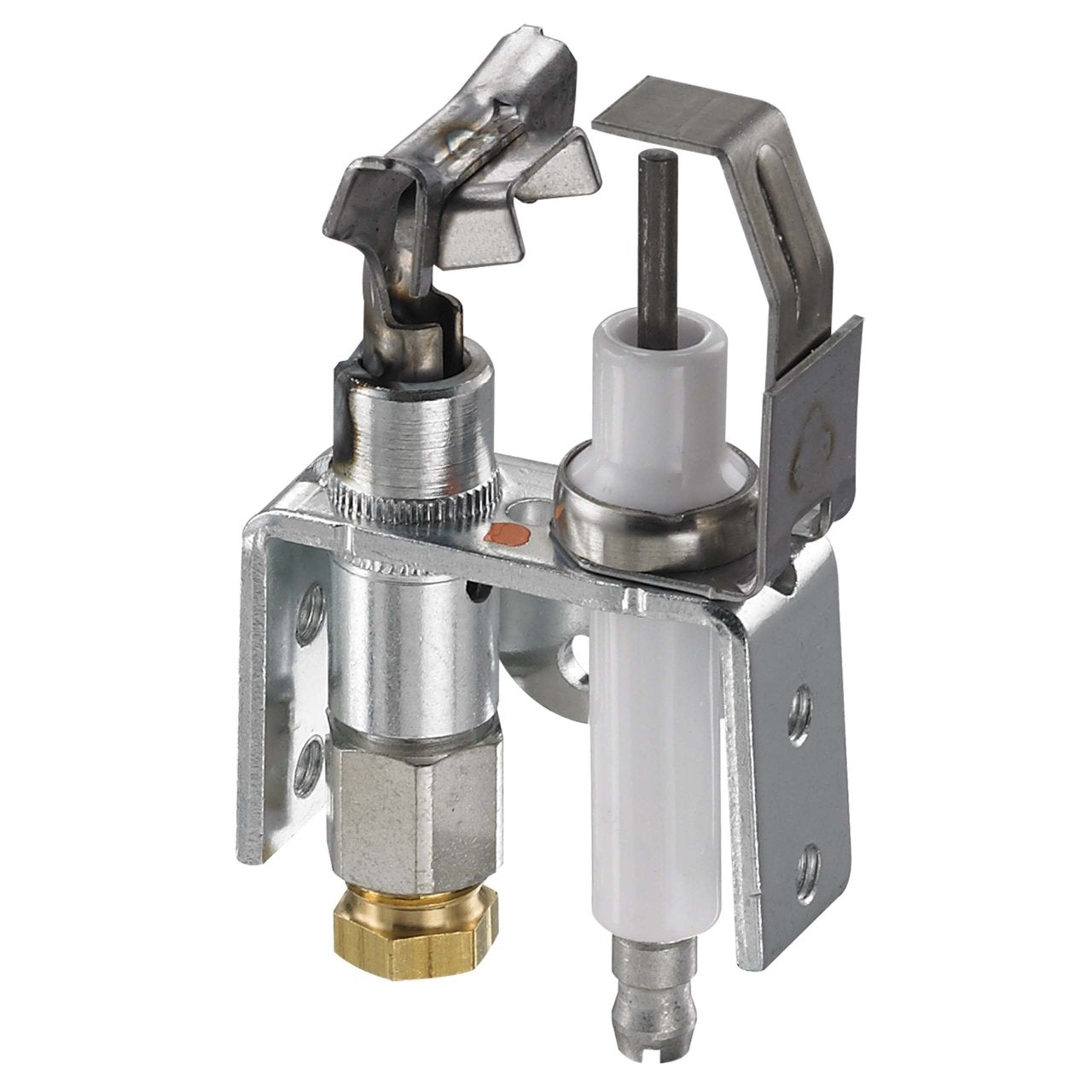

The RESIDEO Q348U1009/U is a universal pilot burner designed for reliable pilot flame ignition and sensing in intermittent pilot systems. This target type pilot burner features a combination spark igniter and flame sensor. It is compatible with gas-fired systems and includes orifices, batwing, and compression fittings for installation.

• Pilot burner with bracket
• Ceramic-insulated Kanthal flame rod/spark igniter and ground strap
• Quick and easy install

Product Highlights

The RESIDEO universal pilot burner ensures reliable ignition in intermittent pilot systems. It features a combination spark igniter and flame sensor for easy installation.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: Q348U1009/U

Technical Specifications

• Application: Universal Pilot Burner for Intermittent Pilot Applications
• Gas Type: Natural Gas, LPG
• Type of Fuel: Natural Gas, LPG
• Igniter-Sensor Rod: Single
• Aeration: Non-Primary
• Mounting Bracket Style: Type U
• Includes: NE22, KF24, A26, KR14 orifices, 1" batwing, 1/4 in. compression fittings, 1/8 in. compression fittings
• Compatible With: Gas-fired Systems
• Tip Direction: Dual Wing
• Tip Style: Batwing
• Compression Fitting Diameter: 1/4 in|1/8 in
