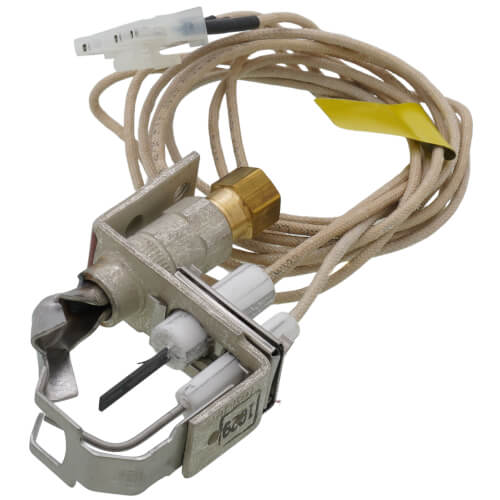

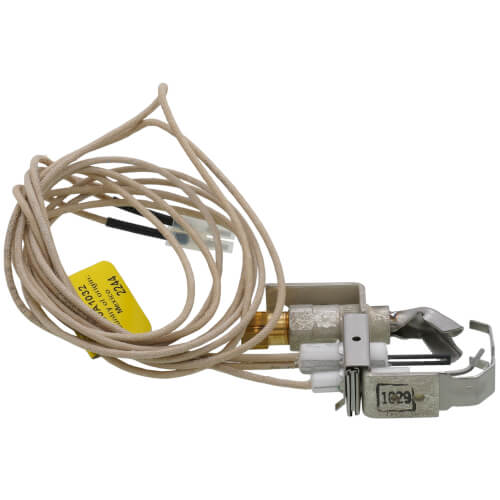

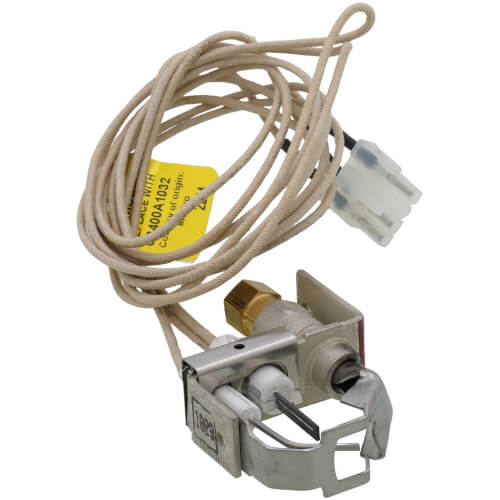

Resideo Q3450B1112 SmartValve Pilot Burner for LP Gas BCR-10 Orifice Left Tip Bracket Style B

Product Description

The Resideo Q3450B1112 SmartValve Pilot Burner is designed for LP gas applications, featuring advanced engineering for efficient and reliable operation in heating systems. Ideal for use with SmartValve systems, this component ensures a stable and optimal pilot flame ignition and sensing.

• Integral keyed plug for quick sensor and igniter connection
• Front or adjustable 20-degree flame patterns for versatile application
• Primary aeration for efficient gas-air mixture and combustion

Product Highlights

With the capacity to deliver 1000 BTUH and a durable design that contains a replaceable Igniter-Flame Rod Assembly (Q3400A), the Resideo Q3450B1112 is suitable for both industrial and residential settings. It is compatible with SV9500 and SV9600 SmartValve systems and features a variety of mounting brackets and target styles.

Product Information

Standard Information

• Brand: Resideo
• Used With: SV9500, SV9600

Technical Specifications

• Type of Gas: LP
• Orifice: BCR-10 (0.010 inches)
• Tip Style: Left
• Compression Fitting Size: 1/4 inch
• Compression Fitting Length: 1 inch
• Pilot BTUH: 1000
• Ignition Wire Length: 30 inches
• Mounting: Bracket Style B
