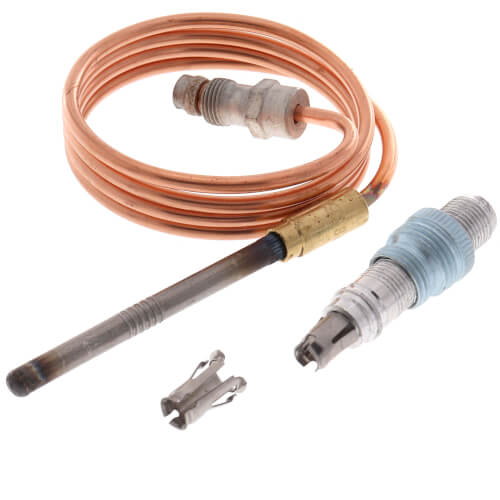

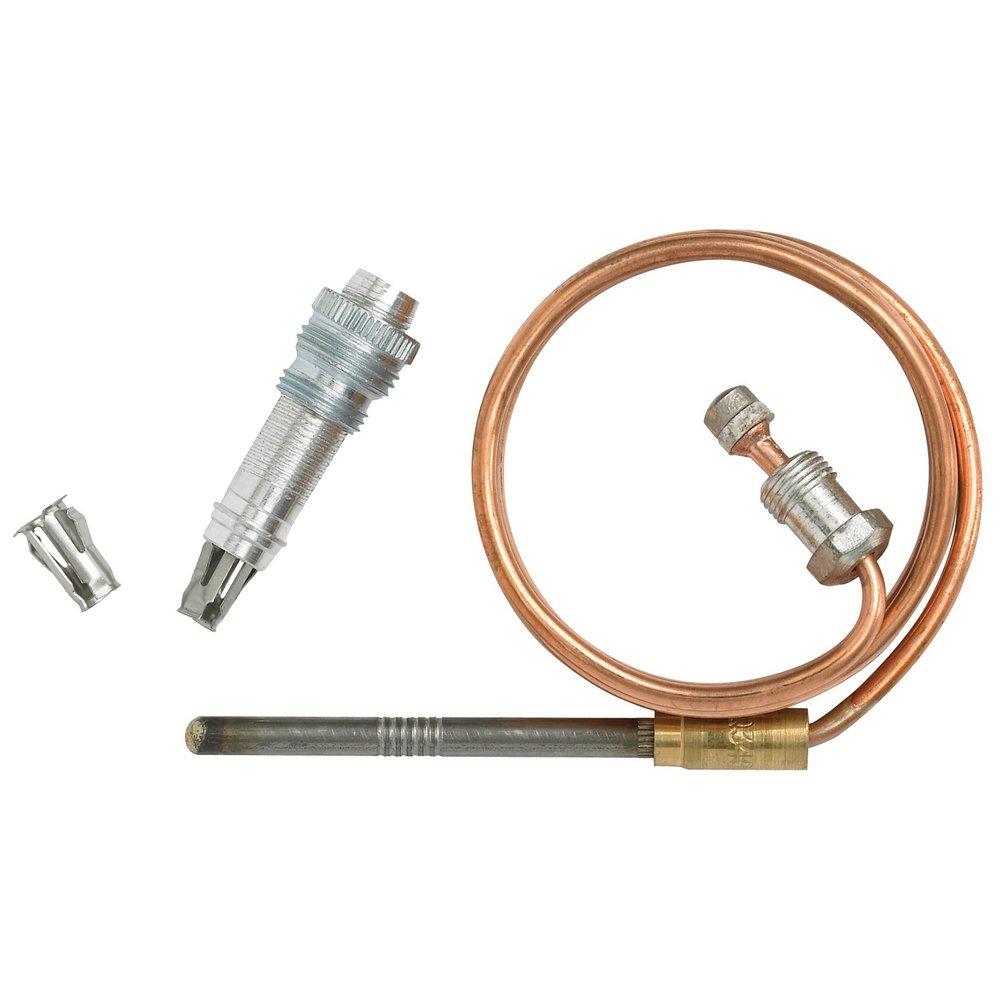

Resideo Q340A1082 Q340A Series 30 in Thermocouple - 30 mV

Product Description

The Resideo Q340A1082 is a thirty millivolt thermocouple. This thermocouple features a measurement length of thirty inches. It connects using an eleven thirty-second male connector nut. The device is designed for use in specific HVAC applications, such as gas heating systems. It ensures the safe operation of gas powered equipment by detecting the flame presence.

• Voltage output of thirty millivolts
• Includes push-in clip and adapter for easy installation
• Suitable for millivolt gas control connections

Product Highlights

This thermocouple is suitable for various heating applications, providing reliable flame detection for gas appliances.

Product Information

Standard Information

• Brand: Resideo
• MPN: Q340A1082

Technical Specifications

• Voltage Output: 30 mV
• Connection Type: 11/32 male connector nut
• Lead Length: 30 inches
• Open Circuit Output: 26 mV to 32 mV
• Resistance: 0.02 ohm
• Temperature Ratings: Hot Junction 1400 F, Cold Junction 780 F
• Includes: Adapter, push-in clip
