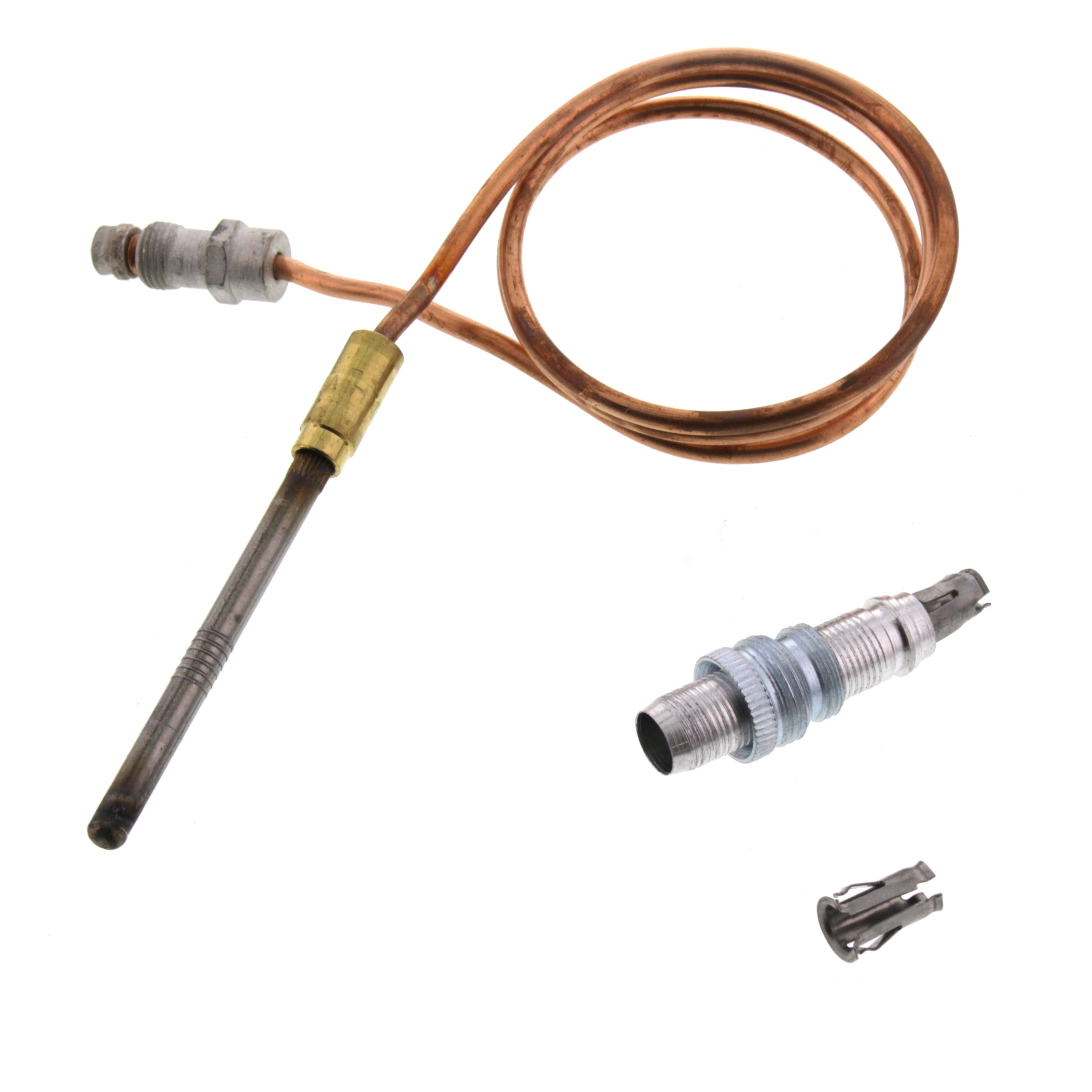

Resideo Q340A1074 Thermocouple 30mV 24-Inch Replacement CQ100A1013

Product Description

This Resideo Q340A1074 24-inch thermocouple is an essential component recommended for HVAC systems requiring reliable flame sensing technology. With a voltage rating of 30 mV, it ensures effective performance in heating applications. Designed for ease of installation, this thermocouple comes equipped with a male nut connector suitable for Pilotstatinchu00ae safety control units.

• Effortlessly integrates with a variety of pilot burners through its adaptable connector options.
• Built to withstand high temperatures, functioning optimally at a hot junction temperature of 1400 degrees Fahrenheit.
• Durable and reliable, offering a sturdy resistance of 0.02 ohms.

Product Highlights

Resideo's Q340A1074 model features specialized connection components such as push-in clips and adapter assemblies to facilitate simple and quick installations. Its design also supports millivolt gas control connections through spade or quick-connect terminals.

Product Information

Standard Information

• Brand: Resideo
• MPN: Q340A1074

Technical Specifications

• Length: 24 inches
• Voltage: 30 mV
• Temperature Rating: 1400 F (hot junction), 780 F (cold junction)
• Connection Type: Male Nut, Push-in Clip
• Includes: Adapter and Push-in Clip
