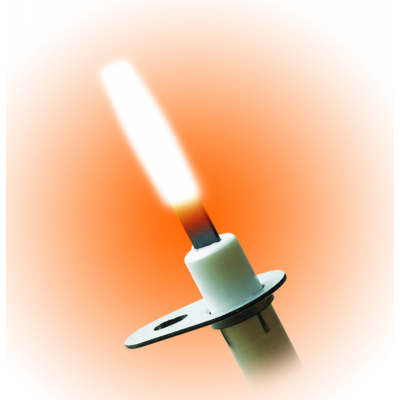

Resideo Q3200U1004/U Universal Hot Surface Igniter 120V

Product Description

The RESIDEO Q3200U1004/U is a universal hot surface igniter kit designed for field-service replacement in gas-fired heating appliances. It operates on 120 volts AC and uses silicon carbide igniter technology, which delivers reliable, repeatable ignition performance across a broad range of furnaces and boilers. This igniter is intended as a direct-fit replacement for Norton, St. Gobain, and CoorsTek 120-volt silicon carbide igniters. Licensed HVAC technicians and gas appliance service technicians are the primary installers of this component.

This igniter kit is suited for residential and light-commercial gas-fired appliances that originally shipped with 120-volt silicon carbide hot surface igniters. Typical applications include gas furnaces, boilers, and other gas heating equipment equipped with silicon carbide ignition systems. The universal design reduces the number of individual igniter SKUs a technician needs to stock for common service calls.

Key Features

• Universal fit designed to replace Norton, St. Gobain, and CoorsTek 120-volt silicon carbide igniters
• Operates on 120 volts AC for compatibility with standard residential ignition control circuits
• Silicon carbide construction provides durable high-temperature ignition performance
• Packaged as a single-unit kit formatted for field service use
• Reduces van stock requirements by consolidating multiple OEM igniter applications into one part

Compatibility

Designed as a universal OEM-style replacement for gas-fired appliances originally equipped with Norton, St. Gobain, or CoorsTek 120-volt AC silicon carbide hot surface igniters.

Installation Notes

Hot surface igniters must be installed by a qualified HVAC or gas appliance technician. Before servicing, shut off power to the appliance at the disconnect and close the manual gas supply valve. Avoid handling the silicon carbide element with bare hands, as skin oils can create hot spots that shorten igniter service life. Work should comply with applicable local mechanical codes and the appliance manufacturer's service documentation.

Technical Specifications

• Voltage: 120 volts AC
• Igniter Material: Silicon carbide
• Compatible OEM Igniter Types: Norton, St. Gobain, CoorsTek 120 VAC silicon carbide
• Quantity: 1 per pack
• UPC: 085267465199

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: Q3200U1004/U
