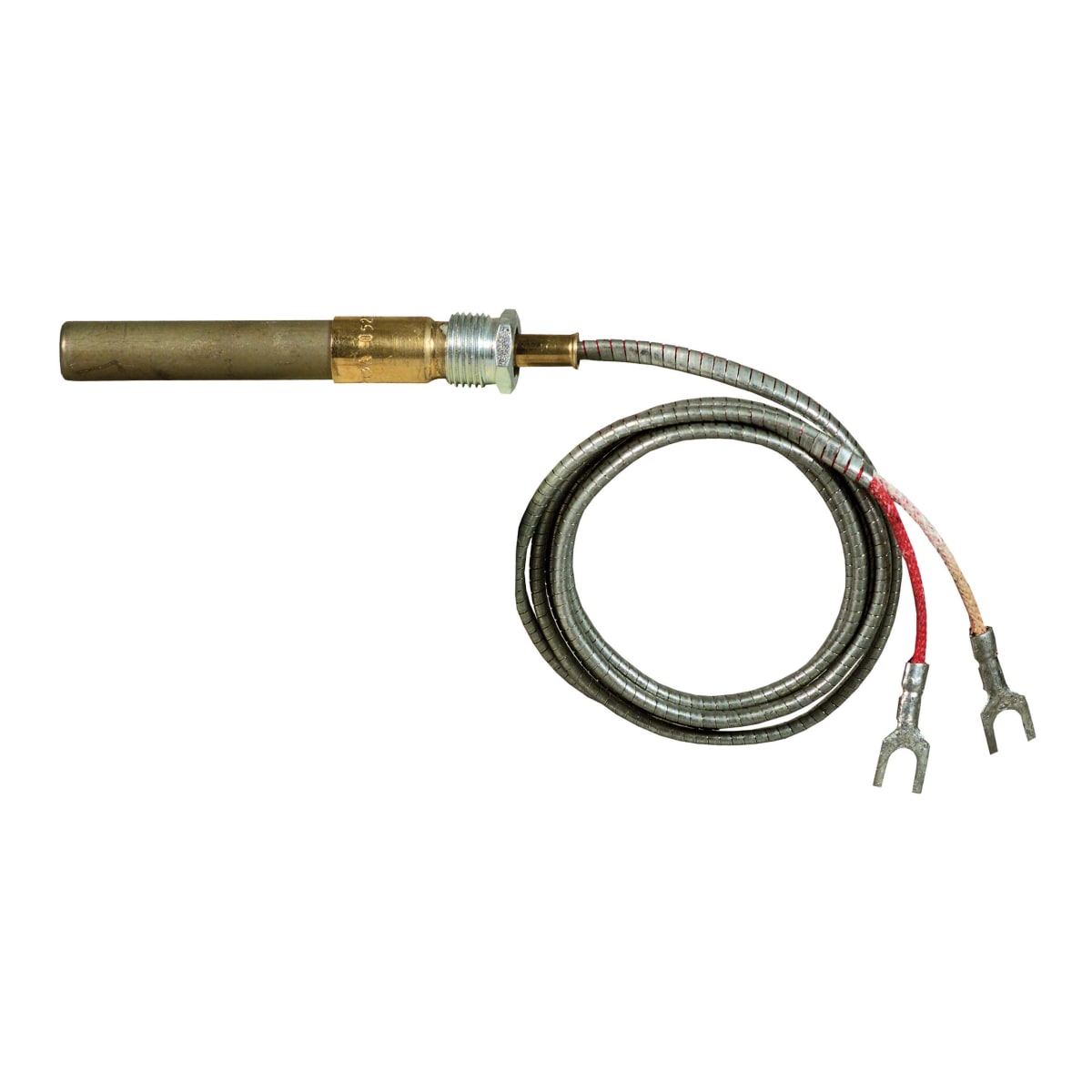

Resideo Q313B1005/U 750 mV Thermopile with Terminal Block, 35 inches long

Product Description

The Resideo Q313B1005/U is a 750 mV thermopile designed to generate sufficient power for automatic millivolt gas control systems. This thermopile features multiple thermocouples connected in series to ensure consistent energy production, independent of external power sources. It is suitable for a variety of applications including pilot burners.

• Generates a maximum open circuit output of 750 mV.
• Includes a terminal block for simple installation.
• Compatible with several pilot burners including Q314, Q324, Q327, Q377, Q379, and Q382.

Product Highlights

The Q313B1005/U works effectively in heating systems, facilitating reliable ignition and system control.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-Q313B1005/U

Technical Specifications

• Type: Ignition Assemblies
• Open Circuit Output Max: 600 mV to 750 mV
• Open Circuit Output Min: 540 mV
• Application: 750 mV Thermopile
• Includes: Terminal Block
• For Use With: Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners
