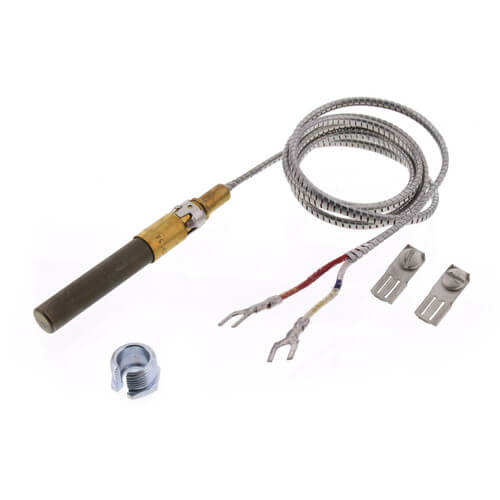

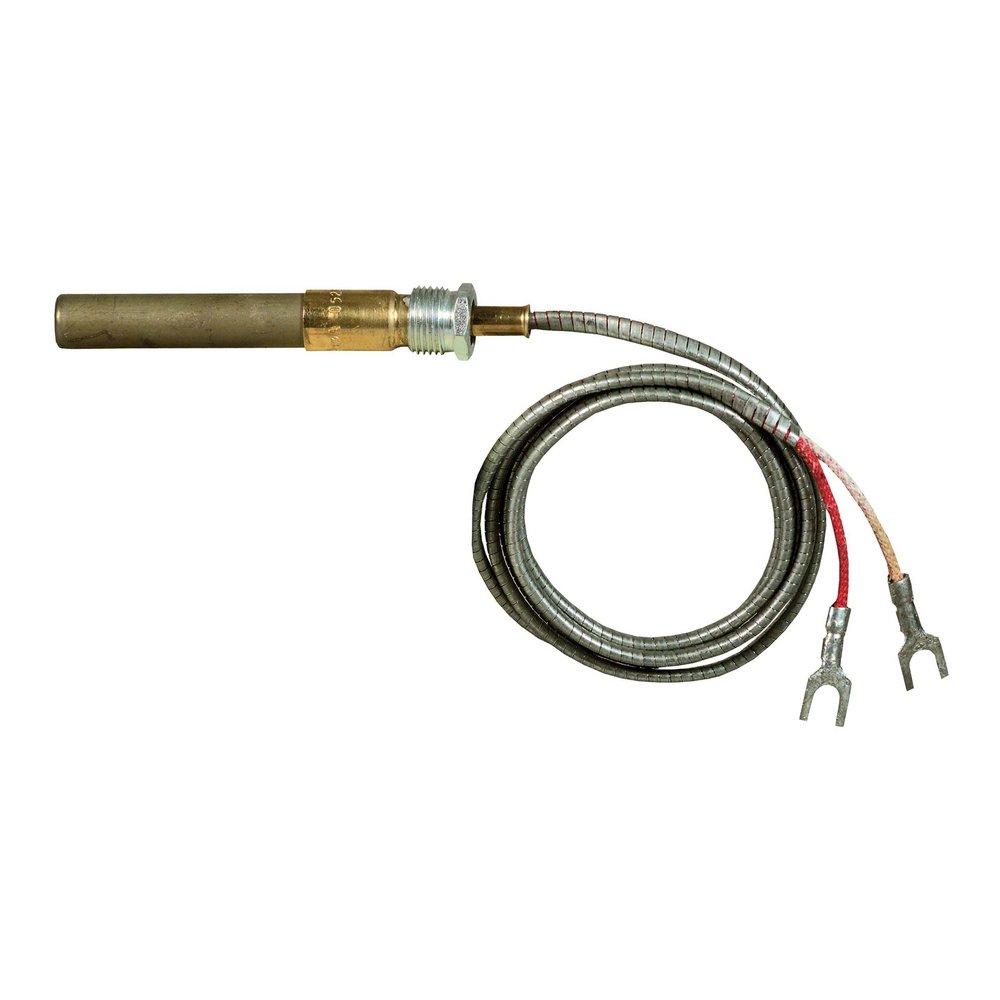

Resideo Q313A1188 Thermopile Generator Set 750mV

Product Description

The Resideo Q313A1188 Thermopile Generator is engineered to optimize your HVAC system’s performance. This model is tailored for robust, independent millivolt gas control systems without necessitating an external power source.

• Effective energy conversion with multiple thermocouples.
• Includes components for straightforward installation.
• Suitable for various Pilotstat safety control power units.

Product Highlights

This thermopile generator is not just powerful but also versatile. It comes equipped with a push-in clip and split nut to simplify pilot burner installation, and its male nut connector fits Pilotstat units seamlessly.

Product Information

Standard Information

• Brand: Resideo
• MPN: Q313A1188

Technical Specifications

• Voltage: 750 mV
• Connection Type: Spade Terminals
• Lead Length: 35 inches
• Open Circuit Output: 600 mV to 750 mV
• Resistance: 2.89 ohm
• Temperature Ratings: Hot Junction 1400 F
• Used With: Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners

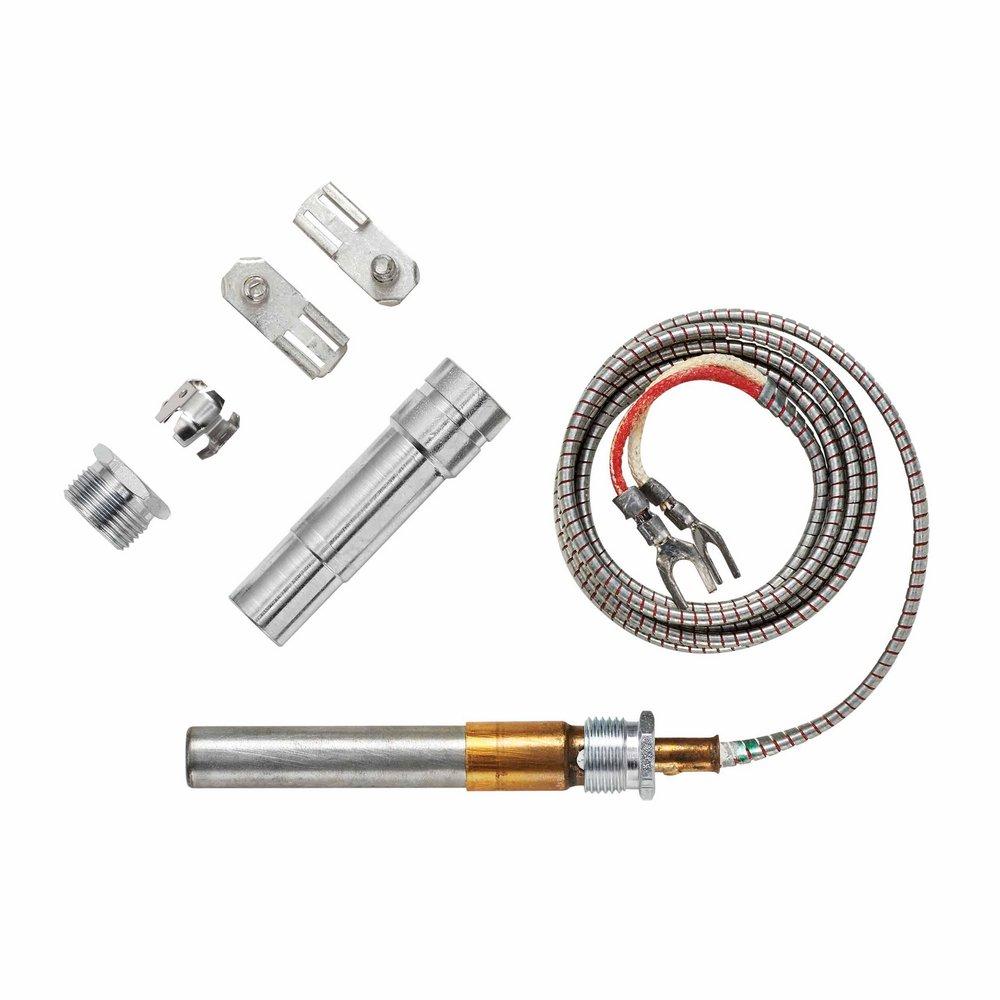

• Included Components: Push-in clip, 1/2 inch thermopile attaching nut
