Resideo Q313A1139 Q313A series thermopile generator 750mV 35 in replacement CQ200A1004

Product Description

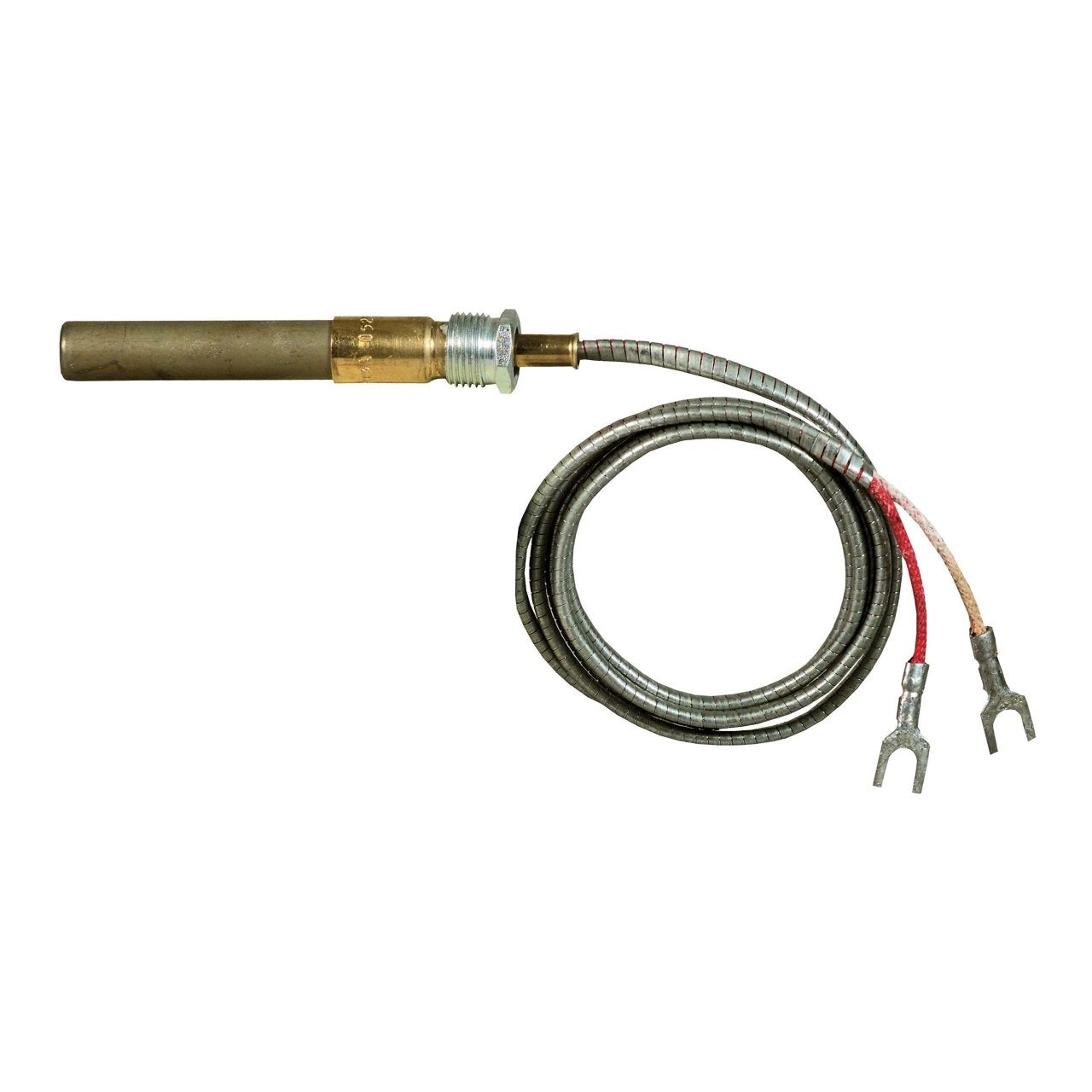

The RESIDEO Q313A1139 is a 750mV thermopile generator with a 35-inch lead and spade terminals. It features a push-in clip, split nut, and adapter assembly for easy pilot burner installation, and includes a male nut connector for Pilotstat safety control power units. This thermopile generator delivers 600-750 mV millivolt output, powering millivolt gas valves without external electricity. It is designed for use in self-powered heaters, hot water equipment, and gas fireplaces.

• Push-in clip, split nut, and adapter assembly for easy pilot burner installation.
• Male nut connector for Pilotstat safety control power units.
• Delivers 600-750 mV millivolt output to power gas valves without external electricity.

Product Highlights

This thermopile generator is designed for reliable millivolt gas valve operation in various heating applications, featuring a 35-inch lead and spade terminals for versatile installation.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: Q313A1139

Technical Specifications

• Brand: Resideo
• MPN: Q313A1139
• Alternative Part Number: HQ313A1139
• Item Number: 54827
• Category: Water Heaters > Water Heater Parts & Accessories > Thermocouples
• Lead Length: 35 in
• Output Voltage: 750mV
• Sensitivity: 20 µV/°C
• Resistance: 2.89 ohm
• Operating Temperature: -67°F to 752°F (-55°C to +400°C)
• Lead Material: Copper
• Connection Type: Spade Terminals
• Open Circuit Output: 600 mV to 750 mV
• Hot Junction Temperature (F): 1400 F
• Hot Junction Temperature (C): 760 C
• Cold Junction Temperature (F): 780 F
• Cold Junction Temperature (C): 416 C
• Compatible Pilot Burners: Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners
• Replaces Part Number: CQ200A1004
• Compatible Accessories: 1950-001, Q313A1170, Q313A1188, Q340A1090
• Application Type: 750 mV Thermopile
• Compatibility: Gas-fired Systems
• Open Circuit Output (Min): 540 mV
