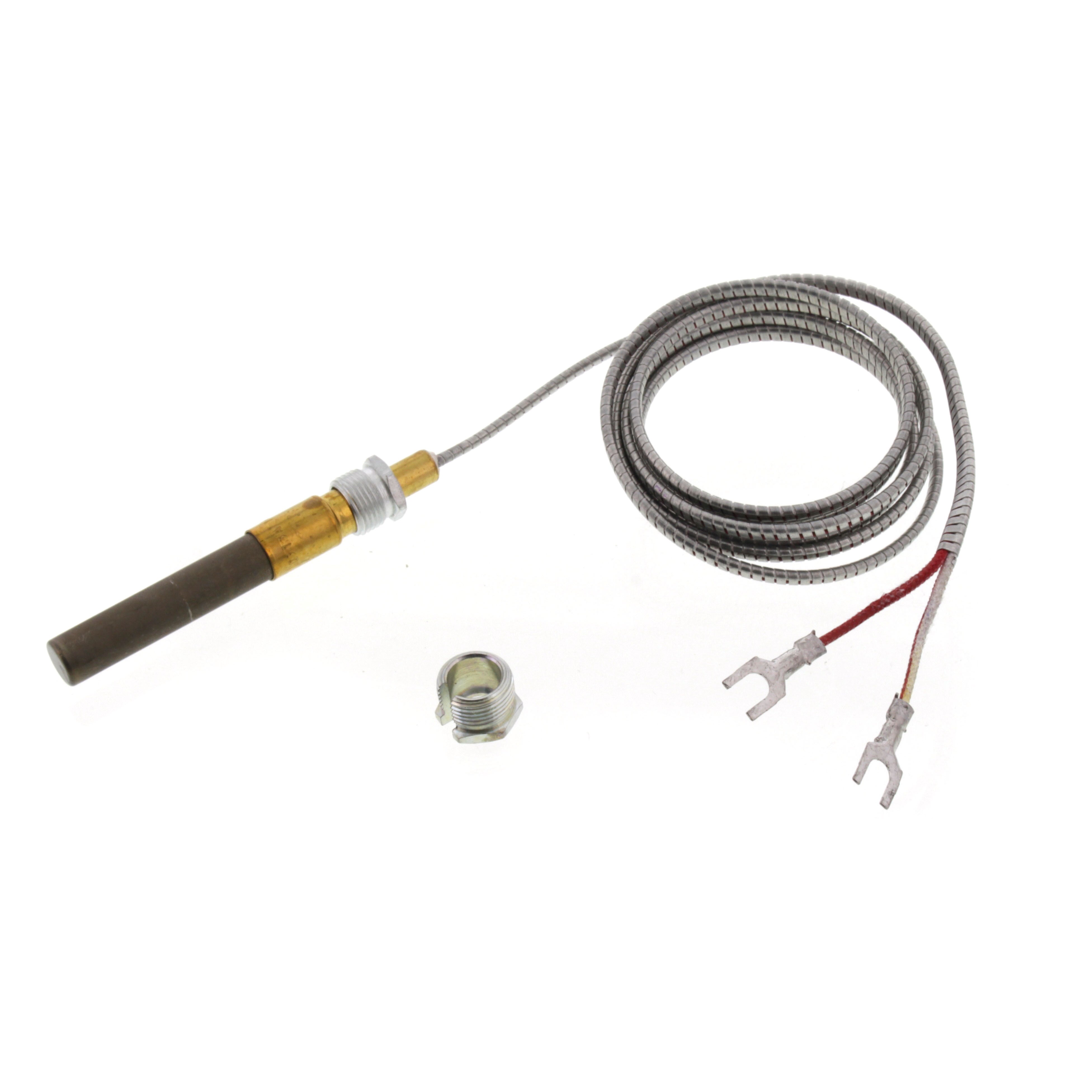

Resideo Q313A1055 47 Inch Thermopile Generator 750mV Replacement Q313A1055

Product Description

The Resideo Q313A1055 47 Inch Thermopile Generator is designed for robust performance in heating systems, employing a series of thermocouples to produce a 750 millivolt output. This power is sufficient to operate millivolt gas control systems independently of external power sources.

• Simple installation with push-in clip and split nut design.
• Efficient power generation for autonomous system control.
• Compatible with Resideo Q314, Q324, Q327, and other pilot burners.

Product Highlights

This thermopile generator enhances system reliability and ease of maintenance, making it a choice component for professional heating system installations. It features spade terminals for quick connections and a resilient nut connector for secure attachment to pilot stats and safety control units.

Technical Specifications

• Voltage: 750 mV
• Lead Length: 47 inches
• Connection Type: Spade Terminals
• Open Circuit Output: 600 mV to 750 mV
• Resistance: 2.89 ohms
• Temperature Rating: Hot Junction 1400 F
• Includes: 1/2 inch thermopile attaching nut
• Compatible With: Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners
