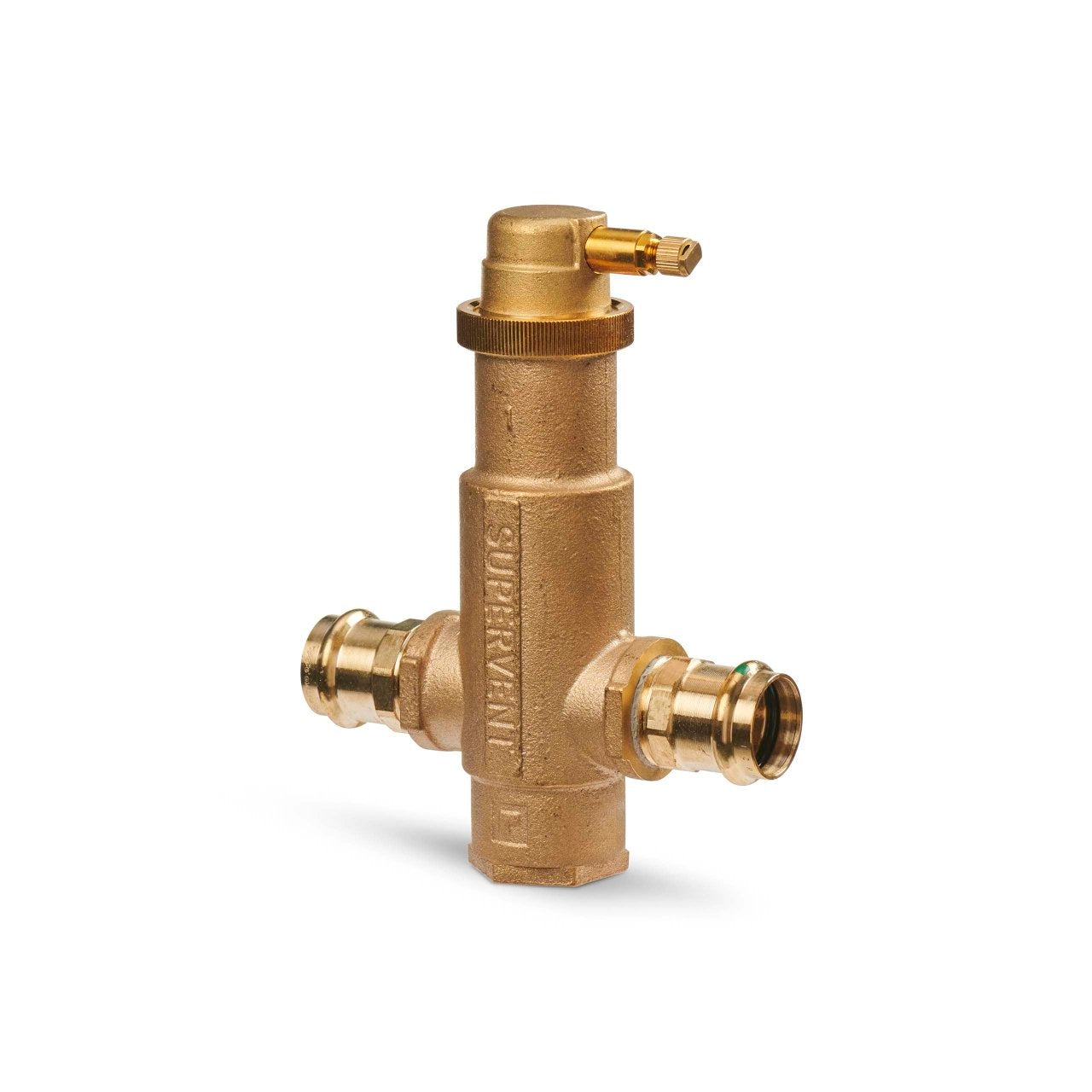

Resideo PV075P/U 3/4 in. Press connection SuperVent Air Eliminator

Product Description

The Resideo PV075P/U SuperVent Air Eliminator automatically removes air and micro-bubbles from hydronic heating and cooling systems, preventing corrosion and improving efficiency. This 3/4 inch Pro Press connection device features a unique, rugged design with a stainless steel concentrator that effectively breaks apart and eliminates air pockets. It operates at a maximum pressure of 125 psi and is constructed from bronze, ensuring durability and continuous service in residential or commercial closed-loop systems.

• Automatically eliminates air and micro-bubbles from hydronic heating and cooling systems without bleeding.
• Guarantees fast start-up with automatic venting and helps prevent corrosion of system components.
• Features a stainless steel concentrator with three times the impact area for efficient air removal.

Product Highlights

The Resideo PV075P/U SuperVent Air Eliminator ensures efficient, maintenance-free operation by automatically removing air and micro-bubbles from hydronic systems.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: PV075P/U

Technical Specifications

• Application: Residential or Commercial closed loop hydronic heating or chilled water systems
• Controlled Media: Non Potable Water
• Flow Coefficient: 13 Cv
• Color: Brass
• Compatible With: Hydronic Heating and Cooling Systems
• Bi-directional Flow: Yes
• Bottom Connection: Yes
• Connection Type: Pro Press
• Pipe Size: 3/4 in
• Operating Pressure (Max): 125 psi
• Seal Material: EPDM Rubber
• Float Material: TPX Polymethylpentene (PMP)
• Body Material: Bronze
• Bottom Inlet Connection Size: 1/2 in
