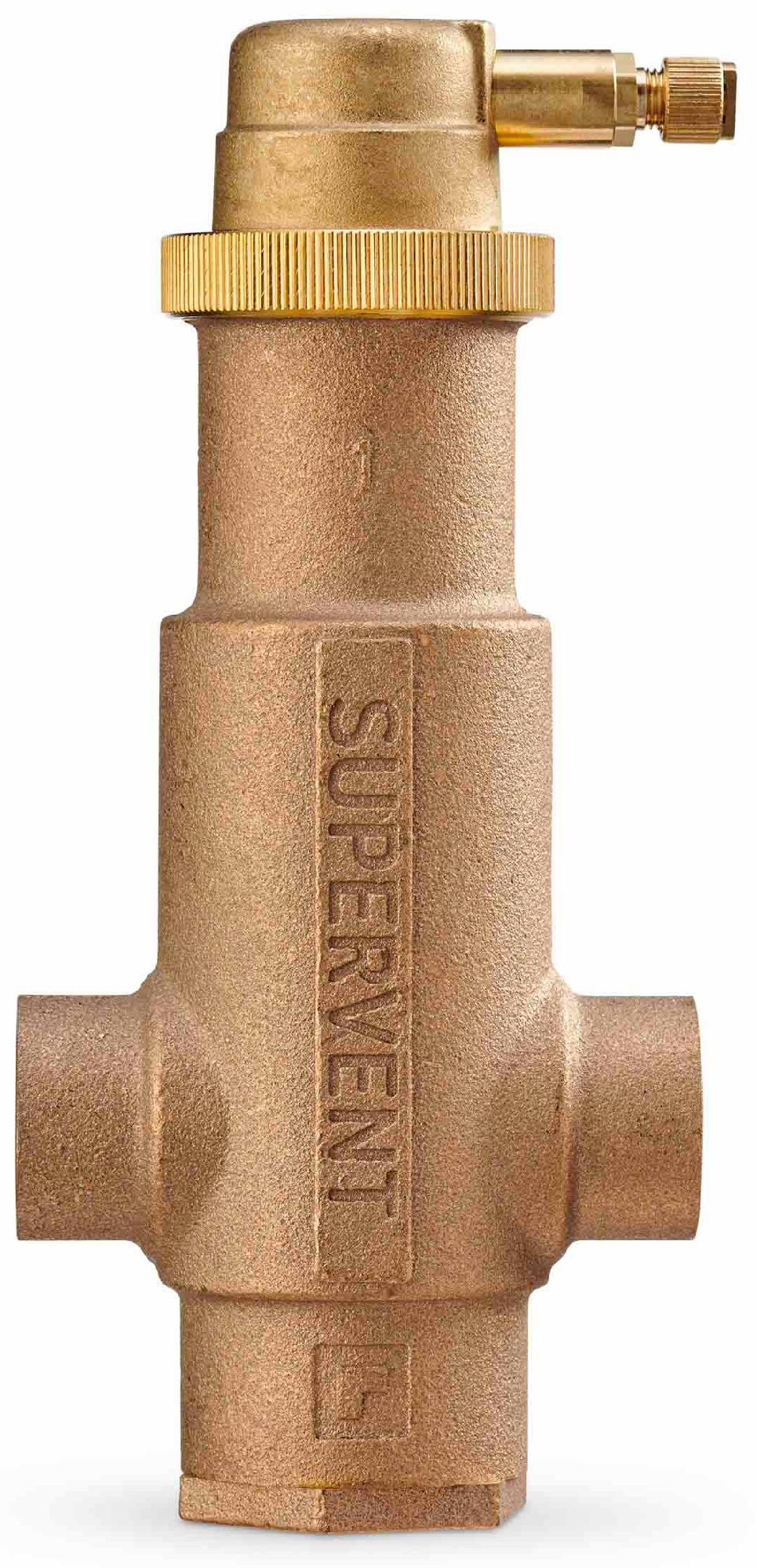

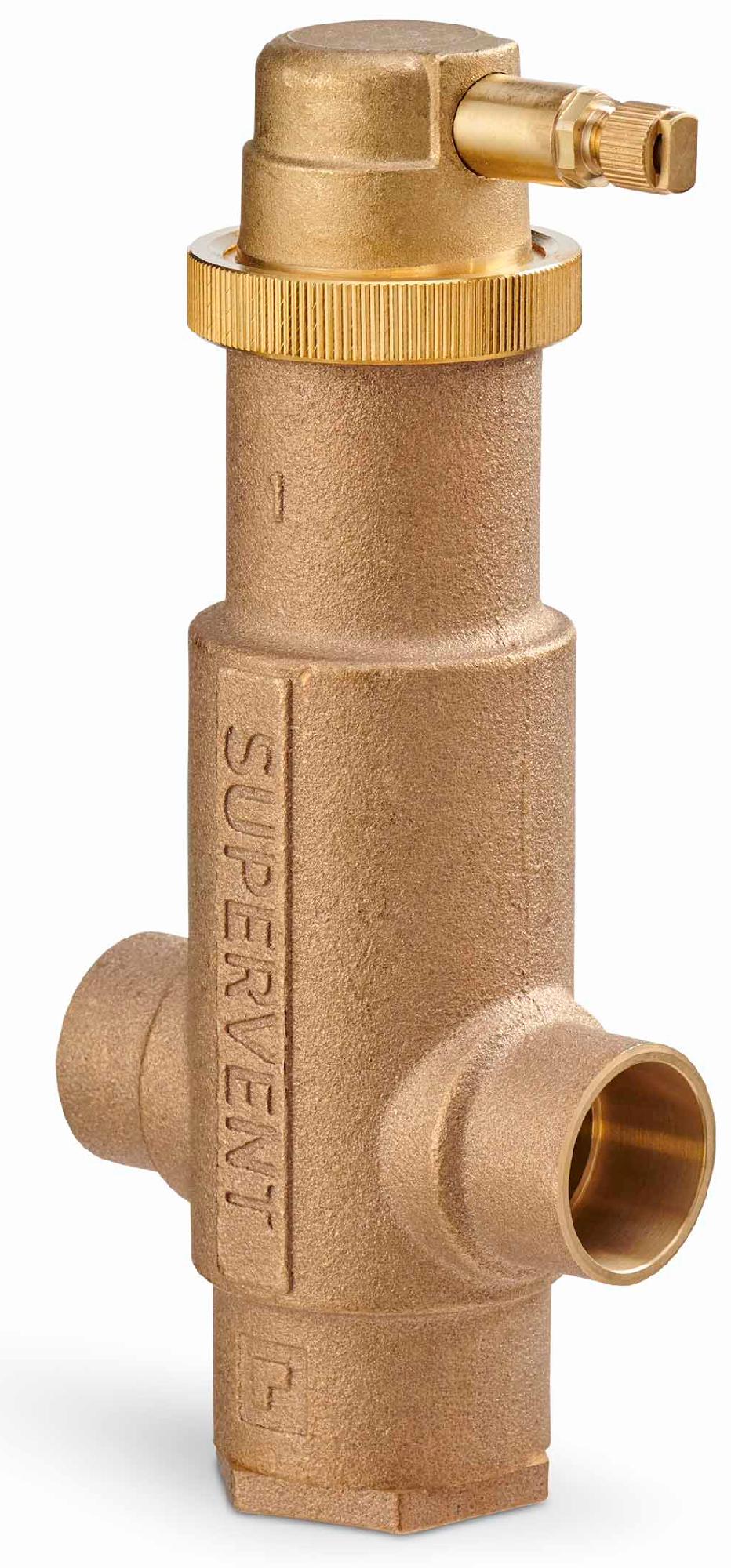

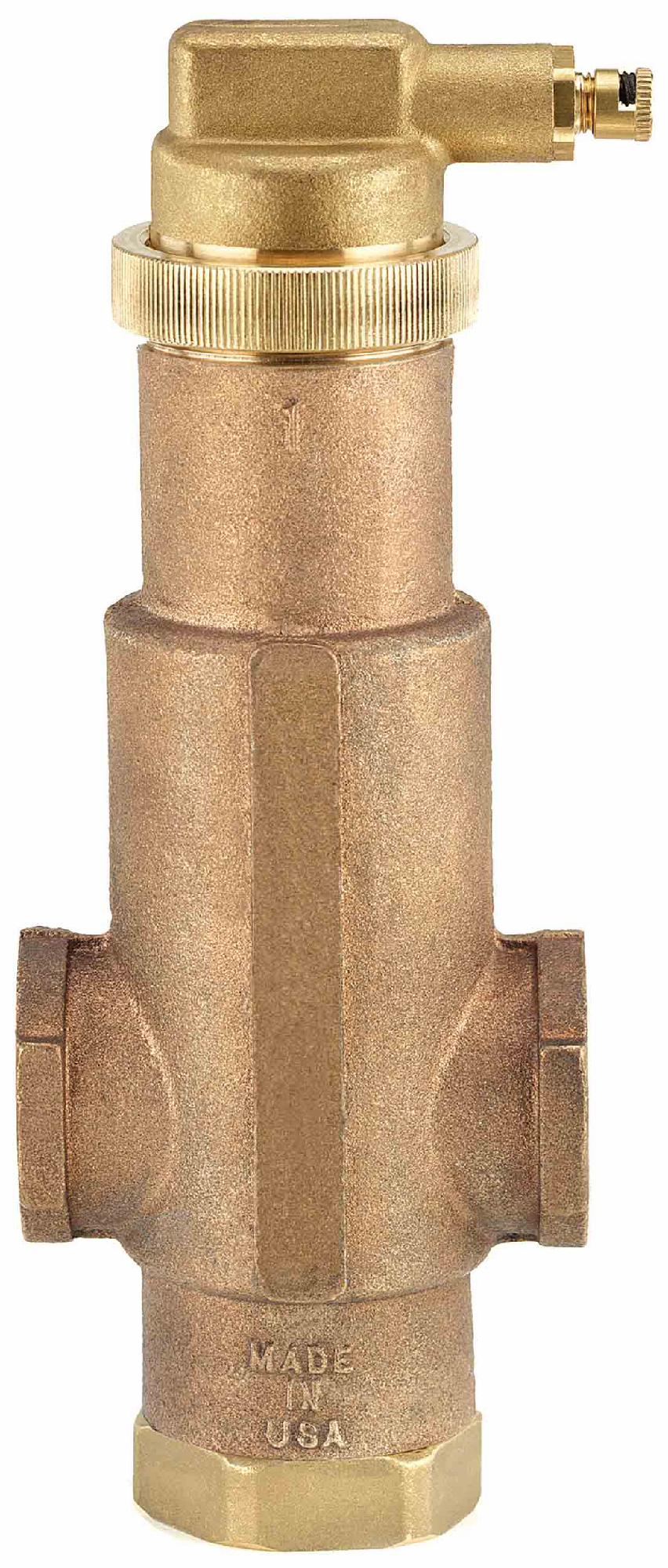

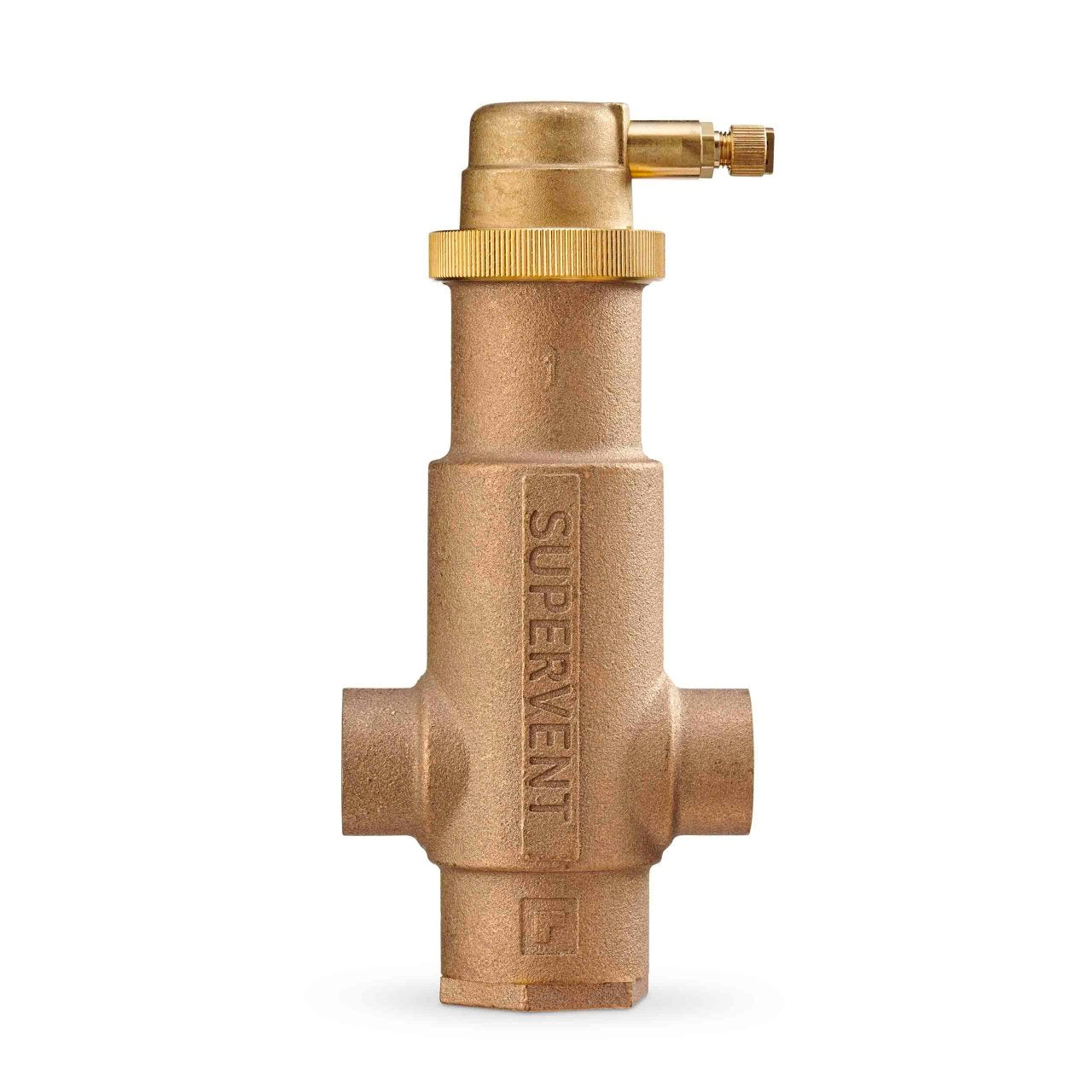

Resideo PV075/U SuperVent Air Eliminator 3/4 in NPT Connection

Product Description

The RESIDEO PV075/U SuperVent Air Eliminator is designed for air ventilation in hydronic heating and cooling systems, handling non-potable water. This 3/4 inch NPT connection device pushes air through a no-clog vent assembly, controlling dirt and debris. It minimizes air vent fouling, eliminates the need for bleeding, and ensures fast start-up with automatic venting. It operates up to 125 psi and helps prevent corrosion of system components.

• Pushes air through a no-clog vent assembly, controlling dirt and debris
• Minimizes air vent fouling in hydronic heating and cooling systems while eliminating the need for bleeding
• Ensures a fast start-up with automatic venting

Product Highlights

Minimizes air vent fouling, ensures fast start-up, and prevents corrosion in hydronic systems.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: PV075/U
• Country of Origin: Mexico

Technical Specifications

• Application: Air Ventilation, Hydronic Heating Systems, Hydronic Cooling Systems
• For Use With: PV-001RP/U Air Vent Assembly, PV-020RP/U Top Replacement
• Compatible With: Hydronic Heating and Cooling Systems
• Controlled Media: Non Potable Water
• Bottom Connection: Yes
• Bidirectional Flow: Yes
• Approvals And Standards: U.S. Patent No. 5,490,874
• Connection Type: NPT
• Connection Size: 3/4 in.
• Diameter: 1-13/16 in.
• Material: Bronze
• Maximum Pressure: 125 psi
• Fitting Type: Straight
• Product Type: Hydronic Air Eliminators
• Operating Temperature: 240 degrees F
