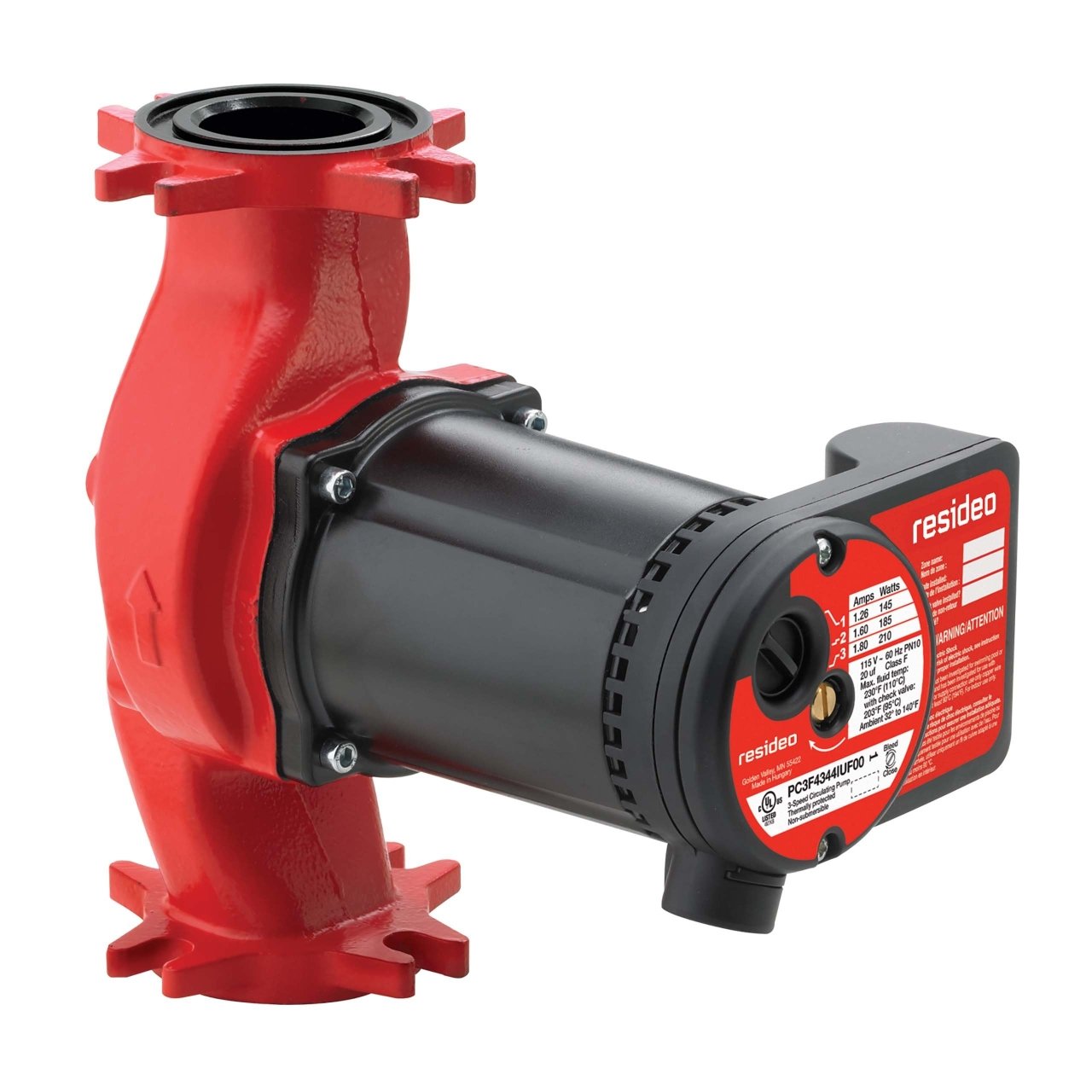

Resideo PC3F4344IUF00/U Large 3-Speed Circulation Pump 115 V 1 ph 8 1/2 in

Product Description

The RESIDEO PC3F4344IUF00/U In-Line Wet Rotor Circulator Pump is designed for closed-loop hydronic heating and cooling systems, as well as solar systems. This non-submersible, 3-speed pump operates at 115 VAC and 60 Hz, providing a maximum flow rate of 59 gpm. It is suitable for dry, frost-free, and well-ventilated installations, handling non-potable water with a maximum media temperature of 230 °F.

• 3-speed operation for versatile performance.
• Designed for closed-loop hydronic heating, cooling, and solar systems.
• Non-submersible design for dry, frost-free, well-ventilated installations.

Product Highlights

Universal flange circulator pump for hydronic and solar applications.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: PC3F4344IUF00/U
• Country of Origin: Import

Technical Specifications

• Color: Black|Red
• Application: Closed Loop Hydronic Heating Systems, Closed Loop Hydronic Cooling Systems, Solar Powered Systems
• Submersible: Non Submersible
• For Use With: PCG150/U|PCV150/U
• Compatible With: Hydronic Heating Systems|Hydronic Cooling Systems|Solar Powered Systems
• Controlled Media: Non Potable Water
• Approvals And Standards: Insulation Class F|Temperature Class: TF 95|UL Listed 4MX8
• Flow Rate, Max: 59 gpm
• Power Source: Hardwired
• Number of Speeds: 3
• Wattage Per Speed: 145 W for Speed 1, 185 W for Speed 2, 210 W for Speed 3
• Amp Drop Per Speed: 1.26 A for Speed 1, 1.61 A for Speed 2, 1.83 A for Speed 3
• Operating Frequency: 60 Hz
• Operating Voltage: 115 VAC
• Driving Noise Rating: Less than 43 dB(A) at 3.3 feet
• Connection Size: 3.4 in
• Connection Type: Flanged
• Flange Connection Size: 3.4 in
• Inlet Pressure, Min: 4.1 psi at 194 °F, 0.73 psi at 167 °F
• Media Pressure, Max: 50 psi at 200 °F, 145 psi at room temperature
• Pressure Head, Max: 17 ft
• Media Temperature, Max: 230 °F
• Check Valve Media Temperature, Max: 200 °F
• Ambient Operating Temperature, Max: 104 °F
• Ambient Operating Temperature, Min: 32 °F
• A to B Port Dimensions: 8.5 in
• Product Height: 8.5 in
• Product Length: 6.1 in
• Product Weight: 11 lb
• Body Material: Cast Iron GG25
• Bearing Material: Ceramic
• Seal Material: EPDM Rubber
• Shaft Material: Ceramic
• Impeller Material: Polyamide
• Phase: 1
• Product Width: 9.5 in
