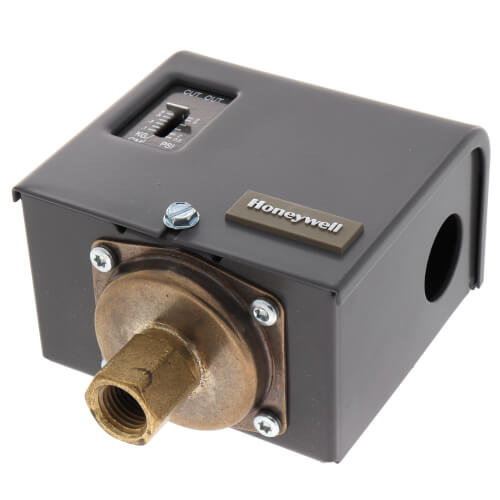

Resideo PA404B1023 Pressuretrol Controller 120 Vac Replacement PA404B1023

Product Description

The Resideo PA404B1023 Pressuretrol Controller is a precise device designed for controlling the pressure in steam heating systems. Engineered with rigorous attention to detail, this controller ensures optimal functionality in managing heating processes.

• Stainless steel diaphragm for reliable pressure sensing.
• SPST snap-acting switch for sharp, accurate control.
• Flexible range settings from 0.5 psi to 9 psi, adaptable to various operations.

Product Highlights

Resideo's PA404B1023 is equipped with multiple features ensuring robust and reliable performance. The controller maintains a maximum operating pressure of 20 psi and operates within ambient temperatures up to 150°F.

Product Information

Standard Information

• Dimensions: 4.44 inches high x 3.375 inches wide x 2.25 inches deep.
• Maximum Operating Pressure: 20 psi.

Technical Specifications

• Switch Type: SPST snap-acting switch.
• Pressure Range: 0.5 to 9 psi.
• Electrical Ratings: Up to 8.0 A at 120 Vac, 5.1 A at 240 Vac.
• Approvals: UL Listed, CSA Listed.
• Material: Gray enamel finish casing.
• Humidity Tolerance: 95% non-condensing.
