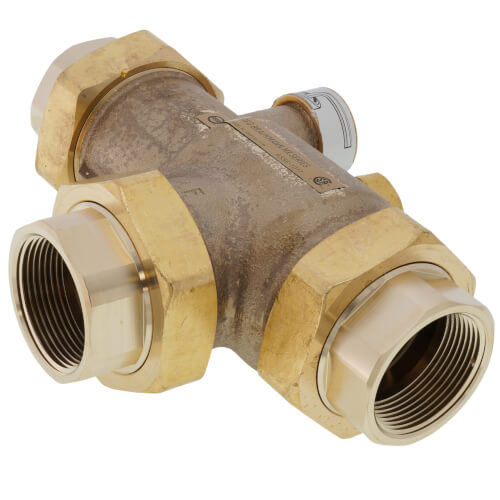

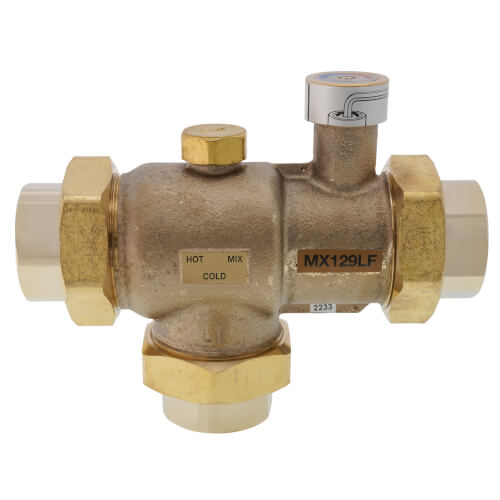

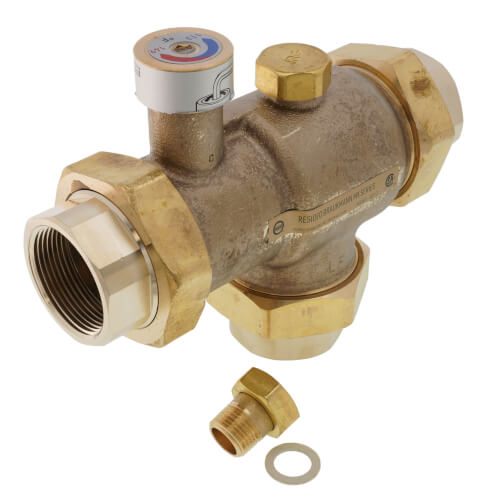

Resideo MX129LF 1-1/2 NPT MX Mixing Valve Lead Free

Product Description

The Resideo MX129LF 1-1/2 NPT MX Mixing Valve efficiently manages hot and cold water supply based on control settings. This valve ensures energy savings, increased comfort, and safety by delivering accurate control of temperature. Teflon wear surfaces prevent calcium buildup for long-lasting performance.

• Lead-Free mixing valve.
• Proportional control for hot and cold water.
• Consistent water temperature under varying conditions.

Product Highlights

The Resideo MX129LF mixing valve is designed for easy installation in any position, with no heat trapping required. It features tamper-evident temperature adjustments and recirculation connections for quick response. Suitable for HVAC professionals and plumbers needing reliable temperature control solutions.

Product Information

Standard Information

• Brand: Resideo
• MPN: MX129LF
• Type: 1-1/2 NPT Mixing Valve

Technical Specifications

• Weight: 8.5
• Dimension Weight: 11
• Connection Type: FNPT x FNPT
• Flow Capacity (Cv): 13.5
• Temperature Range: 113°F - 149°F
• Material: Bronze, Stainless Steel
• Lead Free: Yes
• Application: Point of Source
• Connection Method: Threaded
• Shipping Depth: 9.4 inches
• Shipping Width: 6.55 inches
• Shipping Height: 4.55 inches
• Use: Mixing or Diverting Valve
