Resideo MS4120F1204 H/W MS4120F-1204/U 2POS Actuator 120 Volt AC

Product Description

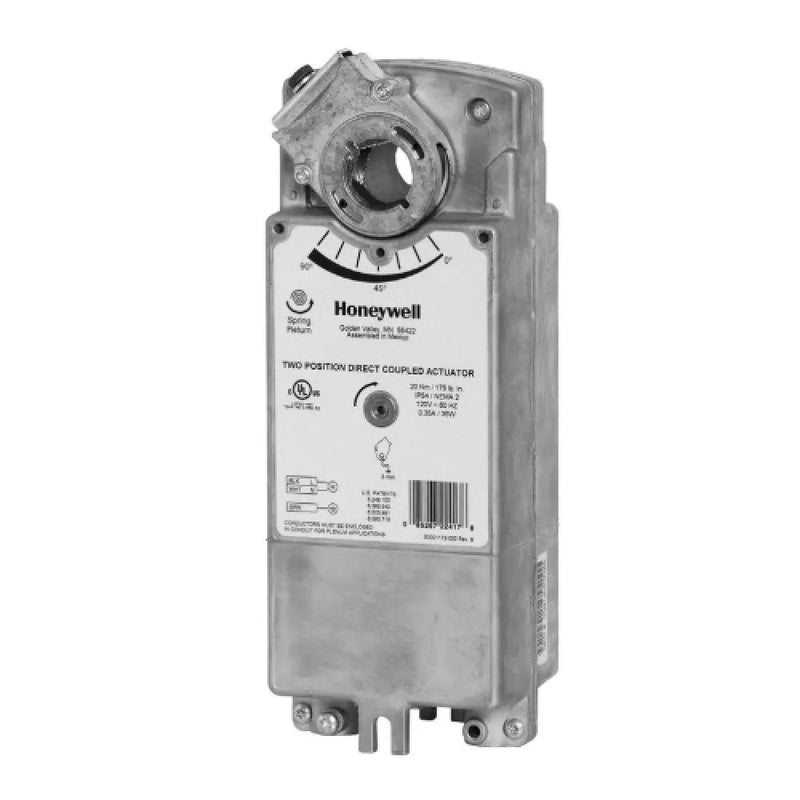

The RESIDEO MS4120F1204 is a SPST, direct coupled, 2-position, fast-acting damper actuator. This spring return actuator features a manual crank and operates at 120 Volt AC, 60 Hertz. It is designed for fire and smoke applications with an aluminum body and NEMA 2, IP54 enclosure. Includes self-centering shaft adapter, 3 Millimeter Crank.

• Damper Actuator
• Spring Return
• Manual Crank
• Fire and Smoke Application

Product Highlights

Designed for fire and smoke applications, this actuator features a spring return, manual crank, and operates at 120 Volt AC.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: MS4120F1204

Technical Specifications

• Type: SPST, Direct Coupled, 2-Position, Fast Acting
• Operation Type: Spring Return, Manual Crank
• Voltage Rating: 120 Volt AC
• Maximum AC Voltage: 120 Volt
• Current Rating: 0.35 Amp (Driving), 0.15 Amp (Holding)
• Frequency Rating: 60 Hertz
• Power Rating: 35 Watt (Driving), 10 Watt (Holding)
• Torque: 20 Nm
• Enclosure: NEMA 2, IP54
• Shaft Diameter: 3/8 to 1.06 Inch
• Supply Connection Size: 40 Inch Non-Stick Jacketed Cable
• Body Material: Aluminum
• Operating Temperature: -40 to 130 Deg F
• Application: Fire and Smoke
• Approval: UL 873, CUL C22.2, CE, C-Tick N314
• Connection Type: Enclosed Screw Terminal Strip
• Timing: 15 Second
• Series: MS
• Electrical Connection: Screw Terminal
• Material: Aluminum
• Noise Level (Driving): 70 dBA
• Noise Level (Holding): 20 dBA
• Humidity Rating: 5 to 95 %
• Action: SPST
• Control: On-Off
• Motor Type: Electrical Motor
• Mounting: Self-Centering Shaft Adapter
• Rotation Angle: 95 deg
• Shaft Rotation: CW, CCW
• Shaft Size: 1 to 3-1/4 in
• Stroke: 95 deg
