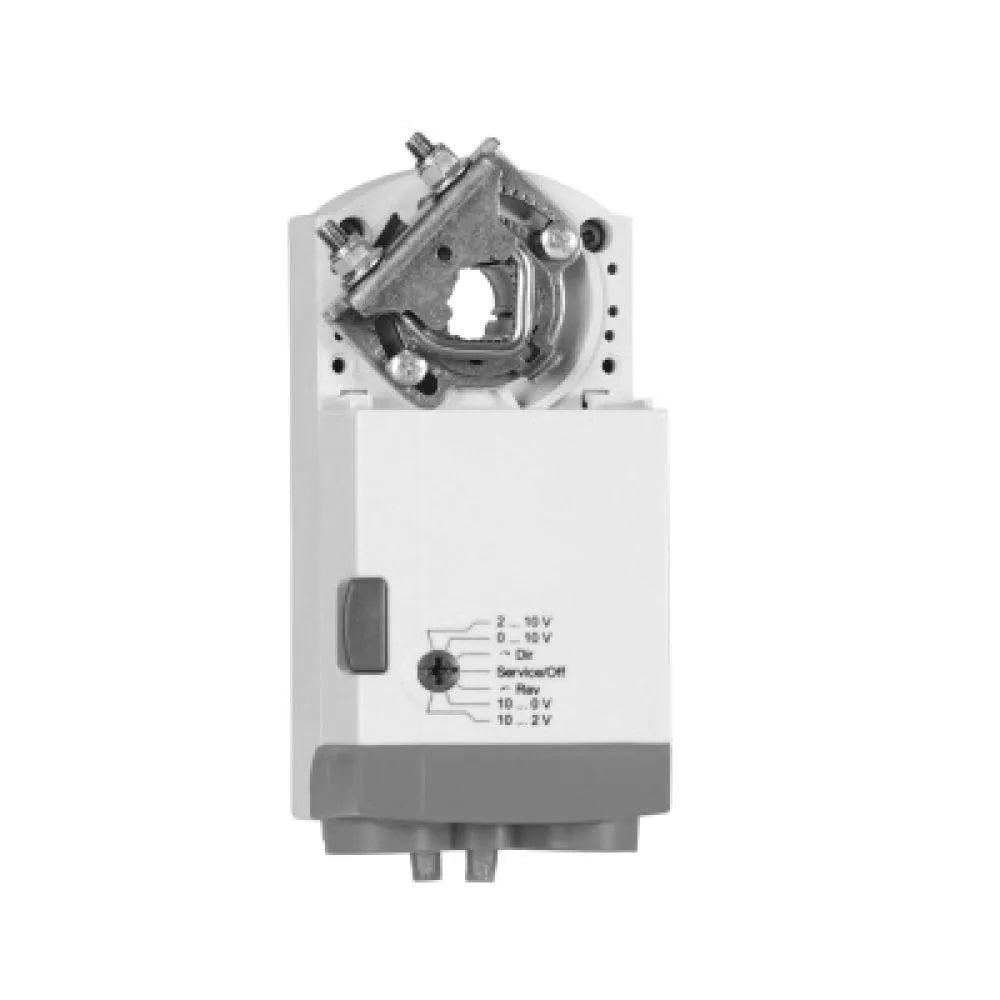

Resideo MN7505A2001 Direct Coupled Actuator 2 W (95°)

Product Description

The Resideo MN7505A2001 is a direct-coupled actuator for HVAC applications that operates on 24 VAC/VDC and consumes 2 W. It provides a 95° rotation via an electrical motor and supports floating and modulating control with actuation timing of 90 to 110 seconds. The unit is rated IP54, produces 35 dB noise, and is specified for -5 to 140 °F and 5 to 95% RH; shaft length is 1-5/8 in.

• Operates on 24 VAC/VDC with 2 W power consumption; supports floating and modulating control.
• 95° rotation angle driven by an electrical motor with timing of 90 to 110 seconds and 1-5/8 in shaft.
• IP54 enclosure rating; noise level 35 dB; operating range -5 to 140 °F and 5 to 95% RH.

Product Highlights

Direct-coupled HVAC actuator, 24 VAC/VDC, 2 W, 95° rotation, 90–110 s timing, IP54 rated.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: MN7505A2001

Technical Specifications

• Brand: Resideo
• MPN: MN7505A2001
• Series: MN
• Input Voltage: 24 VAC/VDC
• Frequency: 50/60 Hz
• Power Consumption: 2 W
• Timing: 90 to 110 s
• Noise Level: 35 dB
• Operating Temperature: -5 to 140 °F
• Humidity Rating: 5 to 95% RH
• Enclosure Rating: IP54
• Dimensions (L x W x H): 2-19/32 in x 2-7/16 in x 5-9/32 in
• Control Type: Floating, Modulating
• Motor Type: Electrical motor
• Rotation Angle: 95°
• Shaft Length: 1-5/8 in
• Application: HVAC
