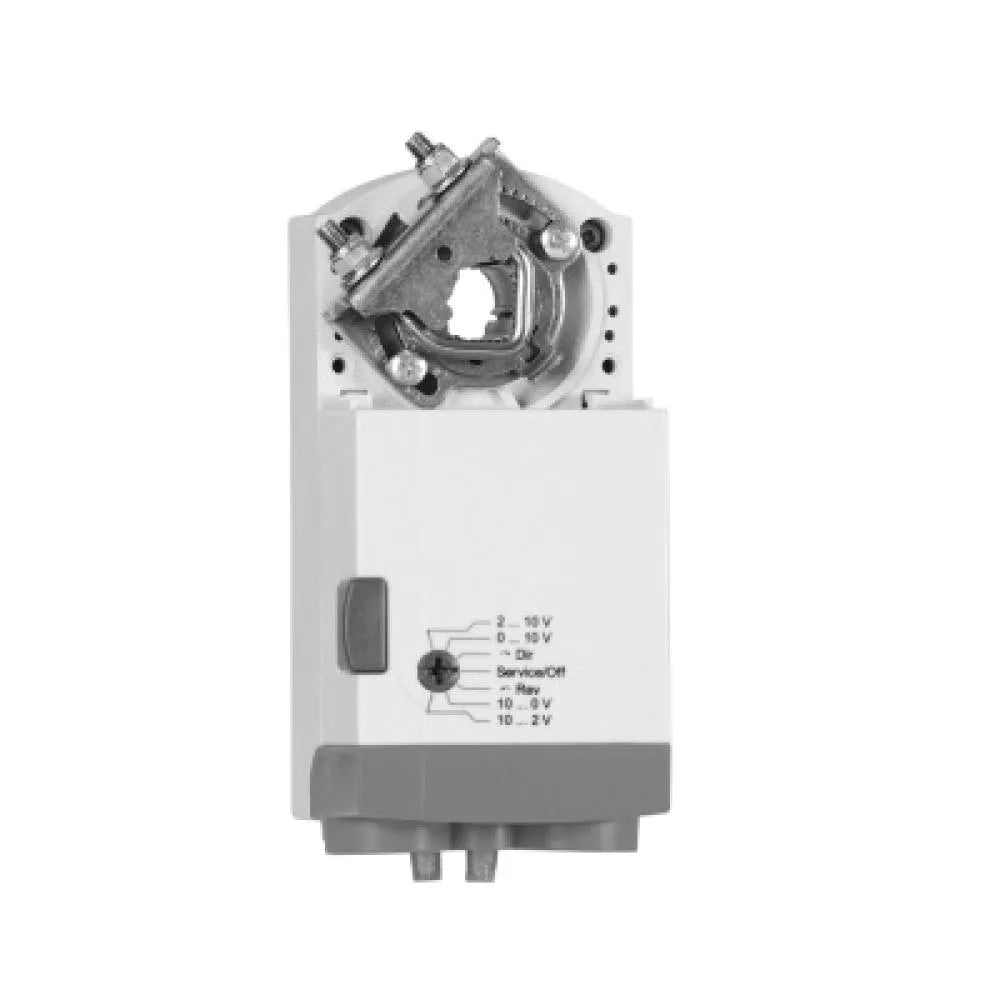

Resideo MN6105A1011 Direct Coupled Actuator 2 W (95 Degree Angle)

Product Description

Resideo MN6105A1011 is a direct-coupled electrical actuator for HVAC applications providing floating and modulating control. It runs on 24 VAC/VDC at 50/60 Hz, consumes 2 W, and completes travel in 90 to 110 seconds with a 95 degree rotation. The actuator features a 1-5/8 in shaft, IP54 enclosure, 35 dB noise rating, and operates from -5 to 140 F with 5 to 95% humidity tolerance.

• Operates on 24 VAC/VDC at 50/60 Hz; power consumption 2 W; actuation time 90 to 110 s.
• Floating and modulating control with 95 degree rotation and 1-5/8 in shaft.
• IP54 enclosure rating, 35 dB noise level; operating range -5 to 140 F and 5 to 95% relative humidity.

Product Highlights

Direct-coupled HVAC actuator with 95 degree rotation and IP54 protection

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: MN6105A1011

Technical Specifications

• Brand: Resideo (Honeywell Home)
• MPN: MN6105A1011
• Series: MN Series
• Input Voltage: 24 VAC/VDC
• Frequency: 50/60 Hz
• Power Consumption: 2 W
• Actuation Time: 90 to 110 s
• Noise Level: 35 dB
• Operating Temperature: -5 to 140 F
• Enclosure Rating: IP54
• Humidity Rating: 5 to 95 %
• Dimensions: 2-19/32 in L x 2-7/16 in W x 5-9/32 in H
• Control Type: Floating, Modulating
• Motor Type: Electrical motor
• Rotation Angle: 95 degrees
• Shaft Length: 1-5/8 in
