Resideo ML6161B2024 Actuator Damper On/Off SPDT Float 35 lb in DC Non-SR

Product Description

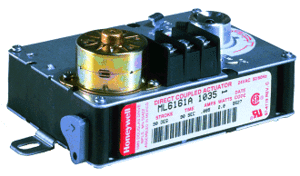

The Resideo ML6161B2024 is a damper actuator designed for reliable on/off control. This actuator operates at twenty-four volts AC with a plus or minus twenty percent tolerance suitable for various HVAC applications.

• Features screw terminals for easy electrical connections.
• Delivers a nominal driving timing of ninety seconds at sixty hertz.
• Constructed from steel plate and plenum-rated plastic for durability.

Product Highlights

The actuator offers a torque of thirty-five inch-pounds and operates quietly at forty-five decibels.

Product Information

Standard Information

• Brand: Resideo / Honeywell Home
• Active Status: Is Active

Technical Specifications

• Voltage: 24 VAC (+/- 20%)
• Frequency: 50/60 Hz
• Driving VA: 1.8 V-A
• Ambient Temperature: 20 - 125 deg F
• Shipping Temperature: 20 - 130 deg F
• Enclosure Rating: NEMA 1
• Humidity Range: 5 - 95% RH Non-Condensing
• Dimensions: 3.39 in W x 5.55 in H x 2.52 in D
• Stroke Configuration: Floating, SPDT, 90 deg Stroke
