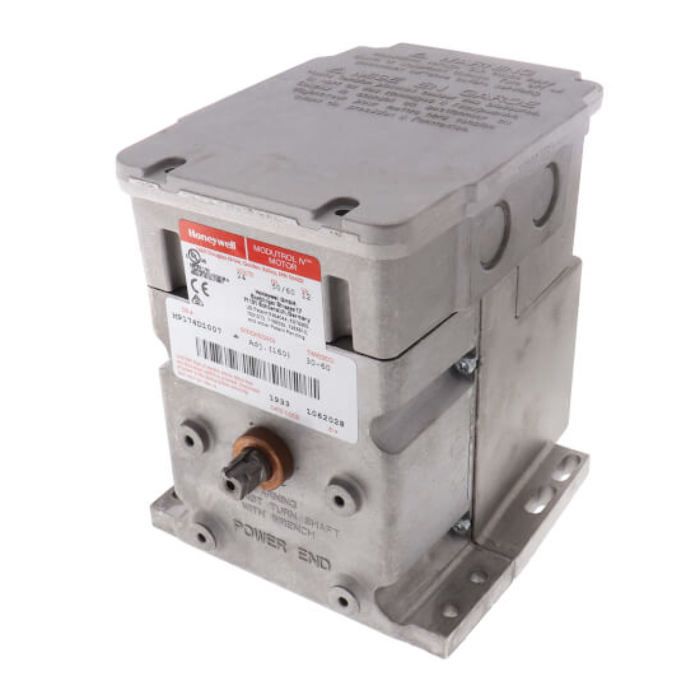

Resideo M9174D1007 Actuator Foot Mounted Non-Spring Return Modulating Proportional Control 75 lb-in 24V

Product Description

The Resideo M9174D1007 is a foot-mounted actuator designed for use in HVAC applications. It operates on twenty-four volts and provides modulating proportional control. This unit is built to handle a torque rating of seventy-five pound-inches, making it suitable for various valve and damper installations.

• Integral junction box offers NEMA 3 weather protection.
• Field adjustable stroke from ninety to one hundred sixty degrees.
• Quick-connect terminals for easy electrical connection.

Product Highlights

This actuator is designed for reliability and ease of installation, ensuring efficient operation in various settings.

Product Information

Standard Information

• Application Type: Electric
• Fail Safe Mode: Non-Spring Return

Technical Specifications

• Voltage: 24
• Torque Rating (lb-in): 75
• Dead Weight Load (Combined on Both Shafts): 300 lbs.
• Dimension: 6-7/16 H x 5-1/2 W x 7-5/16 D
• Shaft Shape: Square
• Control Signal: Proportional, 135 ohm
• Operating Ambient Temperature Range: -40°F to +150°F (-40°C to +60°C)
• Frequency: 50/60 Hz
