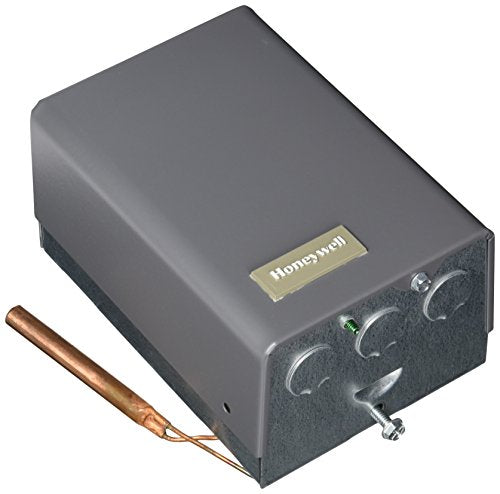

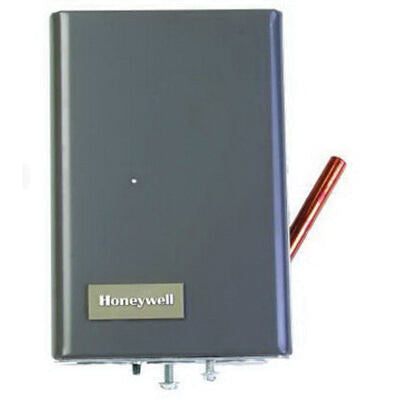

Resideo L8148E1299 Aquastat Relay 120 VAC Vertical Mount with 50VA Transformer

Product Description

The Resideo L8148E1299 Aquastat Relay is crafted to provide effective high limit protection combined with switching relay control of burner and circulator motors. Ideal for various heating applications, this product ensures a reliable operation through its 120 VAC and 50 VA transformer.

• Equipped with a SPST switch for high limit and circulator control.
• Vertical mount design perfect for streamlined installation.
• Includes a 50 VA transformer for consistent power supply.

Product Highlights

This Resideo Aquastat is essential for maintaining an accurate temperature range in heating systems, thanks to its 15-degree(F) differential and robust construction. It's designed for user-friendly operation with quick-connect electrical connections.

Product Information

Standard Information

• Brand: Resideo
• MPN: L8148E1299

Technical Specifications

• Type: Aquastat Relay Vertical Oil Burner
• Voltage: 120V
• Mounting: Vertical
• Electrical Ratings: Low Voltage: 0.8 A max @ 24 Vac
• Operating Temperature Range (F): High Limit-- 180 F to 240 F
• Differential Temperature (F): 15 F fixed
• Capillary Length (in): 4-1/2 inches
• Insulation Depth (in): 1-1/2 inches to 3 inches
