Resideo L8124G1020/U aquastat triple 130-240 degrees fahrenheit high limit 10f fixed low limit 10-25f adjustable vertical 120 v

Brand: RESIDEO
SKU: L8124G1020/U
Availability: In Stock

Ships same day if ordered by 12 pm
$512.53
$512.53
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

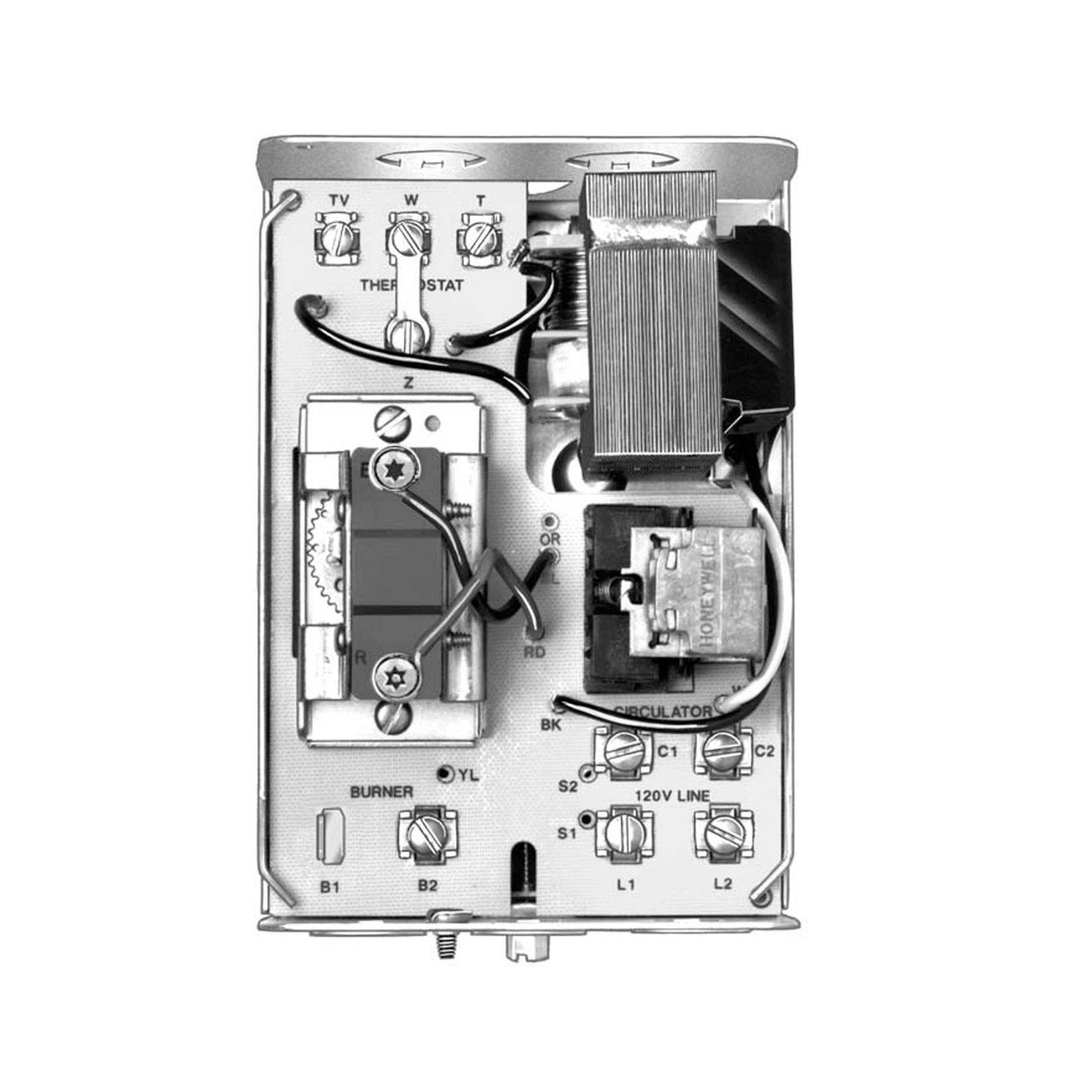

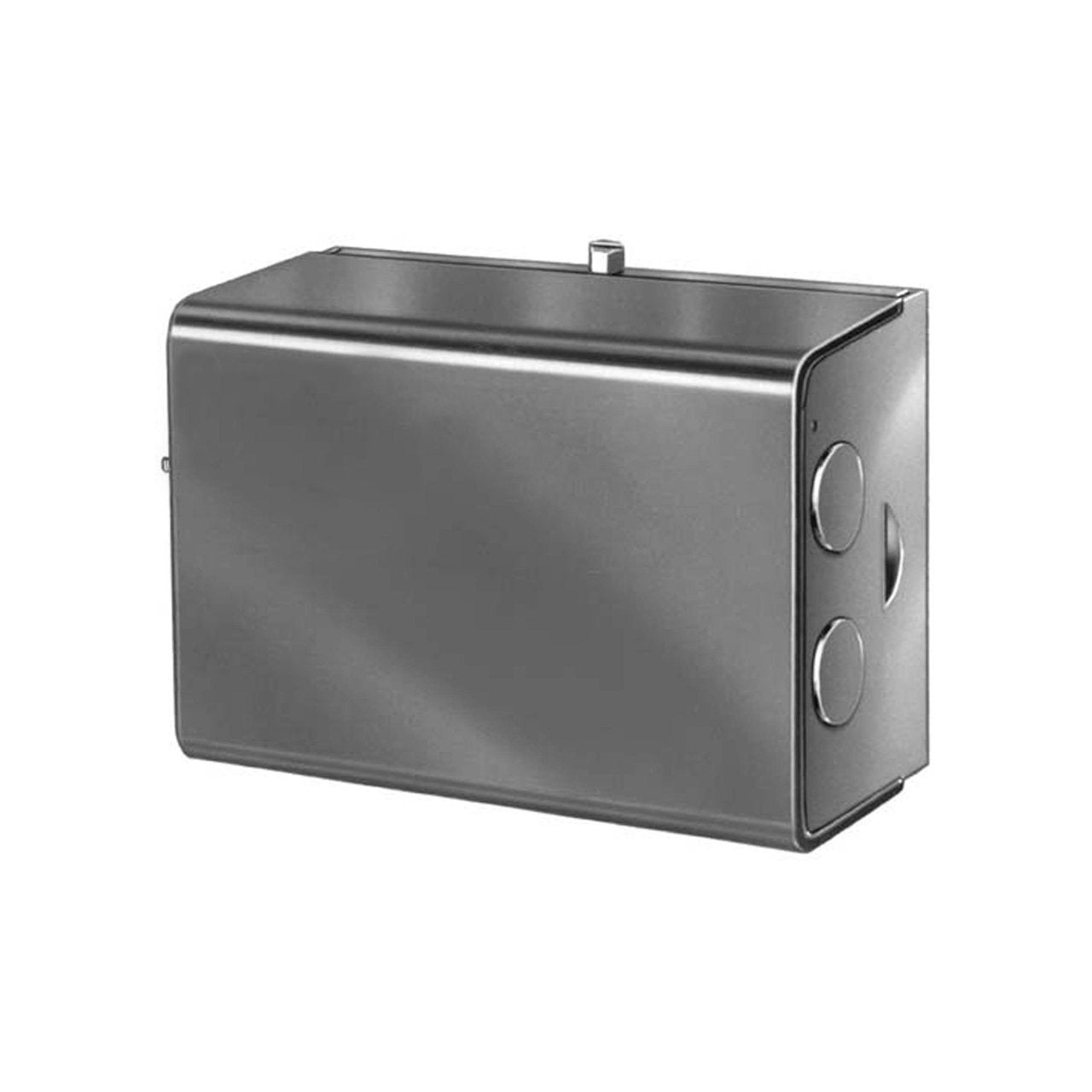

The RESIDEO L8124G1020/U Aquastat Triple is an immersion-type controller designed for precise temperature regulation in forced hydronic heating systems, including domestic hot water service. It combines high limit protection with low limit and circulator control. This vertical mount aquastat features a temperature range of 130-240 degrees Fahrenheit, a fixed high limit differential of 10F, and an adjustable low limit differential of 10-25F. It is suitable for HVAC, water heating systems, and boilers.

  • Temperature range of 130-240 degrees Fahrenheit for optimal control.
  • Fixed low limit of 10F and adjustable range of 10-25F for flexibility.
  • Vertical design supports easy installation and integration into existing systems.

Product Highlights

This aquastat provides precise temperature control for hydronic heating systems, ensuring optimal performance and safety.

Product Information

Standard Information

  • Brand: RESIDEO
  • Manufacturer Part Number: L8124G1020/U
  • Country of Origin: Domestic
Technical Specifications
Application
Triple Aquastat Relay with High Limit Protection
Approvals and Standards
UL Listed (models with well): File No. MP466, Guide No. MBPR|UL Component Recognized (models without well): File No. MP466, Guide No. MBPR2|CSA Certified: File No. LR1620, Guide No. 400-E-O
Color
Gray
Compatible With
Hot Water, Hydronic Heating Systems
Mounting Type
Vertical
Series
L8124G
Input Voltage
120 V
Temperature Range
130 to 240 deg F
High Limit Differential (Fixed)
10 deg F
Low Limit Differential (Adjustable)
10 to 25 deg F
Switch Type
SPST High and Low Limit
Humidity Range
0 to 95% RH Non-Condensing
Frequency
60 Hz
Circulator Full Load Current
7.4 A at 120 VAC : 3.7 A at 240 VAC
Circulator Locked Rotor Current
44.4 A at 120 VAC: 22.2 A at 240 VAC
Switch Operating Temperature
-30 to 150 deg F
Sensing Element Max Temperature
265 deg F
Type
Triple
Low Limit Setpoint (Min)
110 °F, 43 °C
Low Limit Setpoint (Max)
220 °F, 104 °C
High Limit Setpoint (Min)
130 °F, 54 °C
High Limit Setpoint (Max)
240 °F, 116 °C
Electrical Connection Type
Quick-Connect / Screw
Max Operating Pressure
200 psi on outside of immersion well, 100 psi on capsule if inserted directly, 1378 kPa on outside of immersion well, 690 kPa on capsule if inserted directly
Type of Fuel
Oil
Product Type
Relays
