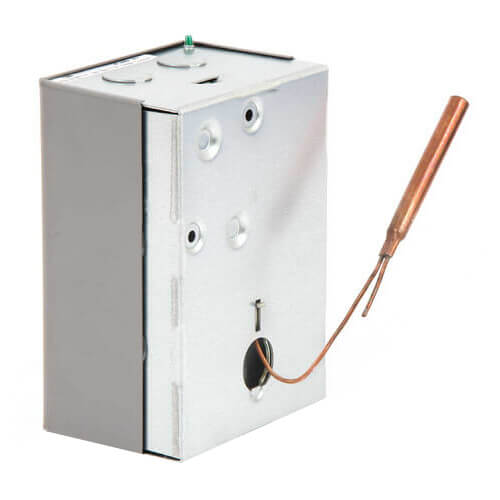

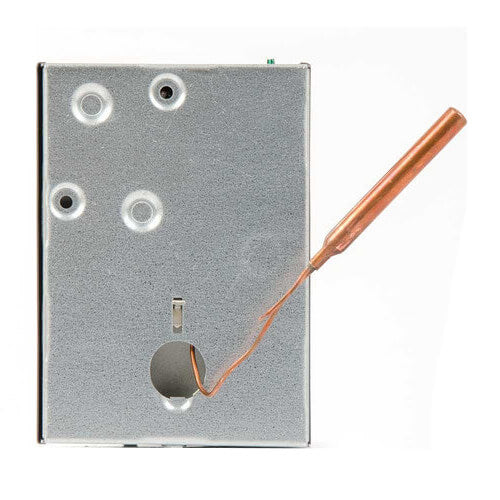

Resideo L8124G1020 High Limit Triple Vertical Mount Aquastat Relay 10-Degree F Differential

Product Description

The Resideo L8124G1020 High Limit Triple Vertical Mount Aquastat Relay is engineered to optimize functionality in hydronic heating systems. It integrates high limit protection with low limit and circulator control, facilitating efficient multi-zone management using separate circulators and R845 Relays for each zone.

• Includes a diaphragm powerhead and Micro Switch+ assembly that adapt to temperature variations in boiler water.
• Can be directly mounted to the boiler, enhancing installation ease.
• Equipped with large transformers and additional terminals for powering low voltage zone valves.

Product Highlights

Designed for robustness, the Resideo Aquastat features adjustable settings for precise temperature management. Its high limit has a fixed 10-degree Fahrenheit differential, and the low limit offers an adjustable 10-25 degree Fahrenheit differential.

Product Information

Standard Information

• Brand: RESIDEO BRAUKMANN
• MPN: L8124G1020
• Application: Triple Aquastat Relay with High Limit Protection

Technical Specifications

• Operating Range, Low Limit (F): 110 F to 220 F
• Operating Range, High Limit (F): 130 F to 240 F
• Differential Temperature (F): High limit: 10 F fixed; low limit: 10-25 F adjustable
• Switching Action: SPST: High & Low Limit
• Maximum Safe Operating Pressure (psi): 200 psi on outside of immersion well, 100 psi on capsule if inserted directly
• Electrical Ratings (burner AFL): Line Voltage: 7.4 A @ 120 Vac; 3.7 A @ 240 Vac
• Voltage: 120 Vac
• Frequency: 60 Hz
• Dimensions: 6 1/8 inches high x 4 3/8 inches wide x 3 1/16 inches deep
