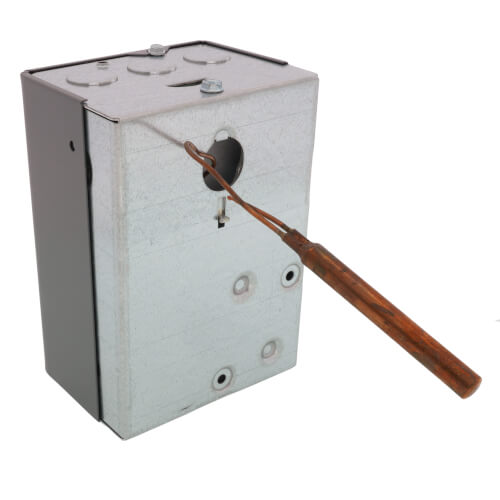

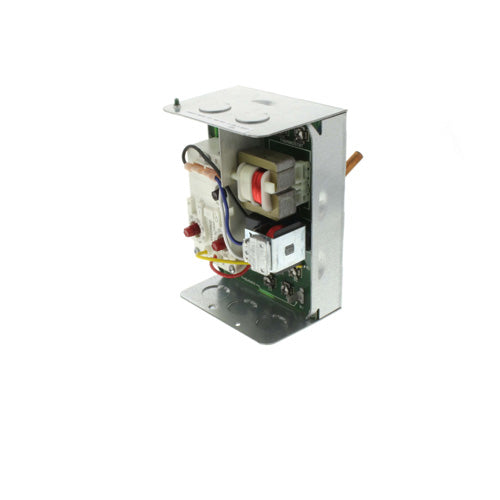

Resideo L8124A1007 High Limit Protection Triple Aquastat Relay

Product Description

The Resideo L8124A1007 is a high limit protection triple aquastat relay designed for use in hydronic heating systems. This immersion-type controller combines high limit protection, low limit control, and circulator control. It ensures safe and efficient operation of the heating system, making it suitable for both residential and commercial applications.

• Compatible with multizone control systems
• Requires a 24 Vac thermostat
• Rated for a maximum operating pressure of two hundred psi

Product Highlights

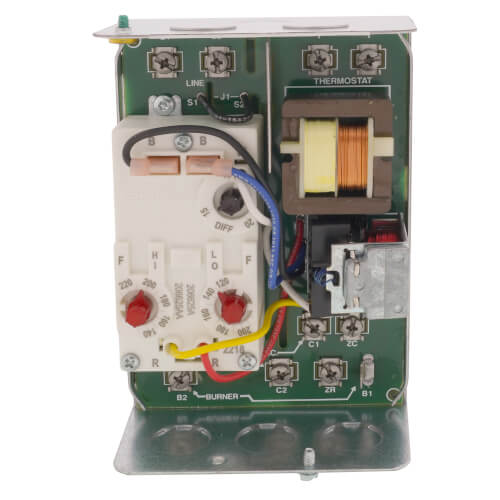

This relay features adjustable high and low limits, accommodating varying heating needs. The robust construction ensures reliability in demanding conditions.

Product Information

Standard Information

• Brand: Resideo
• MPN: L8124A1007

Technical Specifications

• High Limit: 130°F to 240°F adjustable
• Low Limit: 110°F to 220°F adjustable
• Operating Pressure: 200 psi on immersion well, 100 psi on capsule
• Electrical Ratings: 7.4 A at 120 Vac
• Dimensions: 6.125 inches high x 4.375 inches wide x 3.0625 inches deep
• Voltage: 120 Vac
• Weight: 3.16 lbs
• Mounting: Vertical
