Resideo L8100B1128 High Limit Aquastat Controller 100-180 DegreeF Range Dual Bulb

Product Description

The Resideo L8100B1128 High Limit Aquastat Controller is engineered to ensure reliable temperature regulation in water heaters. Specifically designed for intensive usage, this product from Resideo Braukmann is essential for maintaining water temperature within safe limits.

• SPST switching action breaks on temperature rise to ensure safety.
• Integral 39-inch capillary length for efficient temperature sensing.
• Energy cutoff at 200 degrees Fahrenheit for over-temperature protection.

Product Highlights

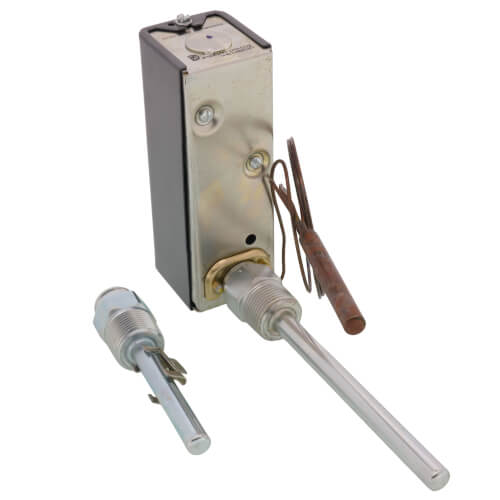

This high limit aquastat controller is crafted to provide not only regulation but also critical safety features through its Energy Cutoff (ECO) built at 200 degrees Fahrenheit. It includes a factory-installed immersion well, enhancing its reliability and ease of installation.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: L8100B1128

Technical Specifications

• Operating Temperature Range: 100 degrees Fahrenheit to 180 degrees Fahrenheit
• Switch Type: SPST, contacts break on temperature rise
• Capillary Length: 39 inches
• Electrical Ratings: 2A maximum at 24 Vac
• Maximum Ambient Temperature: 210 degrees Fahrenheit
• Mounting Type: Immersion Well
• Bulb Size: 3/8 inch
• Differential Temperature: Fixed at 5 degrees Fahrenheit
