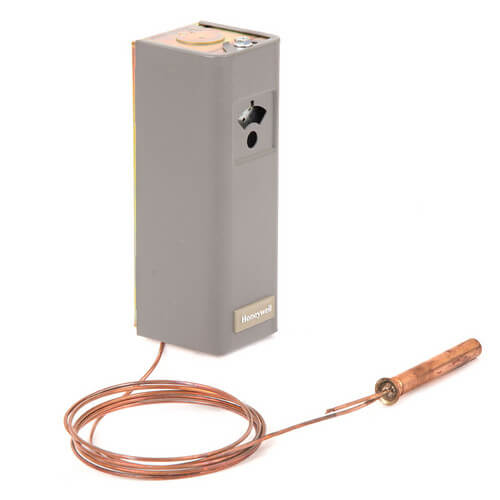

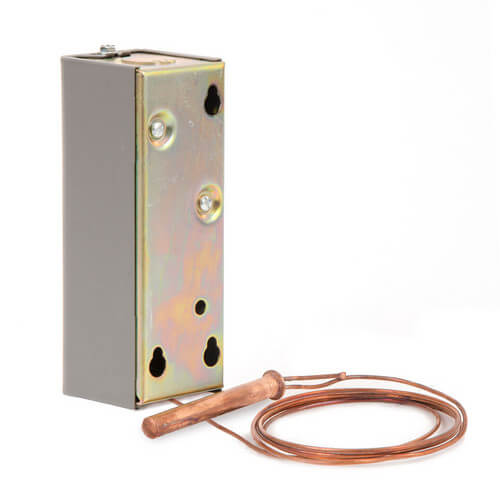

Resideo L6008A1242 Low Limit Circulator Remote Bulb Aquastat 100-200-Degree(F) 5-30-Degree Adj Differential

Product Description

The Resideo L6008A1242 is a low limit circulator remote bulb aquastat designed for precise temperature control. This unit operates within a range of 100 to 200 degrees Fahrenheit and features an adjustable differential of 5 to 30 degrees Fahrenheit.

• Operates between 100-200 degrees Fahrenheit
• Adjustable differential from 5-30 degrees Fahrenheit
• Suitable for boiler, tank, or other container applications

Product Highlights

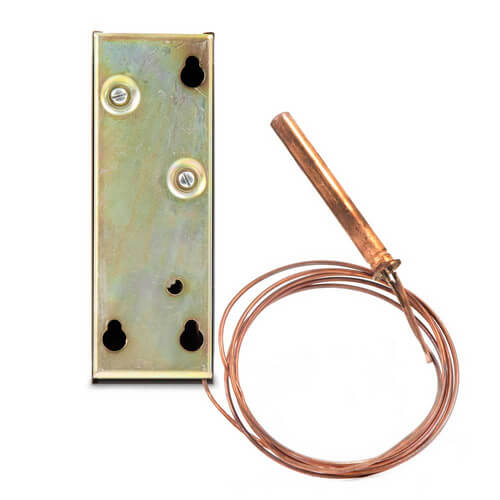

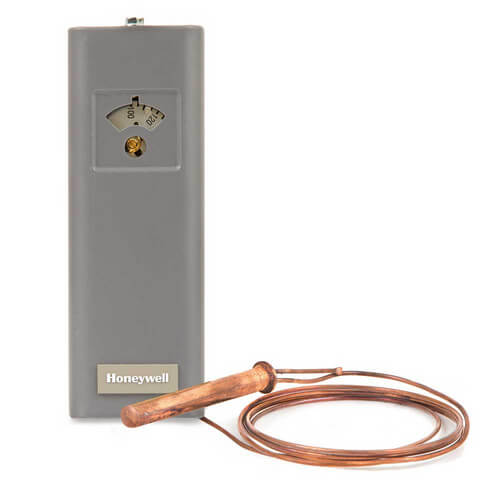

This aquastat features a remote temperature sensing element for rapid response to temperature changes. The micro switch is totally enclosed and snap-acting, ensuring reliable function. A visible control point scale and external adjustment screw make for simple adjustments.

Product Information

Standard Information

• Application: Circulator Control and Low Limit
• Mounting: Horizontal or Vertical

Technical Specifications

• Operating Temperature Range (F): 100 to 200
• Differential Temperature (F): 5 to 30 adjustable
• Bulb Size (in.): 3/8 x 2 7/8 copper
• Capillary Length (in.): 66
• Switching Action: SPDT
• Electrical Ratings: 0.25 A @ 0.25 to 12 Vdc, 8A @ 120 Vac, 5.1A @ 240 Vac, 48A @ 120 Vac (ALR), 30.6A @ 240 Vac (ALR)
• Maximum Ambient Temperature (F): 150
• Case Dimensions (in.): 5 5/8 high x 2 wide x 2 1/8 deep
