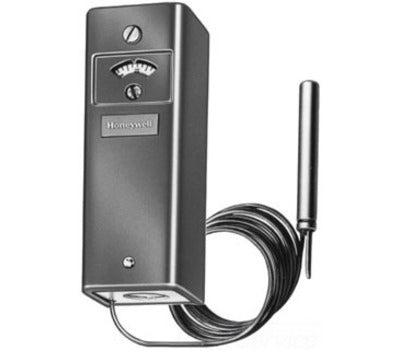

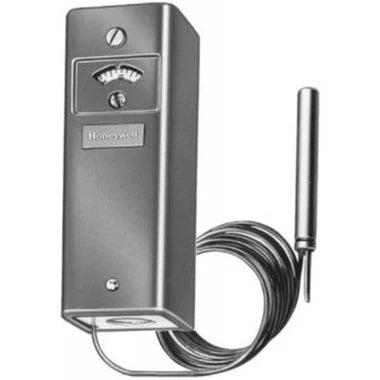

RESIDEO L6008A1192/U Aquastat Circulator and Low Limit 100-240 Degrees Fahrenheit 5-30 DEG F Adjustable Horizontal or Vertical

Product Description

The RESIDEO L6008A1192/U Aquastat Circulator and Low Limit is designed for precise temperature control in industrial settings. It operates within a temperature range of one hundred to two hundred forty degrees Fahrenheit. The adjustable low limit can be set between five to thirty degrees Fahrenheit, providing tailored temperature management. This product supports both horizontal and vertical installation, making it versatile for various applications.

• Wide temperature range for precise heating control.
• Adjustable low limit for customized temperature settings.
• Flexible installation options for diverse setups.

Product Highlights

This aquastat circulator is reliable and rugged, suitable for tough industrial environments. It functions well with boilers, circulation pumps, and other temperature control systems.

Product Information

Standard Information

• Brand: RESIDEO
• Part #: L6008A1192/U

Technical Specifications

• Temperature Range: 100 to 240 degrees Fahrenheit
• Adjustable Low Limit: 5 to 30 degrees Fahrenheit
• Mounting Type: Horizontal, Vertical
• Current Rating: 2.6 amp at 120 V ac, 1.3 amp at 240 V ac
• Voltage Rating: 120 to 240 V ac, 0.25 to 12 V dc
• Switch Configuration: SPST
• Maximum Operating Temperature: +240 degrees Fahrenheit
• Minimum Operating Temperature: +100 degrees Fahrenheit
