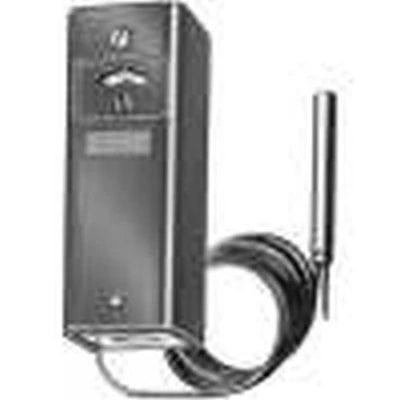

Resideo L6008A1192 AQUASTAT 100-240F 5'CAP, ADJ DF

Product Description

The Resideo L6008A1192 is an AQUASTAT for temperature control in various applications. It operates within a temperature range of one hundred to two hundred forty degrees Fahrenheit. The unit includes a five-foot capillary sensor. This sensor enhances temperature monitoring and control in environments that require precision.

• Adjustable differential range from five to thirty degrees Fahrenheit
• Capillary sensor ensures rapid temperature response
• Suitable for heating systems, process control, and environmental chambers

Product Highlights

The L6008A1192 is used for precise temperature management in various commercial and industrial environments.

Product Information

Standard Information

• Brand: Resideo
• MPN: L6008A1192

Technical Specifications

• Item Number: L6008A1192
• Temperature Range: 100 to 240 degrees Fahrenheit
• Capillary Length: 66 inches
• Dimensions: 5 5/8 inches high x 2 inches wide x 2 1/8 inches deep
• Switch Type: SPDT
• Differential Temperature: Adjustable from 5 to 30 degrees Fahrenheit
• Maximum Ambient Temperature: 150 degrees Fahrenheit
• Electrical Ratings: 8A at 120Vac, 5.1A at 240Vac
