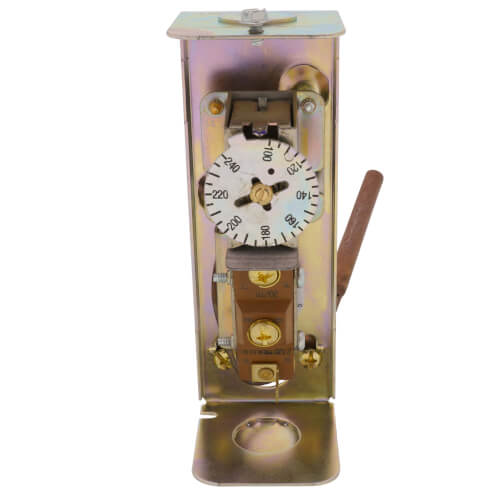

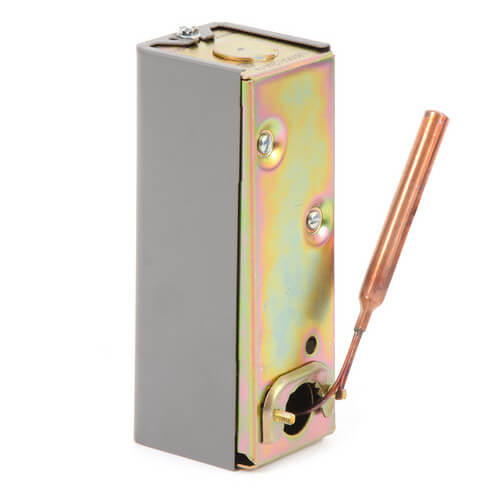

Resideo L6006A1244 High or Low Limit & Circulator Aquastat Controller 100 to 240-Degree Fahrenheit Range

Product Description

The Resideo L6006A1244 Aquastat Controller manages the temperature of fluids within boilers, tanks, and other heating applications. This device is essential for systems requiring precise temperature regulations.

• SPDT switch action for reliable operations.
• Temperature control from 100 to 240 degrees Fahrenheit with a differential of 5 to 30 degrees.
• Suitable for both horizontal and vertical mounting configurations.

Product Highlights

This Aquastat Controller is equipped with a visible control point scale and an external adjustment screw for easy and accurate settings. The robust encapsulated sensor allows for direct or well immersion.

Product Information

Standard Information

• Product Type: Temperature control for heating systems.
• Brand: Resideo Braukmann, a leader in heating solutions.

Technical Specifications

• Mount Type: Can be installed horizontally or vertically.
• Temperature Range (F): Adaptable from 100 degrees to 240 degrees Fahrenheit.
• Differential: Adjustable from 5 to 30 degrees Fahrenheit, allowing for precise temperature management.
• Electrical Ratings: Includes multiple specifications for versatile applications, supporting both low volt DC and high volt AC operations.
• Certifications: UL listed and CSA certified, ensuring compliance with stringent safety standards.
• Case Dimensions: 5 5/8 inches high, 2 inches wide, and 2 1/8 inches deep.
