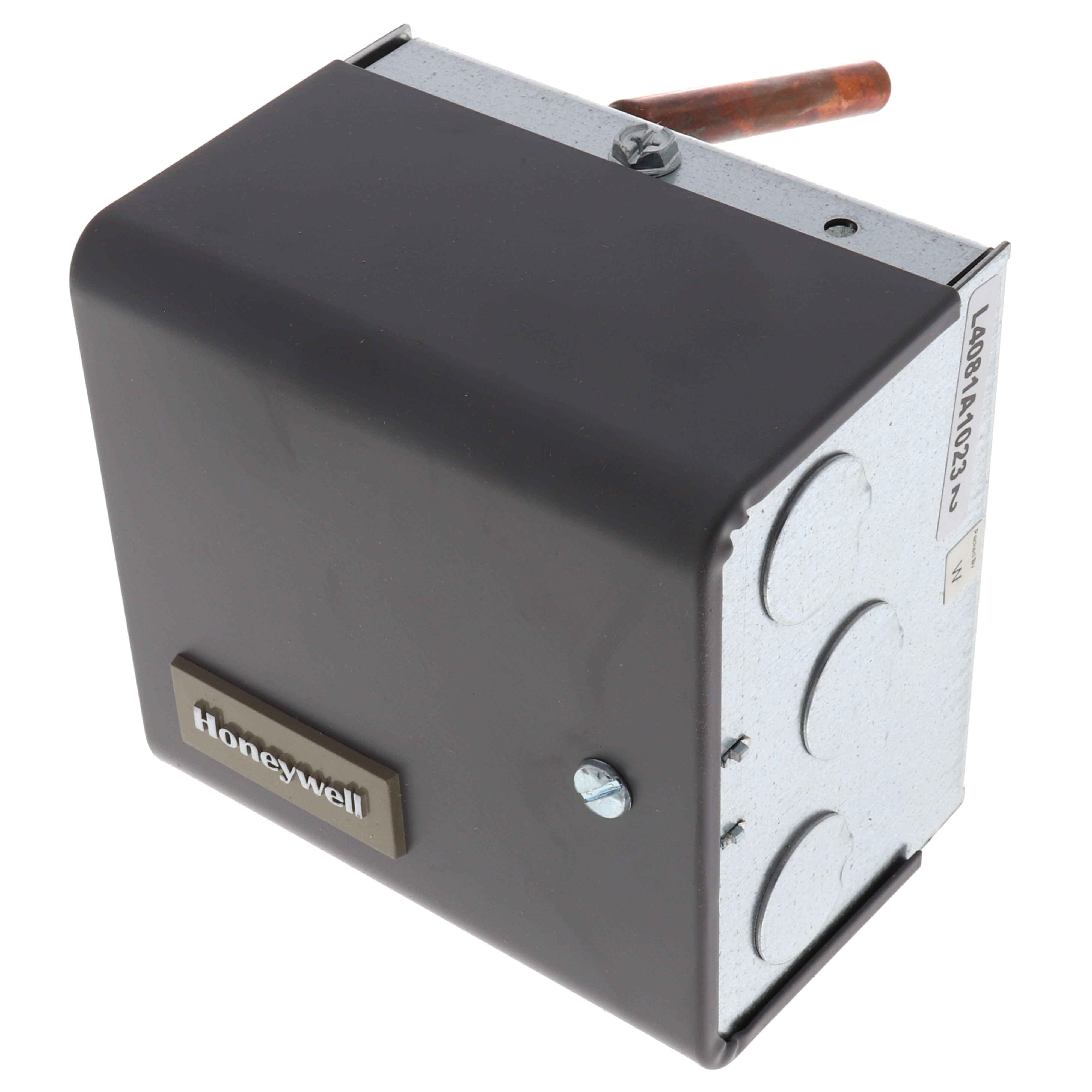

Resideo L4081A1023 High & Low Limit Aquastat 10°F Differential

Product Description

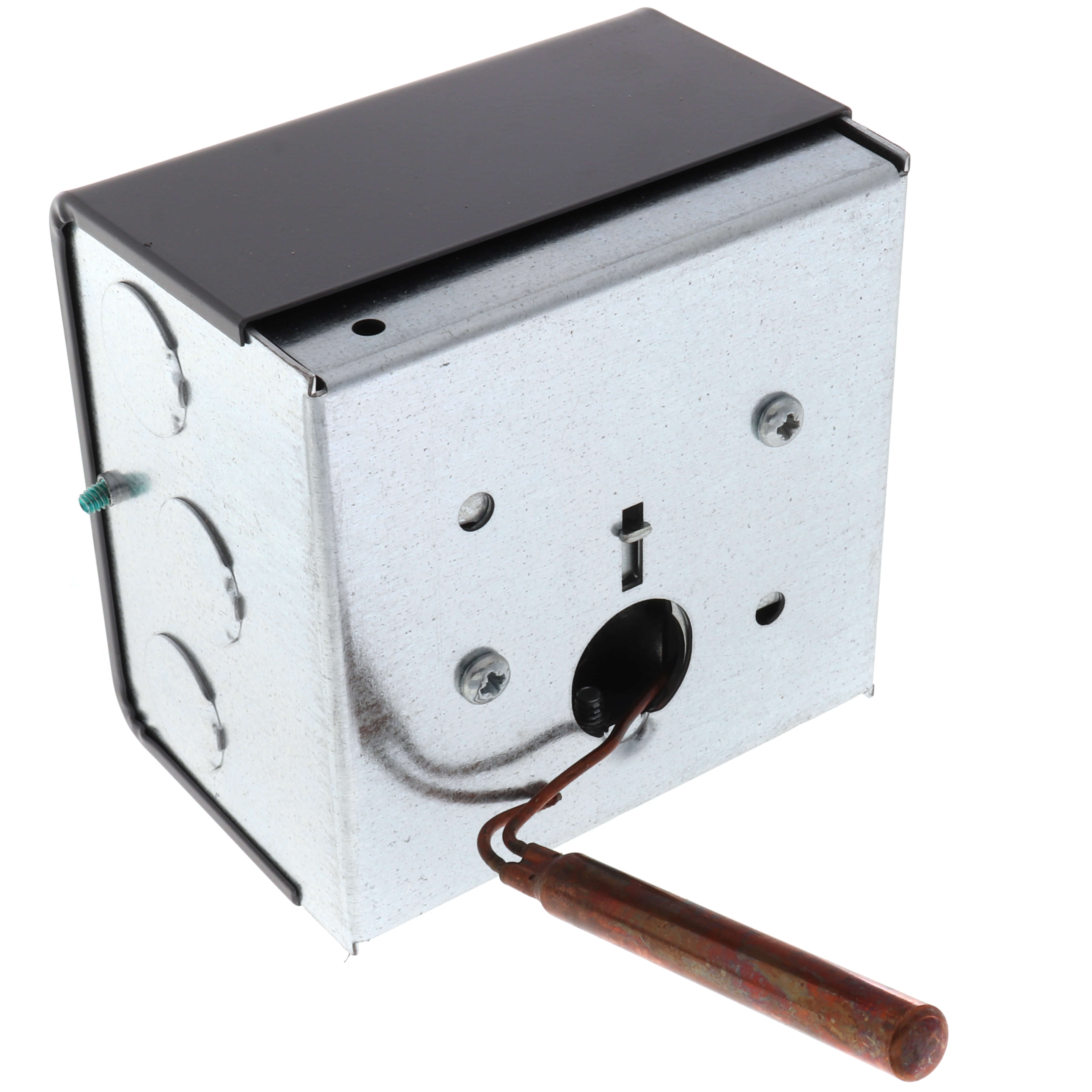

The Resideo L4081A1023 is a dual aquastat designed for horizontal mounting. It features an immersion type liquid-filled sensing element that operates two independent snap switches. One switch serves as a high limit control, while the other can function as a low limit and circulator control based on the application. This aquastat is easy to install and does not require leveling.

• High limit is fixed at 10°F, low limit adjustable from 10°F to 25°F
• Push-in terminals allow for quick connection

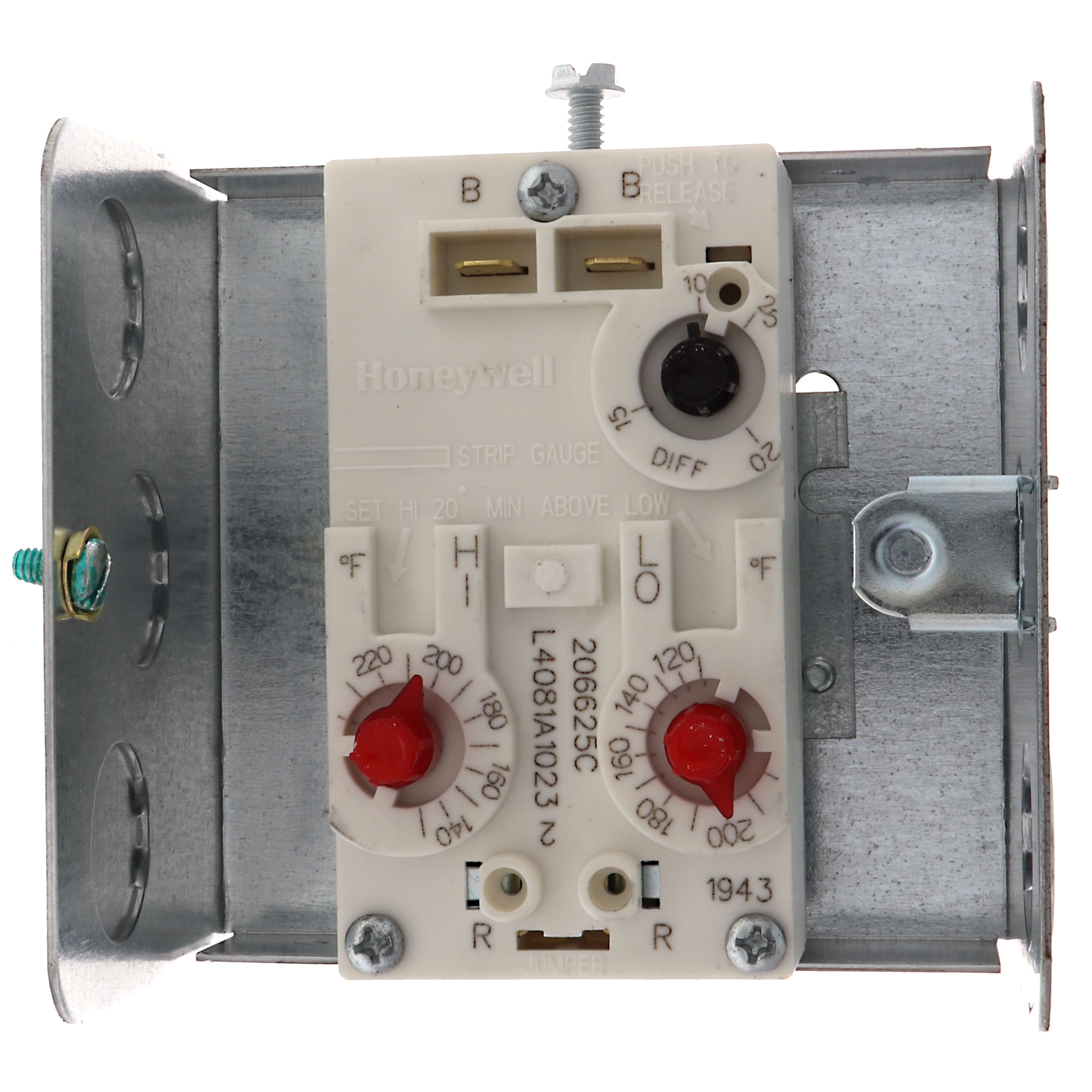

• Built-in adjustments are accessible from the front cover

Product Highlights

This aquastat is perfect for high limit and low limit applications, with a robust design that ensures reliability and ease of use.

Product Information

Standard Information

• Manufacturer: Resideo
• MPN: L4081A1023

Technical Specifications

• Operating Range, Low Limit (°F): 110°F to 220°F
• Operating Range, High Limit (°F): 130°F to 240°F
• Differential Temperature (°F): High limit: 10°F fixed, low limit: 10°F to 25°F adjustable
• Switching Action: SPST (Single Pole Single Throw)
• Electrical Ratings (AFL): 8A @ 120Vac, 5.1A @ 240Vac
• Electrical Ratings (ALR): 48A @ 120Vac, 30.6A @ 240Vac
• Dimensions (inches): 3.875 high x 4.125 wide x 2.75 deep
• Ambient Temperature Limits (°F): 150°F at switches, 265°F at sensing element
