Resideo L4064B2236 Fan and Limit Controller with 200°F High Limit Stop and 8-Inch Insertion

Product Description

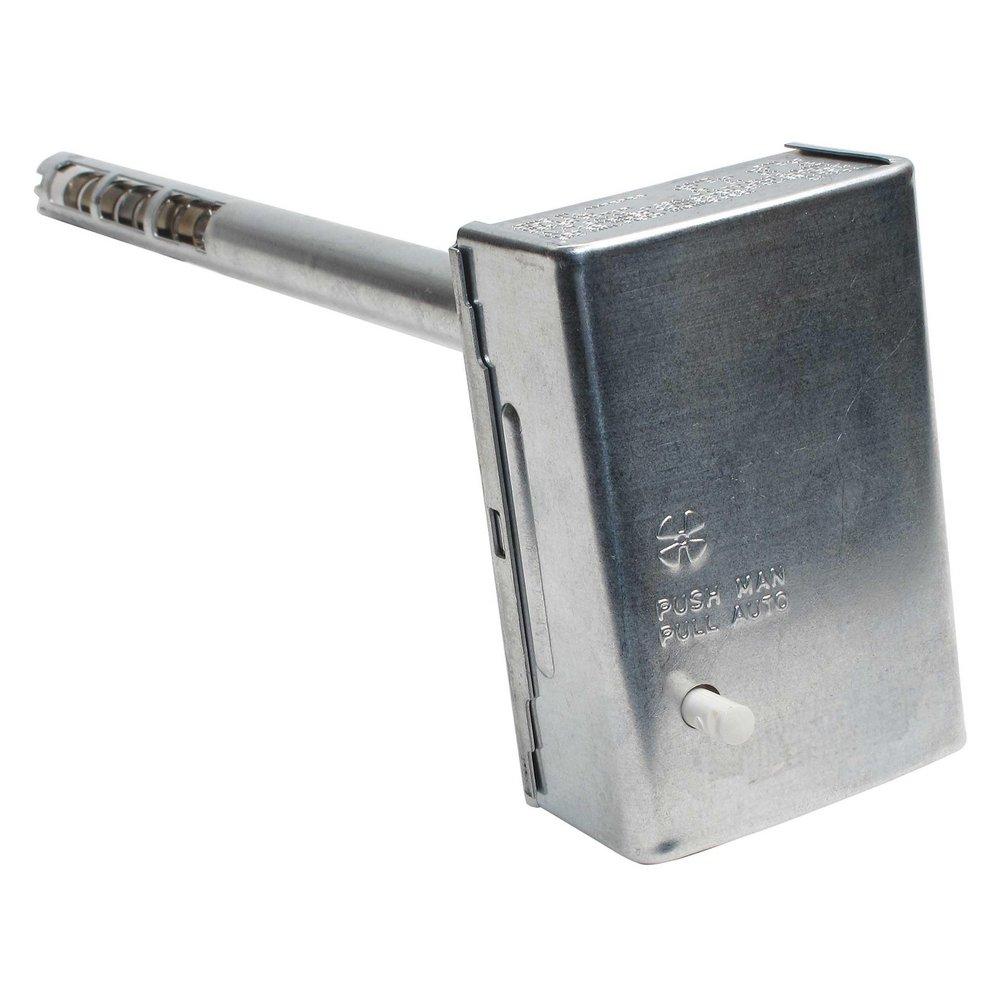

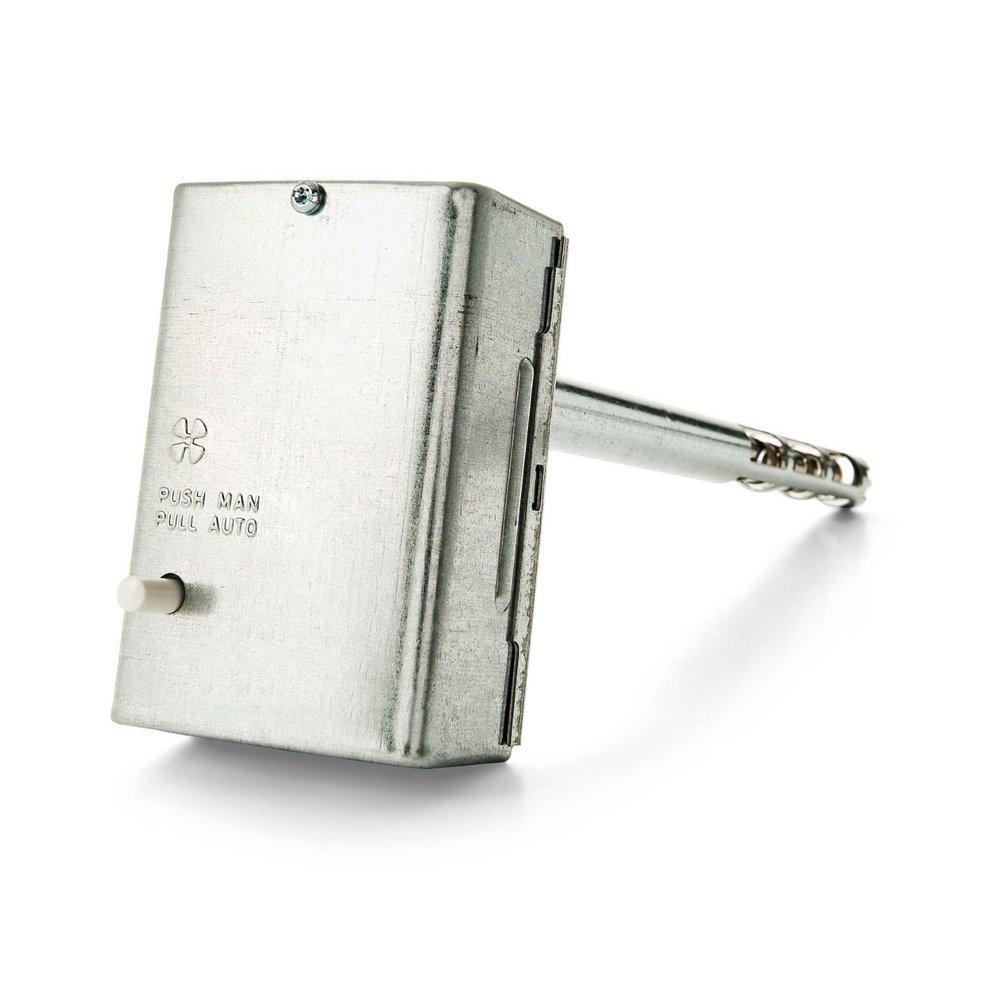

The Resideo L4064B2236 Fan and Limit Controller with an 8-inch insertion is designed for forced air heating systems. It manages the high limit and fan motor to control warmth distribution efficiently.

• Turns fan on and off based on plenum temperature.
• Helical bimetal sensing element.
• Manual fan switch for continuous fan operation.

Product Highlights

This controller features multiple wiring terminal options, including push-in receptacles and field add-on screw terminals, ensuring ease of installation. It adapts to many competitive mounting holes and comes with a manual fan switch that allows continuous fan operation. The device meets ANSI and AGA standards.

Product Information

Standard Information

• Brand: Resideo
• MPN: L4064B2236

Technical Specifications

• Application: Forced warm air heating systems
• High Limit Temperature Range: 100°F to 250°F
• Fan On Range: 65°F to 215°F
• Fan Off Range: 50°F to 200°F
• High Limit Stop: 200°F
• Low Limit Stop: 100°F
• Fan On Stop: 125°F
• Switching Action: Fan switch makes, high limit switch breaks on temperature rise
• Electrical Rating (AFL): 14A @ 120 Vac, 7A @ 240 Vac
• Electrical Rating (ALR): 84A @ 120 Vac, 42A @ 240 Vac
• Electrical Rating Limit (AFL): 8A @ 120 Vac, 4A @ 240 Vac
• Electrical Rating Limit (ALR): 48A @ 120 Vac, 24A @ 240 Vac
• Operating Temperature Range: -40°F to 190°F
• Differential Temperature: High limit 25°F
• Maximum Ambient Temperature: 190°F (Switch), 350°F (Sensing Element)
• Element Length: 8 inches
• Weight: 1.15 pounds
• Length: 3.75 inches
• Width: 13.85 inches
• Height: 5.05 inches
