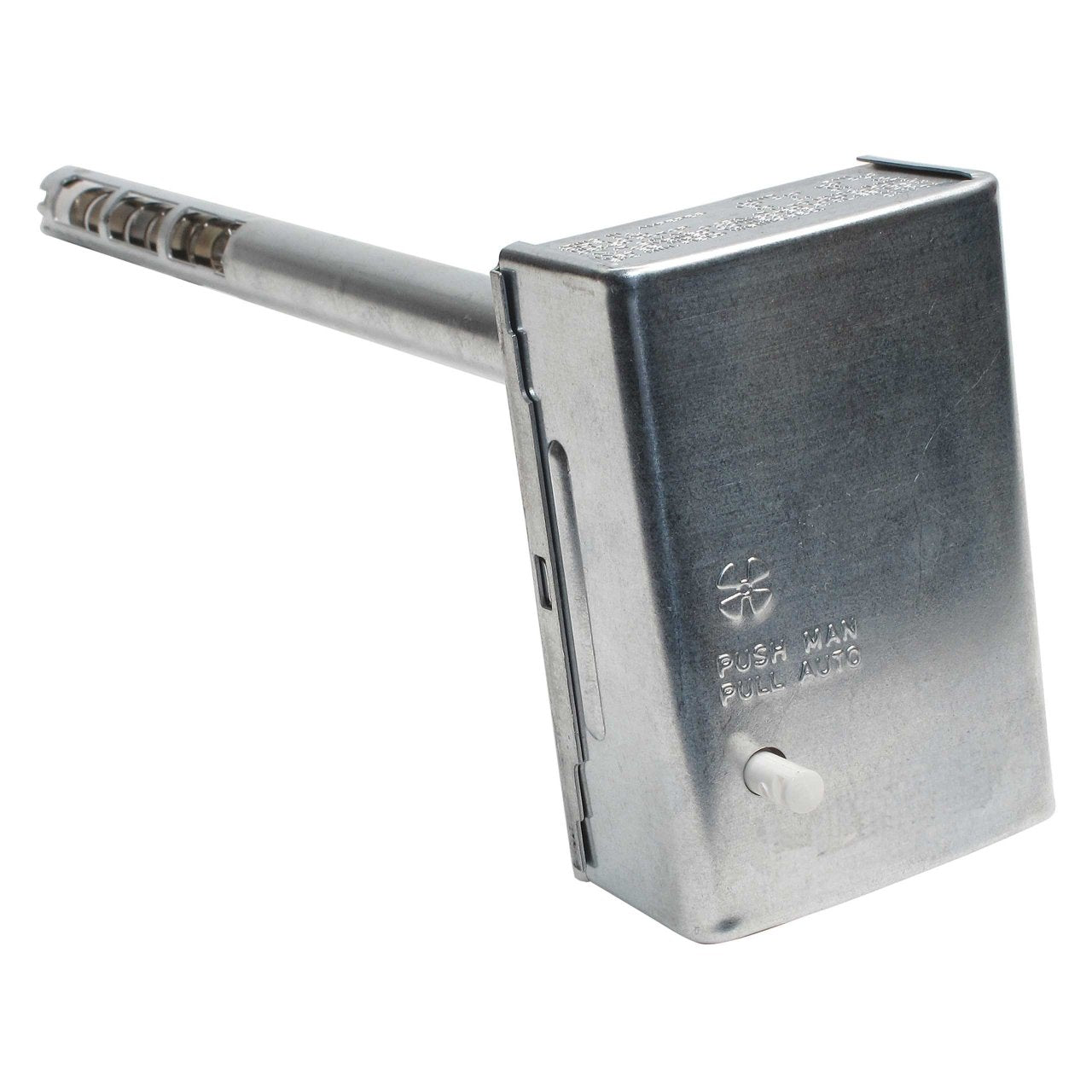

Resideo L4064B2228/U Fan and Limit Controller 120/240 VAC 5 in Insert

Product Description

The Resideo L4064B2228/U fan and limit controller manages the operation of fan motors and high limits in forced air heating systems. The bimetal sensing element adjusts the fan based on plenum temperature, ensuring proper airflow and temperature regulation.

• Three wiring terminal options enable easy installation.
• Designed with push-in receptacles for stripped wire.
• Incorporates female receptacles for 1/4 inch male flag connectors.

Product Highlights

This fan and limit controller is suitable for forced warm air heating systems, offers various connection types, and is designed for straightforward installation.

Product Information

Standard Information

• Brand: Resideo
• MPN: L4064B2228/U

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 14 A at 120 VAC, 7 A at 240 VAC Fan, 8 A at 120 VAC, 4 A at 240 VAC Limit
• Switch Type: Manual
• Opening Temperature: 65 to 215 deg F
• Closing Temperature: 50 to 200 deg F
• Temperature Rating: -40 to 190 deg F
• Connection Type: Screw
• Pilot Duty Rating: 0.25 A at 0.25 to 12 VDC, 2 A at 24 VAC
• Insertion Length: 5 in
• Mounting Type: Surface
• Dimensions: 3 in W x 1-19/32 in D x 4-9/32 in H
• Suitable For Use With: Forced Warm Air Heating Systems
