Resideo L4064B2228 Fan & Limit Controller 5 in Insert

Product Description

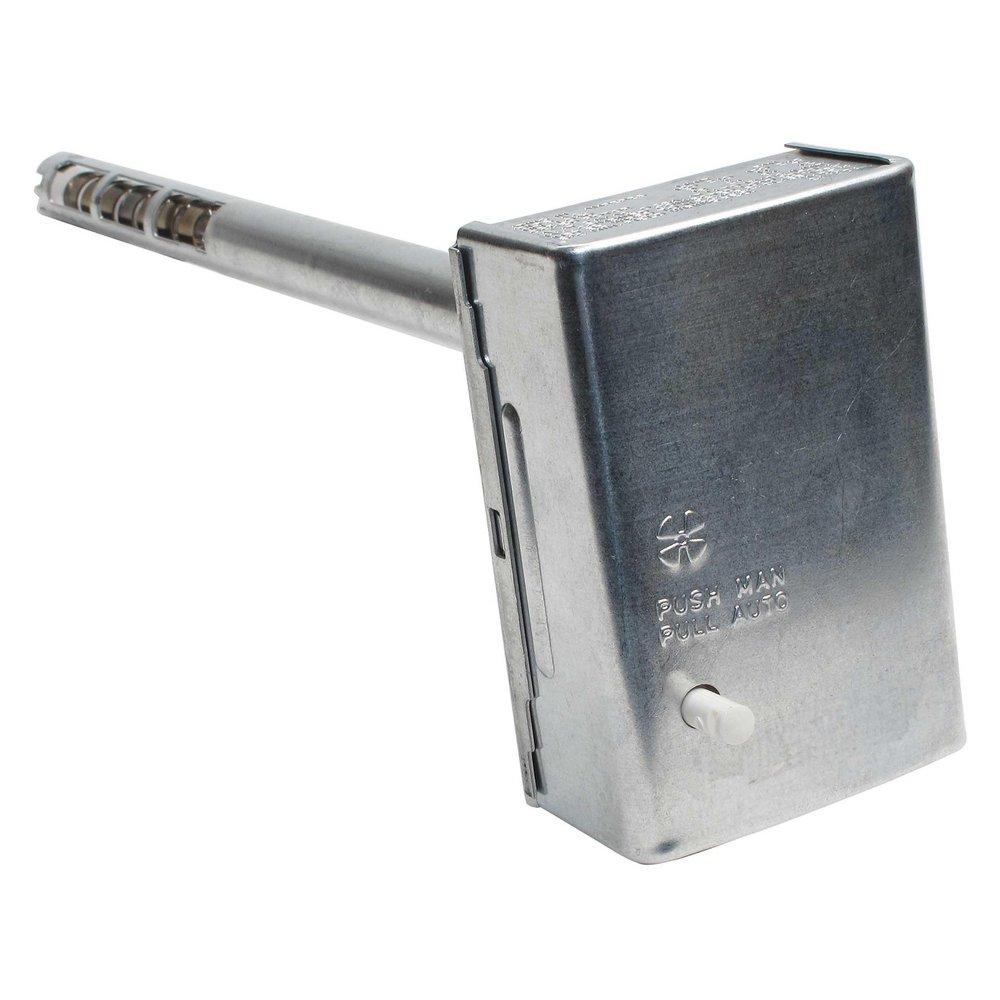

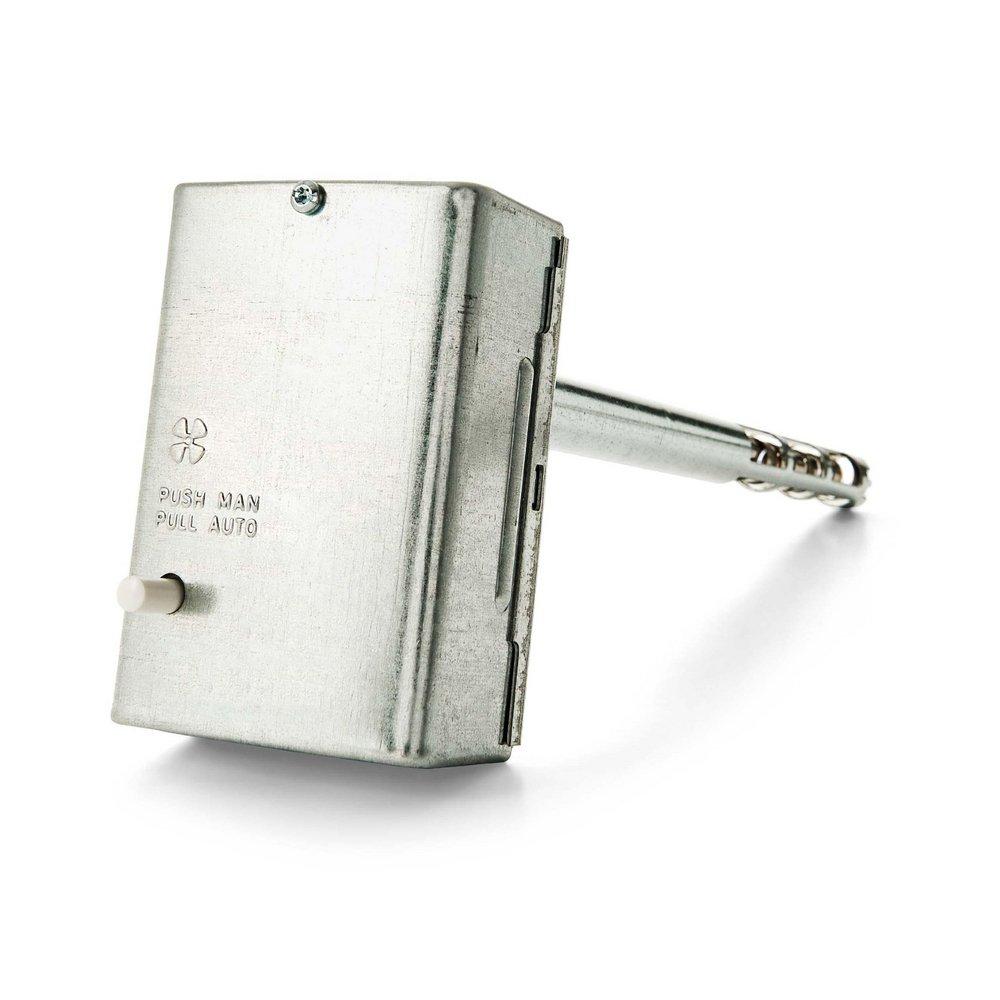

The Resideo L4064B2228 is a fan and limit controller designed for use in forced air heating systems. It regulates the fan operation based on temperature readings from the plenum. This controller features a reliable helical bimetal sensing element to ensure accurate temperature management.

• Controls high limit and fan motor in forced air heating systems.
• Manual fan switch overrides automatic control.
• Compatible with various heating system configurations.

Product Highlights

This controller meets ANSI and AGA standards and comes with a factory-set high limit stop at two hundred degrees Fahrenheit. It is important for maintaining optimal performance in heating applications.

Product Information

Standard Information

• Brand: Resideo
• MPN: L4064B2228

Technical Specifications

• Application: Forced warm air heating systems
• High Limit Temperature Range: One hundred to two hundred fifty degrees Fahrenheit
• Fan On Range: Sixty-five to two hundred fifteen degrees Fahrenheit
• Fan Off Range: Fifty to two hundred degrees Fahrenheit
• Electrical Rating: Fourteen A at one hundred twenty VAC; seven A at two hundred forty VAC
• Operating Temperature Range: Minus forty to one hundred ninety degrees Fahrenheit
• Differential Temperature: High limit twenty-five degrees Fahrenheit
• Weight: One point fourteen pounds
