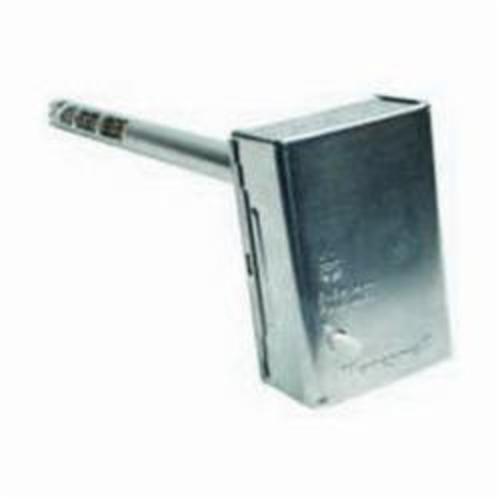

Resideo L4064B2210/U Control Fan and Limit 11-1/2 in

Product Description

Resideo Control Fan and Limit Controller, MPN L4064B2210/U, is designed for effective temperature regulation. It operates in temperature ranges from minus forty to one hundred ninety degrees Fahrenheit. This product features an eleven and one-half inch element and ensures versatile usage across different HVAC applications.

• Temperature range from -40 to 190 degrees Fahrenheit.
• Surface and universal mounting options.
• Provides precise fan control and high limit settings.

Product Highlights

This control unit supports accurate temperature sensing, enabling safe operation and preventing system overheating.

Product Information

Standard Information

• Brand: Resideo
• Manufacturer Part Number: L4064B2210/U

Technical Specifications

• Application: For forced warm air heating systems
• Differential: 25 degrees Fahrenheit high limit
• Dimensions: 3 inches W x 1-19/32 inches D x 4-9/32 inches H
• Domestic/Import: Import
• Element: 11-1/2 inches
• Inductive Rating: 14 A
• Mounting Type: Surface/Universal
• Pilot Duty Rating: 0.25 A
• Resistive Rating: 84 A
• Series: L4064
• Standards/Approvals: CSA File No. LR1622, UL File No. MP466, Guide MBPR
• Temperature Rating: -40 to 190 degrees Fahrenheit
