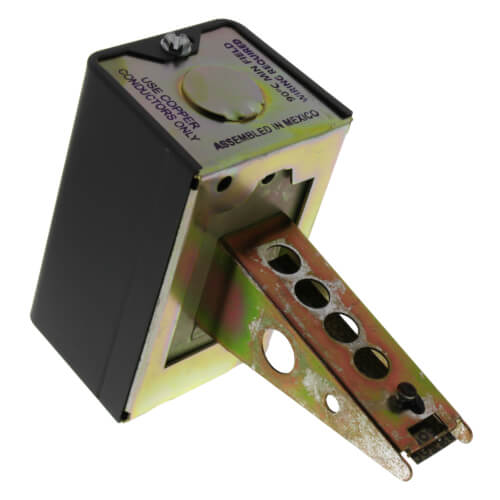

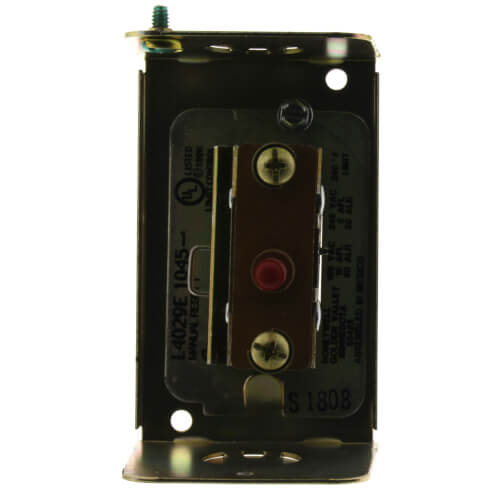

Resideo L4029E1045 Limit Control Manual Reset 240F 3 Inch Insertion

Product Description

The Resideo L4029E1045 Limit Control is designed to enhance safety in HVAC systems by monitoring air temperature and shutting off the fan when critical temperatures are reached. This device plays a crucial role in fire prevention, turning off ventilation systems to stop the spread of flames.

• Shuts off the ventilation system when detecting high temperatures associated with fires.
• Features an internal snap-acting switch triggered by a bimetal strip for quick response.
• Requires manual reset to resume operations.

Product Highlights

Equipped with manual reset and a fixed temperature setting of 240 degrees Fahrenheit, this limit control is essential for maintaining safety in air conditioning and ventilating systems. Ideal for use in both commercial and residential HVAC systems.

Product Information

Standard Information

• Brand: Resideo
• MPN: L4029E1045
• Category: Fan and Limit Controls

Technical Specifications

• Temperature Setting: 240F fixed
• Insertion Length: 3 inches
• High Limit Stop: 135F
• Switch Type: Normally closed SPST, opens on temperature rise
• Electrical Ratings: Up to 10A at 120 Vac and 5A at 240 Vac
• Pilot Duty: 0.25 A at 0.25 to 12 Vdc
• Max Ambient Temperature: Switch: 190F, Sensing Element: 350 F
• Certifications: Listed: File No. MP466, Certified: File No. LR95329-5
