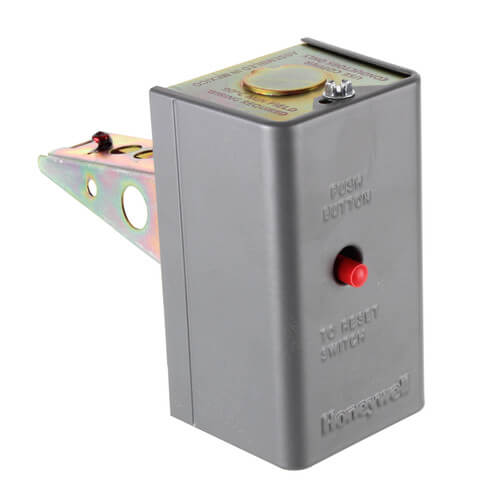

Resideo L4029E1029 Limit Control Manual Reset 200 F Fixed 3 Inch Insertion

Product Description

The Resideo L4029E1029 Limit Control is engineered to open a line or low voltage circuit when it senses a critical air temperature, ensuring safety in HVAC systems. This device functions optimally as a fire thermostat within ductwork setups, cutting off the fan if fire-like temperatures are detected, hence preventing fire spread. Its suitability extends to warm air furnaces, ensuring burner lockout in case of fan failure.

• Manual reset required.

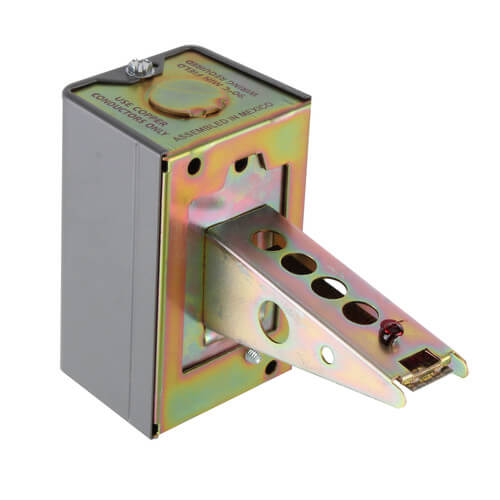

• Direct insertion into air stream allows quick response to temperature changes.
• Supports various electrical ratings for versatile applications.

Product Highlights

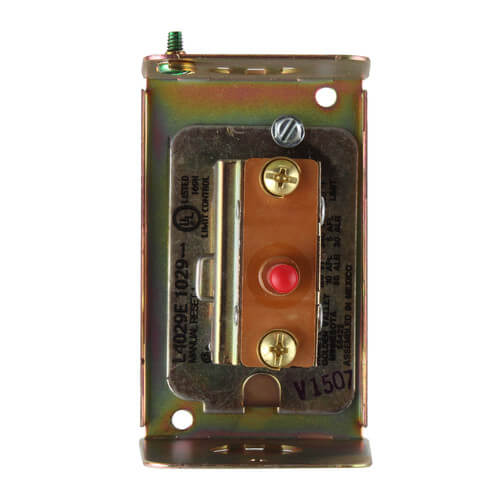

Designed for reliability and safety, the Resideo L4029E1029 features a bimetal strip that reacts swiftly to temperature alterations. Its SPST switch action necessitates manual intervention to reset after activation, which ensures rigorous control in critical situations.

Product Information

Standard Information

• Brand: Resideo
• MPN: L4029E1029
• Applications: HVAC systems, Warm air furnaces

Technical Specifications

• Element Insertion Length: 3 inches
• High Limit Stop: 200 F
• Electrical Ratings: Up to 60 A @ 120 Vac; 30 A @ 240 Vac
• Pilot Duty Ratings: 0.25 A @ 0.25 to 12 Vdc
• Maximum Ambient Temperature: Switch: 190F; Sensing Element: 350 F
• Approvals: Listed File No. MP466, Certified File No. LR95329-5
