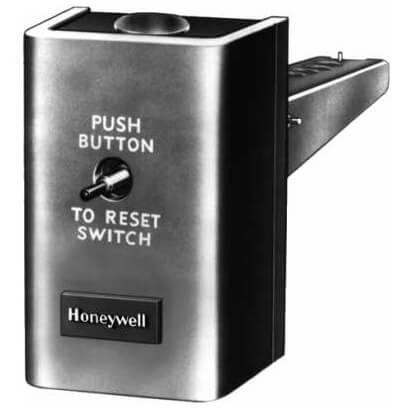

Resideo L4029E1011 Limit Control Manual Reset 135°F 3 Inches

Product Description

The Resideo L4029E1011 Limit Control is an essential safety device in HVAC systems, specifically designed to halt fan operation if air temperatures reach fire-indicative levels. This control unit is pivotal for fire safety in air duct systems of air conditioning and ventilating units. It directly inserts into the air stream, allowing for rapid response to temperature changes and requires a manual reset to resume operation.

• Activates shutdown on fire-indicative air temperatures.
• Features a manual reset function for safety and control.
• Equipped with a bimetal strip for fast temperature response.

Product Highlights

This limit control is crucial for preventing the spread of fire by disabling the fan in hazardous conditions. Ideal for integration with any warm air furnace systems, it ensures operational safety and compliance.

Product Information

Standard Information

• Brand: Resideo Braukmann
• Model: L4029E1011

Technical Specifications

• Temperature Range: Fixed at 135°F
• Insertion Length: 3 inches
• Electrical Ratings: Up to 10 A at 120 Vac, 5 A at 240 Vac
• Maximum Ambient Temperature: Sensing Element: 350°F, Switch: 190°F
• Approvals: Certified by MP466, Vol. 8, MBPR2, File No. LR95329-5
