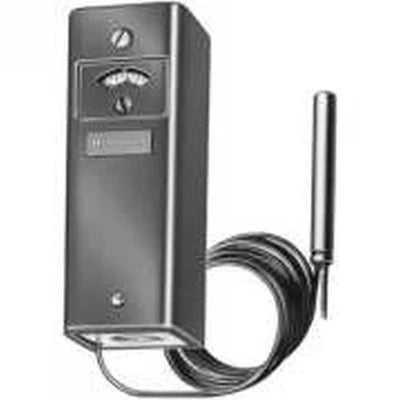

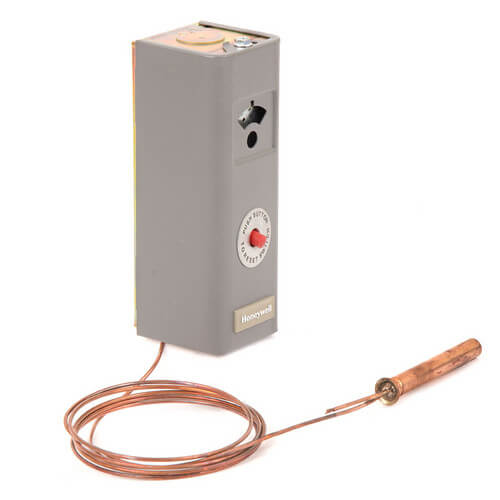

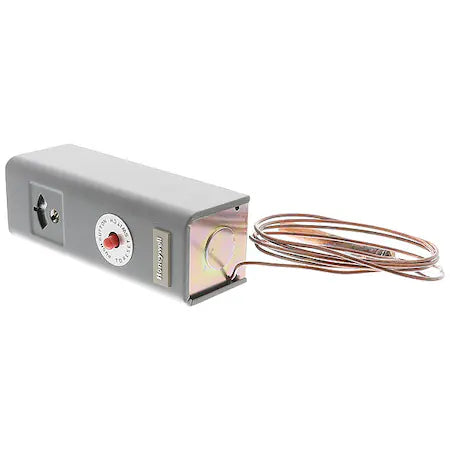

RESIDEO L4008E1313 Remote Bulb Aquastat 100-200 Degree F Range Manual Reset

Product Description

The Resideo L4008E1313 Remote Bulb Aquastat is a manually resettable device designed for temperature regulation in HVAC systems. Engineered by Resideo, a leading name in heating supplies, this Aquastat is optimal for both horizontal and vertical installations in industrial applications, including boilers, tanks, or other containers.

• Operates within a temperature range of 100 degrees Fahrenheit to 200 degrees Fahrenheit.
• Incorporates a 66-inch capillary length for versatile installation.
• Features SPST, snap-acting switch that breaks contact on temperature rise.

Product Highlights

This robust device guarantees rapid response to temperature changes and precise temperature control. The visible control point scale and external adjustment screw facilitate easy setting, ensuring efficient operation and reliability in demanding environments.

Product Information

Standard Information

• Brand: Resideo
• MPN: L4008E1313

Technical Specifications

• Operating Temperature Range (F): 100 to 200
• Capillary Length (inches): 66
• Electrical Ratings: 8A at 120 Vac, 0.25 A at 0.25 to 12 Vdc
• Mounting Type: Horizontal or Vertical
• Dimensions (inches): 5 5/8 high x 2 wide x 2 1/8 deep
• Approvals: UL Component Recognized, CSA Certified
