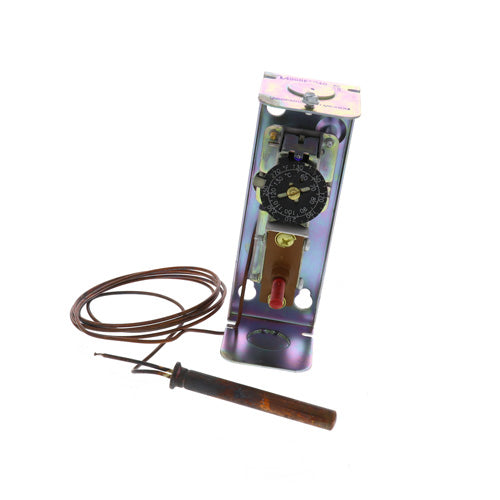

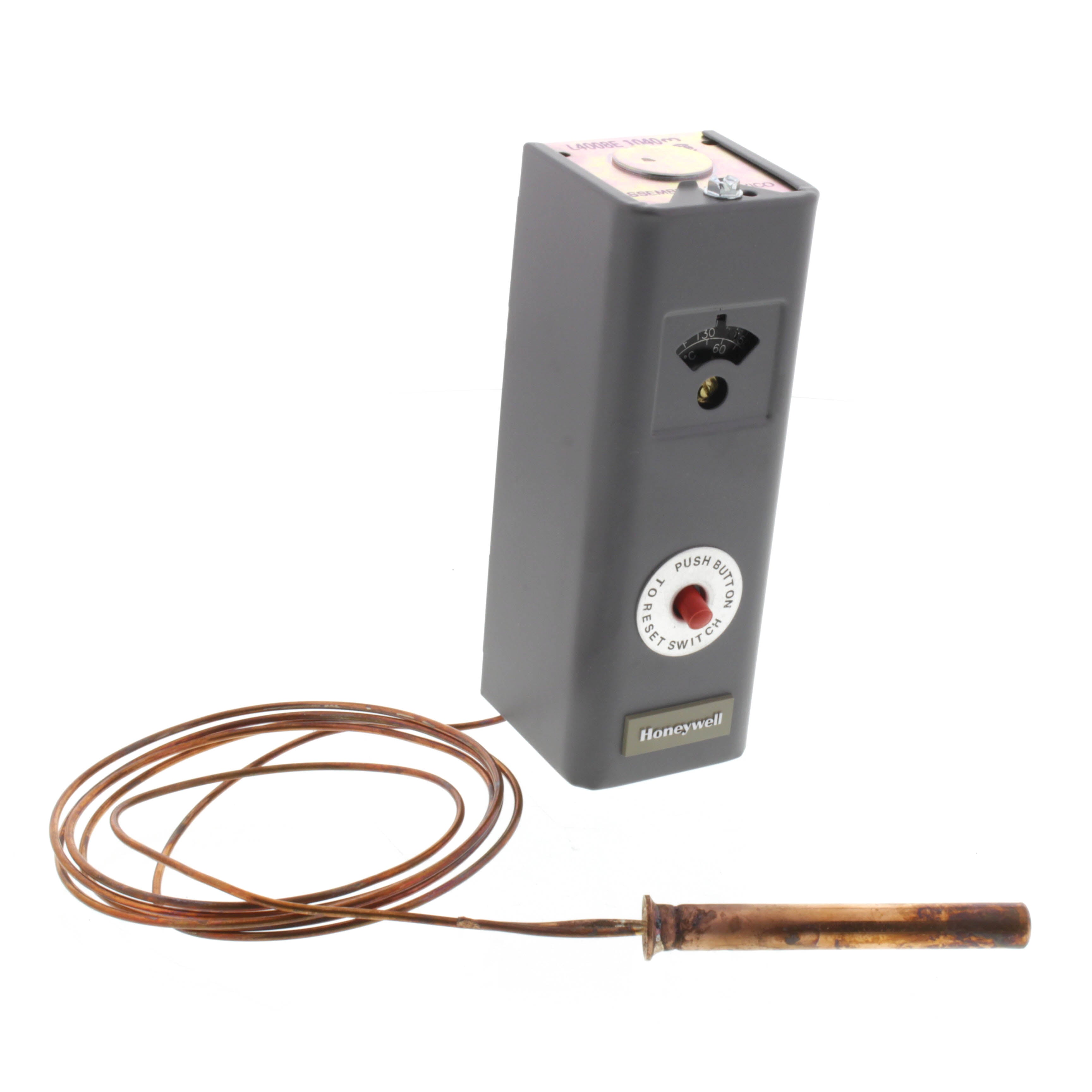

Resideo L4008E1040 High Limit Manual Reset Aquastat Controller

Product Description

The Resideo L4008E1040 High Limit Manual Reset Aquastat Controller is engineered to limit or regulate the temperature of liquids in boilers or tanks and can sense air temperature variations in ducts or outdoors. This high precision device is essential for maintaining optimal operating conditions in heating systems.

• Includes a remote temperature sensing element for rapid response to temperature changes.
• Features a Single Pole Single Throw (SPST) Micro Switchinchu2122 snap-acting switch for reliable operation.
• Mountable horizontally or vertically, accommodating various installation requirements.

Product Highlights

This aquastat controller is designed for both safety and efficiency, with a manual reset feature and a broad operating temperature range from 130 degrees Fahrenheit to 270 degrees Fahrenheit. Its robust design is complemented by a visible control point scale and an external adjustment screw, simplifying setup and adjustments.

Technical Specifications

• Brand: Resideo
• MPN: L4008E1040
• Type: High Limit, Manual Reset Aquastat Controller
• Temperature Range: 130 F to 270 F (54 C to 132 C)
• Electrical Ratings: Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac, 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac, 30.6A @ 240 Vac
• Mounting: Horizontal or Vertical
• Switching Action: SPST, contacts break on temperature rise
• Capillary Length: 66 inches
• UL & CSA Listings: UL Component Recognized, CSA Certified
