Resideo L4008A1015 High or Low Limit Remote Bulb Aquastat 100-240°F 5-30°F Adj Differential

Product Description

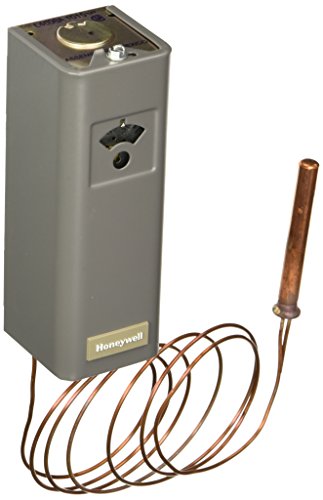

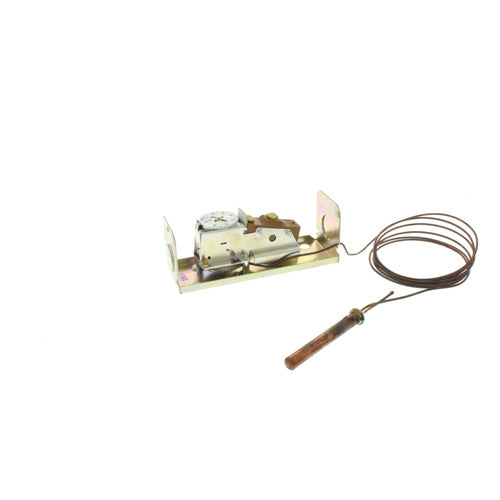

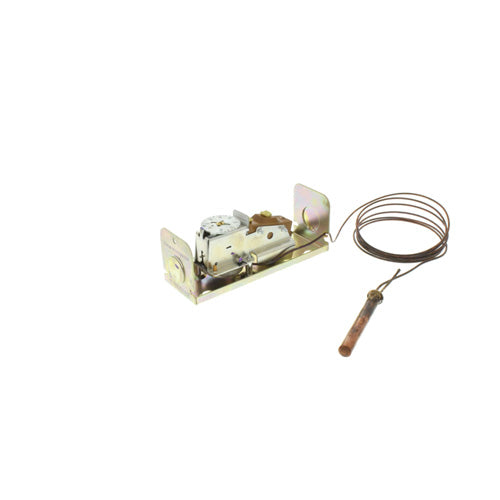

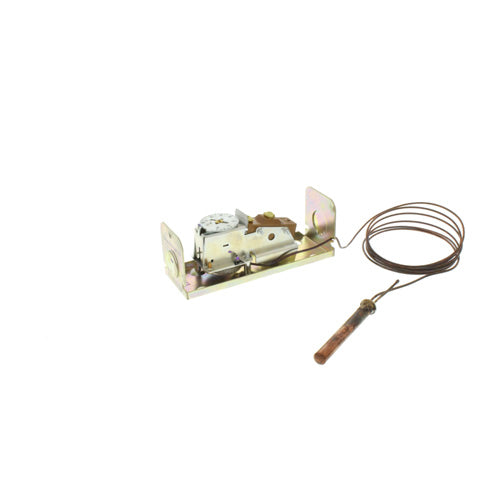

The Resideo Braukmann L4008A1015 Aquastat is engineered for precise temperature control in boilers or tanks. This device is capable of sensing and regulating the temperature of liquids and can also monitor duct or outside air temperature.

• Remote bulb senses and responds to temperature changes swiftly
• Includes a micro switch that is snap-acting for reliable operation
• Features easy setting with visible control point scale and external adjustment

Product Highlights

Designed for durability and efficiency, the Resideo Braukmann L4008A1015 Aquastat offers flexible mounting options and is equipped with a 5.5 feet capillary for extended reach, suitable for both high and low limit applications.

Product Information

Standard Information

• Electrical Ratings: Ranges from 0.25 A at low voltage up to 5.1A at 240 Vac
• Dimensions: 5 5/8 inches high, 2 inches wide, 2 1/8 inches deep

Technical Specifications

• Temperature Range: 100°F to 240°F
• Adjustable Differential: 5°F to 30°F
• Mounting: Can be installed horizontally or vertically
• Case Material: UL Component Recognized, guide no. MBPR2
• Electrical Ratings: 8A at 120 Vac, 5.1A at 240 Vac, 48A at 120 Vac ALR, 30.6A at 240 Vac ALR
• Approval: Certified by Canadian Standards Association, file no. LR95329-1
