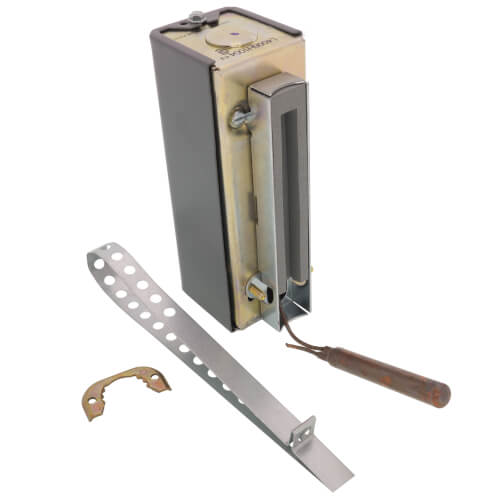

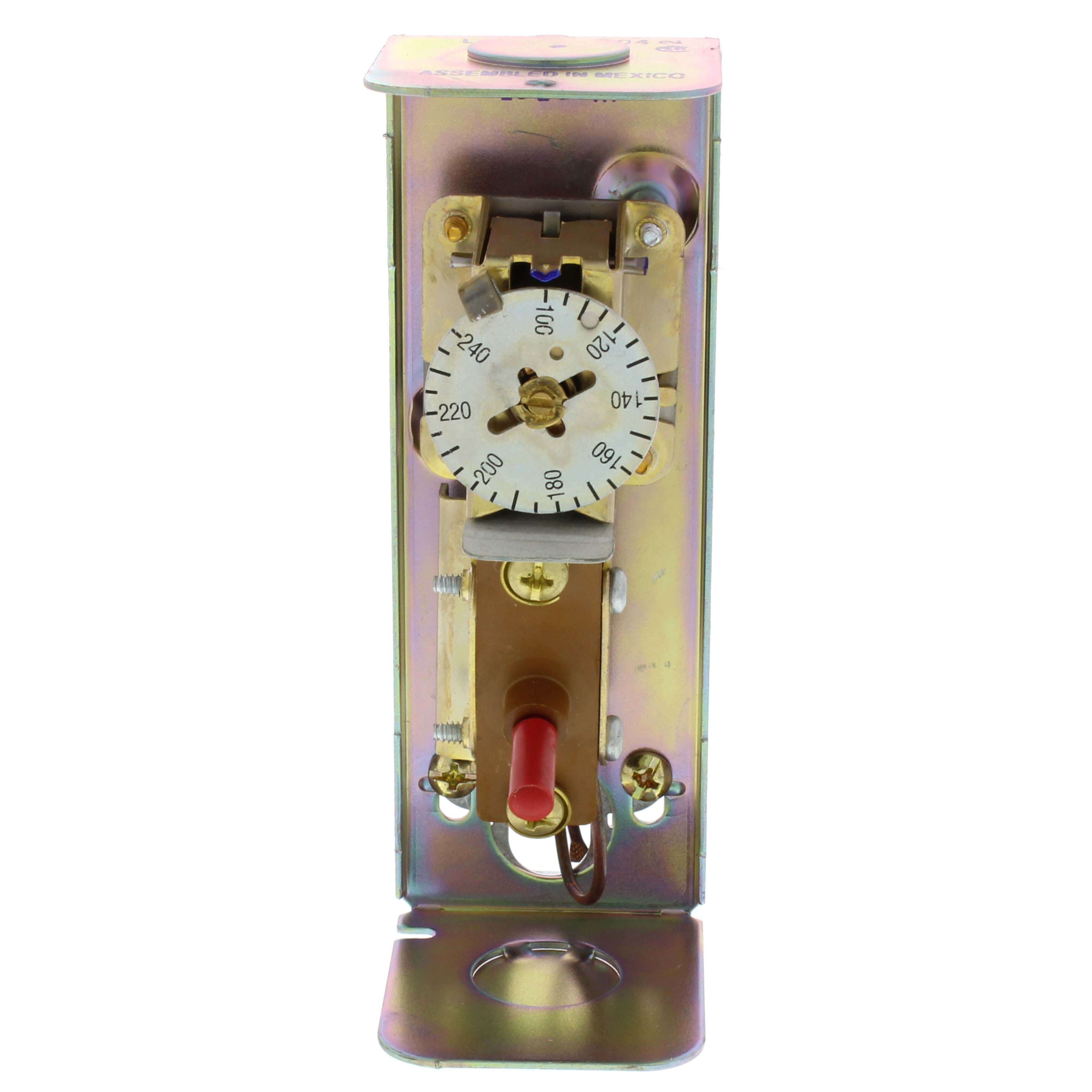

Resideo L4006H1004 High Limit Strap-On Aquastat 100-240 Manual Reset

Product Description

The Resideo L4006H1004 is a high limit strap-on aquastat designed for use in hot water systems. This device operates within a temperature range of one hundred degrees Fahrenheit to two hundred forty degrees Fahrenheit. It is built for manual reset functionality, ensuring it can effectively control high-temperature system conditions.

• Voltage rating of one hundred twenty volts.
• Includes a bracket for secure strap-on mounting.
• Certifications from Underwriters Laboratories and Canadian Standards Association.

Product Highlights

This aquastat is essential for applications requiring high limit control in hydronic systems.

Product Information

Standard Information

• Brand: Resideo
• MPN: L4006H1004

Technical Specifications

• Type: High Limit Strap-On Aquastat Manual Reset
• Voltage: 120 volts
• Switching Action: SPST, contacts break on temperature rise
• Operating Temperature Range: 100°F to 240°F
• Maximum Ambient Temperature: 150°F
• Case Dimensions: 5.625 inches high x 2 inches wide x 2.125 inches deep
• Mounting: Horizontal or Vertical
