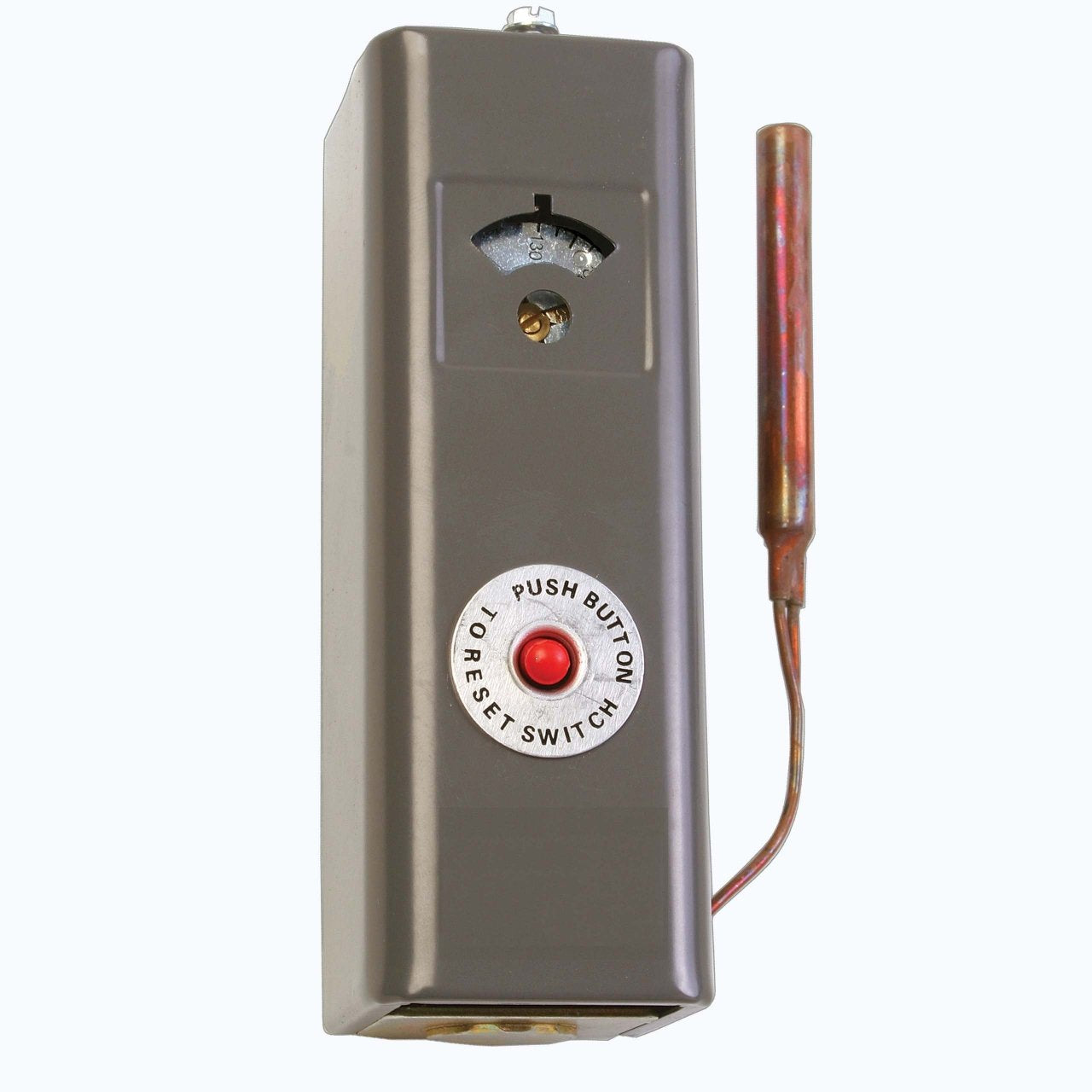

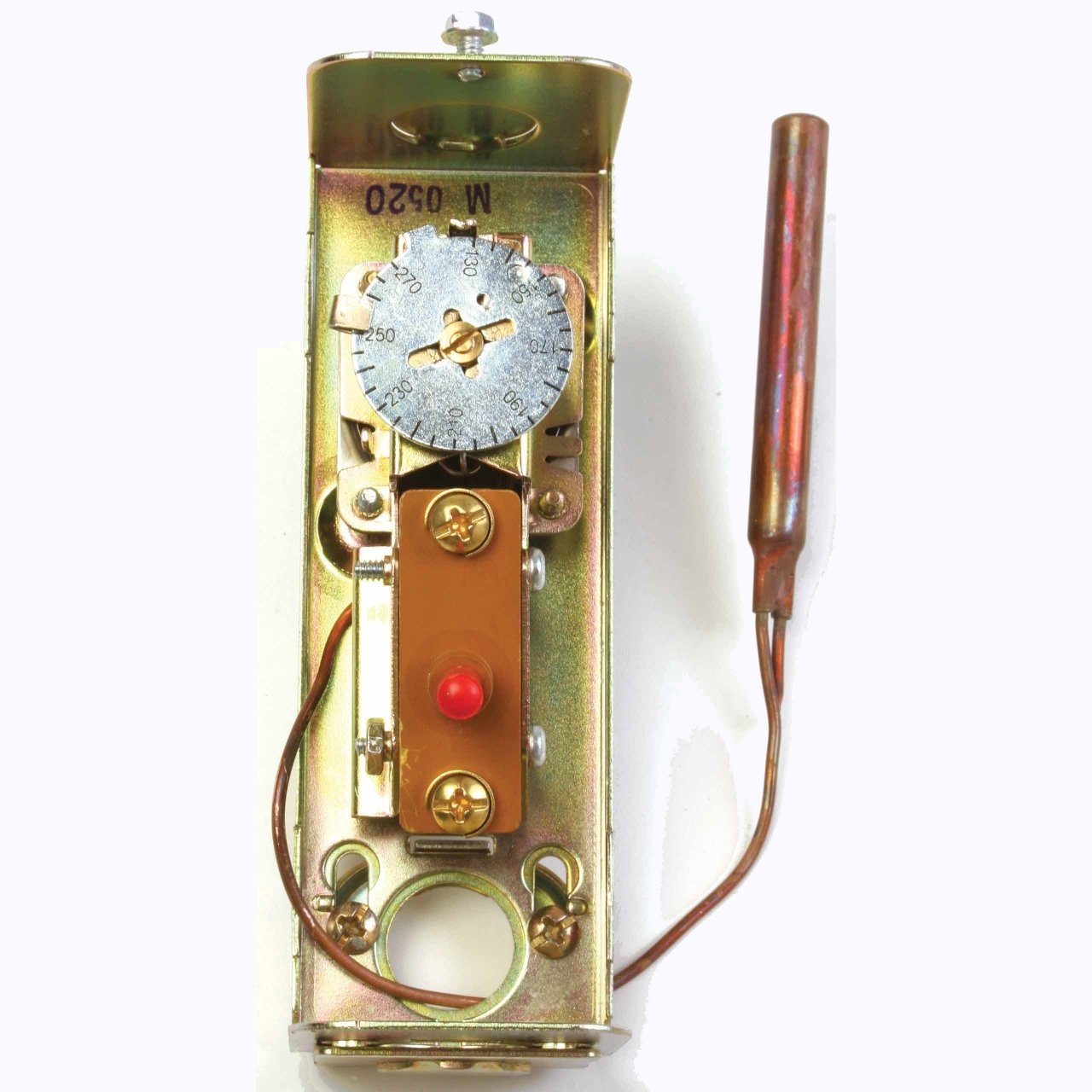

Resideo L4006E1125/U Aquastat High Limit Manual Reset Less Well 120 to 240 V 100-200 Degrees Fahrenheit Horizontal/Vertical

Product Description

The RESIDEO L4006E1125/U Aquastat is an immersion-type device designed for high limit manual reset applications in heating systems. It accurately regulates liquid temperatures in boilers, storage tanks, and hydronic heating systems, preventing overheating by automatically shutting down the system. Operating within a 100-200 degrees Fahrenheit range, it supports both horizontal and vertical mounting. This aquastat features a durable construction and contacts that break on temperature rise, ensuring reliable control.

• High limit manual reset aquastat for industrial automation applications.
• Regulates heating systems within a 100-200°F range, supporting horizontal/vertical mounting.
• Monitors temperature and prevents overheating with automatic system shutdown.

Product Highlights

Designed for use in boilers, water heaters, and HVAC systems to ensure temperature control and prevent overheating.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: L4006E1125/U
• Country of Origin: N/A

Technical Specifications

• MPN: L4006E1125/U
• Brand: Resideo
• Item Number: HONL4006E1125
• Manufacturer: Resideo Technologies
• Type: Single Function Aquastat
• Color: Gray
• Application: High Limit, Manual Reset
• Compatible With: Hot Water, Hydronic Heating Systems
• Certifications: UL Component Recognized (MP466, Vol. 6, Sec.1, Guide No. MBPR2), CSA Certified (LR95329-1), AGA Certified
• Differential Temperature: Manual Reset
• Operating Temperature Minimum: 100 °F (38 °C)
• Operating Temperature Maximum: 200 °F (93 °C)
• Electrical Rating Full Load: 8 A @ 120 V AC, 5.1 A @ 240 V AC
• Electrical Rating Locked Rotor: 48 A @ 120 V AC, 30.6 A @ 240 V AC
• Electrical Rating Millivolt: 0.25 A @ 0.25 to 12 V DC
• Switch Action: Contacts Break on Temperature Rise
• Switch Type: SPST, Micro Switch Snap-Acting
• Well Spud Size: 1/2 inch 14 NPT (13 mm 14 NPT)
• Insulation Depth: 3 inch
• Capillary Length: 3 inch
• Bulb Diameter: 3/8 inch (10 mm)
• Bulb Length: 2 7/8 inch (73 mm)
• Bulb Material: Copper (Cu)
• Product Height: 5.63 inch (143 mm)
• Product Width: 2 inch (51 mm)
• Ambient Temperature Maximum: 150 °F (66 °C)
• Mounting Type: Horizontal/Vertical
• Category: Direct-Immersion Thermowell
• Product Category: Thermostats & Controllers
• Product Subcategory: Direct-Immersion Thermowell
• Voltage Rating: 120 to 240 V AC / 0.25 to 12 V DC
