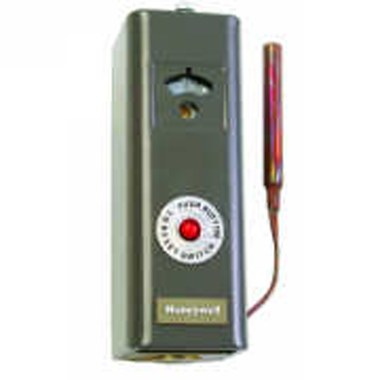

Resideo L4006E1117/U Aquastat High Limit 100-240 Degrees Fahrenheit Manual Reset Horizontal or Vertical

Product Description

The Resideo L4006E1117/U is an aquastat high limit controller that manages temperature effectively in various heating applications. It supports a temperature range of one hundred to two hundred forty degrees Fahrenheit. This device is suitable for both horizontal and vertical mounting, adding to its flexibility in different settings. The manual reset feature enhances safety by ensuring operators reset the device after activation.

• Temperature range: 100-240 degrees Fahrenheit
• Manual reset function for safety
• Allows for horizontal or vertical installation

Product Highlights

The L4006E1117/U is ideal for use in boilers, water heaters, and HVAC systems. It prevents overheating and secures equipment from operational risks.

Product Information

Standard Information

• Brand: Resideo
• Product Type: High Limit Controller

Technical Specifications

• Voltage: 5.1A at 240VAC
• Temperature Range: 100-240 degrees Fahrenheit
• Switching Action: SPST Contacts Break on Temperature Rise
• Mounting: Horizontal or Vertical
• Length: 2-1/8 inches
• Width: 2 inches
• Height: 5-5/8 inches
• Shipping Weight: 3.000 lbs
