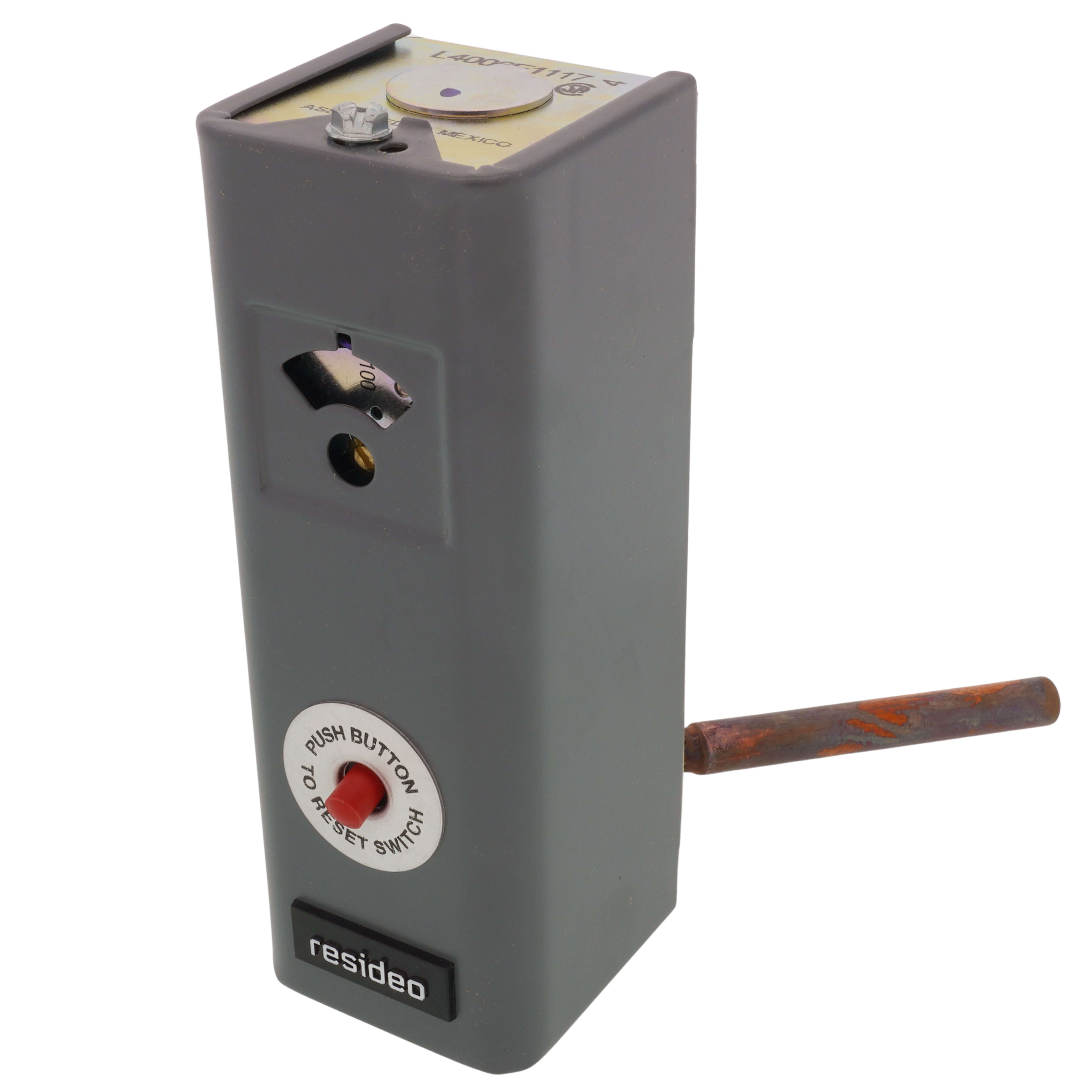

Resideo L4006E1117 High Limit Manual Reset Aquastat Controller 100 F to 240 F

Product Description

The Resideo L4006E1118 High Limit Manual Reset Aquastat Controller efficiently manages the temperature in boilers and storage tanks. Ideal for professionals in the heating maintenance field, this device ensures liquids do not exceed the desired temperature.

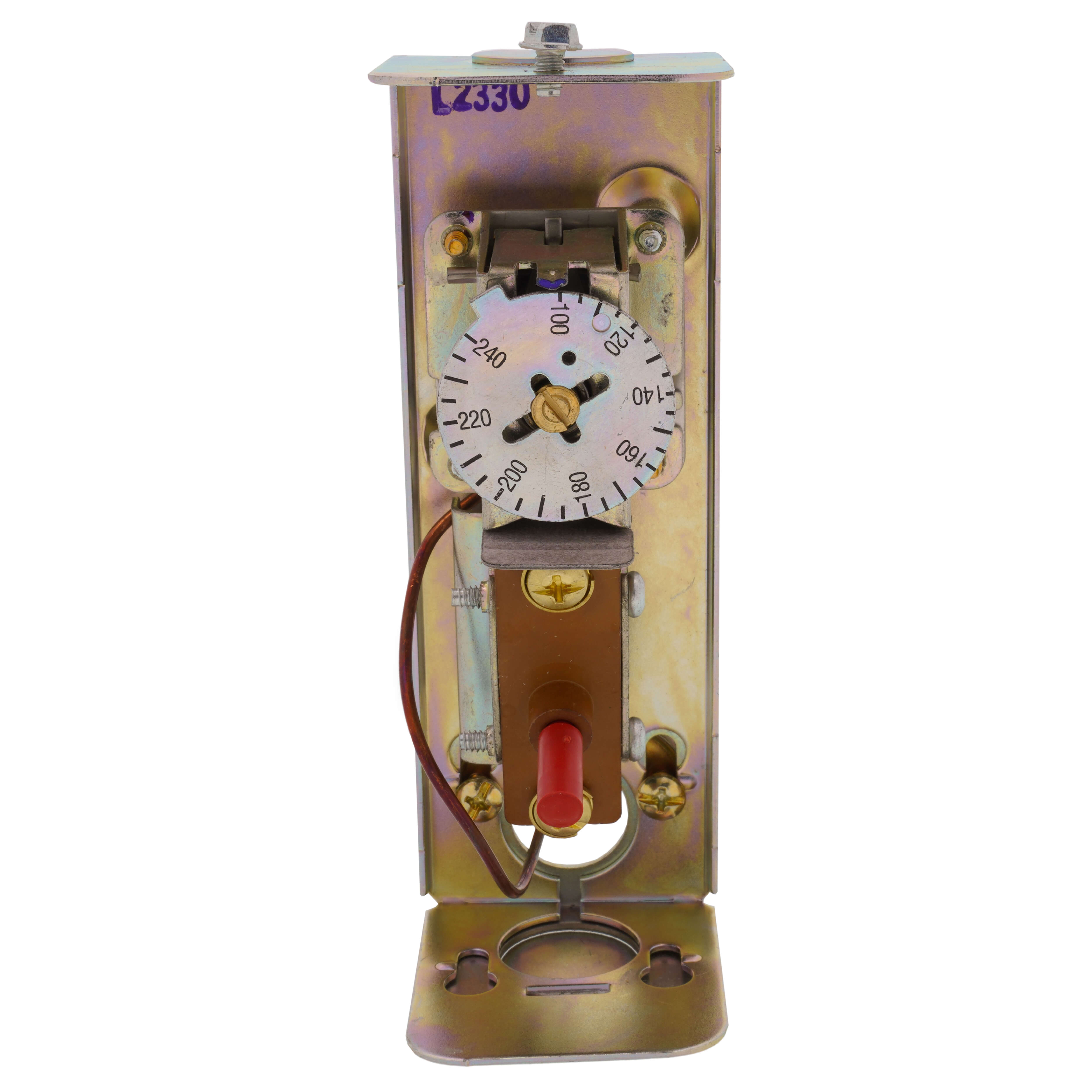

• Easy setting with visible control point scale and external adjustment screw.
• Suitable for both horizontal and vertical insertion of the sensing element.

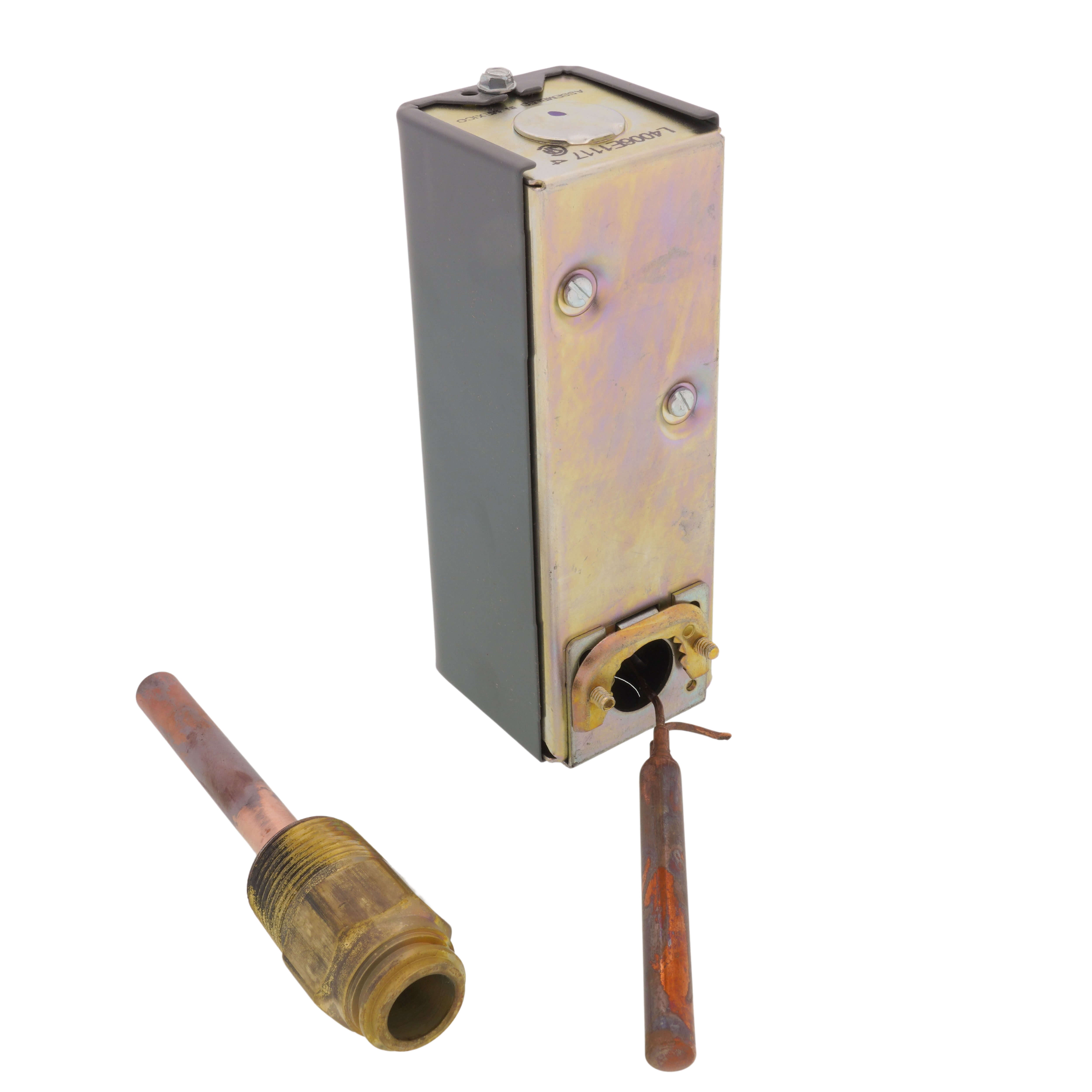

• Direct and well immersion capability enhances versatility.

Product Highlights

This fully enclosed unit with Micro Switch snap-acting switches is reliable and safety-focused, operating on temperature rise to a set point.

Product Information

Standard Information

• Category: Heating Supplies & Parts
• Application: Boilers, storage tanks

Technical Specifications

• Temperature Range: 100°F to 240°F
• Switch Type: SPST, breaks on temperature rise
• Mounting Options: Horizontal or Vertical
• Bulb Size: 3/8 inch by 2-7/8 inches
• Capillary Length: 1-1/2 inches to 3 inches
• Control Type: Manual reset
