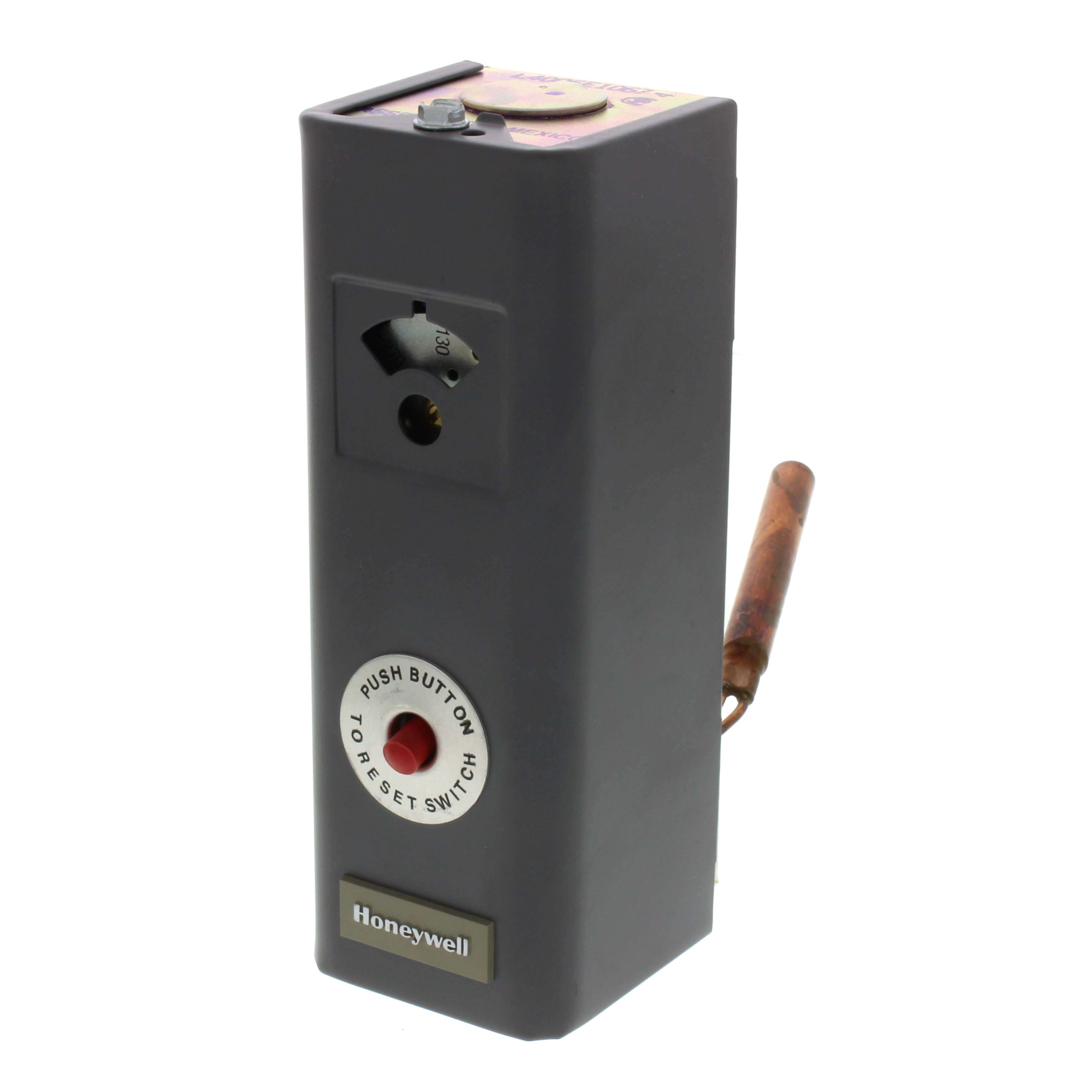

Resideo L4006E1067 High Limit Aquastat 130 to 270 Degree Fahrenheit Range Manual Reset

Product Description

The Resideo L4006E1067 High Limit Aquastat provides reliable temperature control for boilers, storage tanks, and other hydronic applications. It features a temperature range of 130 to 270 degrees Fahrenheit and includes a manual reset function for high limit applications.

• Temperature range from 130 to 270 degrees Fahrenheit
• Manual reset for safety and control
• Applicable for boilers and storage tanks

Product Highlights

This controller comes with a heat-conductive compound and a factory-set stop at 250 degrees Fahrenheit. It is UL limit rated and can be mounted horizontally or vertically, ensuring versatile installation.

Product Information

Standard Information

• Brand: Resideo
• Model: L4006E1067

Technical Specifications

• Temperature Control Range: 130 to 270 degrees Fahrenheit
• Manual Reset: Yes
• Mounting Options: Horizontal or Vertical
• Dimensions: Width 2 inches, Height 5-5/8 inches
• Electrical Ratings: 0.25 A at 0.25 to 12 Vdc, 8A at 120 Vac, 5.1A at 240 Vac
